ZeeVee Uncompressed 4K Copper Decoder - Z4KDECC3XS

Product Overview

The ZeeVee Z4KDECC3XS ZyPer4K-XS is a 10Gbps copper AV-over-IP decoder that delivers uncompressed 4K/60 4:4:4 video to displays over standard Cat6a cabling up to 100 meters. Built for commercial AV integrators deploying SDVoE-based video distribution in conference rooms, boardrooms, and digital signage networks, it operates at zero-frame latency with no compression introduced at any point in the signal chain. As part of ZeeVee's ZyPer4K-XS family, the Z4KDECC3XS is fully compatible with full-size ZyPer4K encoders and decoders, allowing it to serve as a cost-effective display endpoint in enterprise-scale AV-over-IP systems. Centralized management is handled through ZeeVee's ZyPer Management Platform.

Product Description

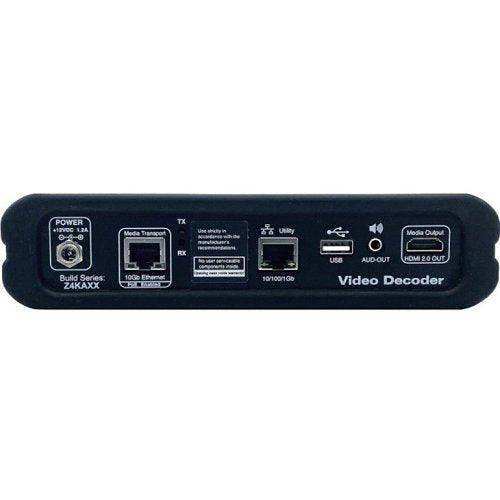

The Z4KDECC3XS receives uncompressed 4K video streams over a standard managed 10Gbps copper network and outputs the decoded signal via HDMI 2.0 to connected displays. Cat6a cabling to 100 meters makes this decoder straightforward to deploy in standard commercial construction — no fiber optic terminations, SFP modules, or specialized cabling contractors required. HDCP 2.2 is supported end-to-end for protected content distribution. Eight channels of LPCM digital audio pass through via HDMI, and a 3.5mm unbalanced stereo output provides analog audio breakout at the display location. USB 2.0 extension between ZyPer4K-XS and ZyPer4K-XR devices enables peripheral sharing for conferencing and collaboration room deployments. Video wall configurations up to 15x15 are supported, and multiview layouts of up to 19 simultaneous sources are available for control room and monitoring applications. The Z4KDECC3XS consumes approximately 8W, making it practical for large-scale endpoint deployments powered from 10Gbps PoE-capable switches where applicable.

Key Features

• Uncompressed 4K/60 4:4:4 Decoding — Zero-frame latency, full-bandwidth 4K video output with no compression in the signal path.
• 10Gbps Copper (Cat6a) Interface — Connects over standard Cat6a up to 100 meters, compatible with typical commercial construction cabling infrastructure.
• HDMI 2.0 Output with HDCP 2.2 — Direct connection to 4K displays with full HDCP pass-through compliance.
• Up to 8-Channel LPCM Audio — Multi-channel digital audio over HDMI for auditorium, boardroom, and multi-zone deployments.
• Analog Audio Output (3.5mm) — Unbalanced stereo breakout for local audio distribution without additional DSP hardware.
• USB 2.0 Extension — Peripheral sharing between ZyPer4K-XS and XR endpoints for conferencing rooms and collaboration spaces.
• Video Wall Support (Up to 15x15) — Acts as a decoder node in large-format video wall configurations managed via ZMP.
• Multiview Up to 19 Sources — Display multiple simultaneous source windows for NOC, control room, or monitoring environments.
• AES-128 Encryption & 802.1X Authentication — Enterprise security for video distribution over shared IP networks.
• ZyPer4K Ecosystem Compatible — Interoperates with full-size ZyPer4K encoders for phased and mixed deployments.
• Low Power (~8W) — Efficient design for distributed installations at scale.
• 3-Year Warranty — Commercial warranty coverage from ZeeVee.

Typical Applications

• Conference room and boardroom display endpoints
• Digital signage distribution over structured copper cabling
• Command center and NOC video wall decoder nodes
• Higher education classroom and lecture hall displays
• Hospitality and hotel in-room display distribution
• Healthcare facility patient and staff display systems
• Retail and corporate lobby digital signage

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What cabling does the Z4KDECC3XS require?

The Z4KDECC3XS requires Cat6a cabling rated for 10Gbps transmission. Standard Cat6a structured cabling up to 100 meters is supported.

Does this decoder require a proprietary switch?

No. The Z4KDECC3XS works with any standard managed 10Gbps Ethernet switch with IGMP snooping and multicast support configured.

Is the Z4KDECC3XS compatible with full-size ZyPer4K encoders?

Yes. It is fully interoperable with full-size ZyPer4K encoders on the same ZMP-managed network.

Can this decoder be used in a video wall?

Yes. Each Z4KDECC3XS decoder can participate in video wall configurations up to 15x15 when managed through ZeeVee's ZyPer Management Platform.

Is USB extension supported with this decoder?

USB 2.0 extension is supported between ZyPer4K-XS and ZyPer4K-XR devices only — not between XS and full-size ZyPer4K units.

What security is supported?

The decoder supports AES-128 encryption, HDCP 2.2 display compliance, and 802.1X network port authentication.

What is the warranty?

ZeeVee provides a 3-year limited warranty on the Z4KDECC3XS.
