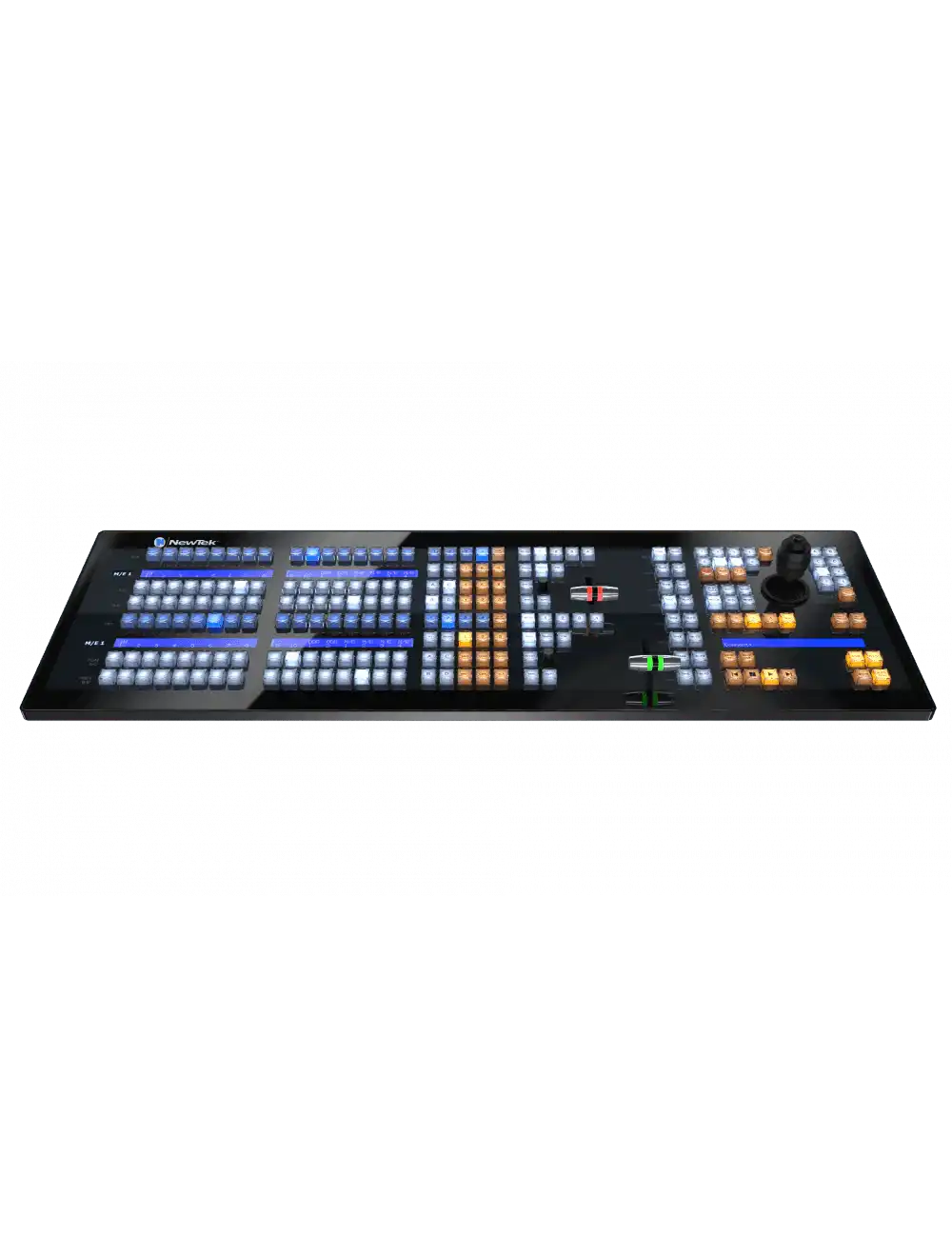

Vizrt 2-Stripe Control Panel for TriCaster TC1

Vizrt SKU: FG-001939-R001
No reviews

Sale price$12,495.00

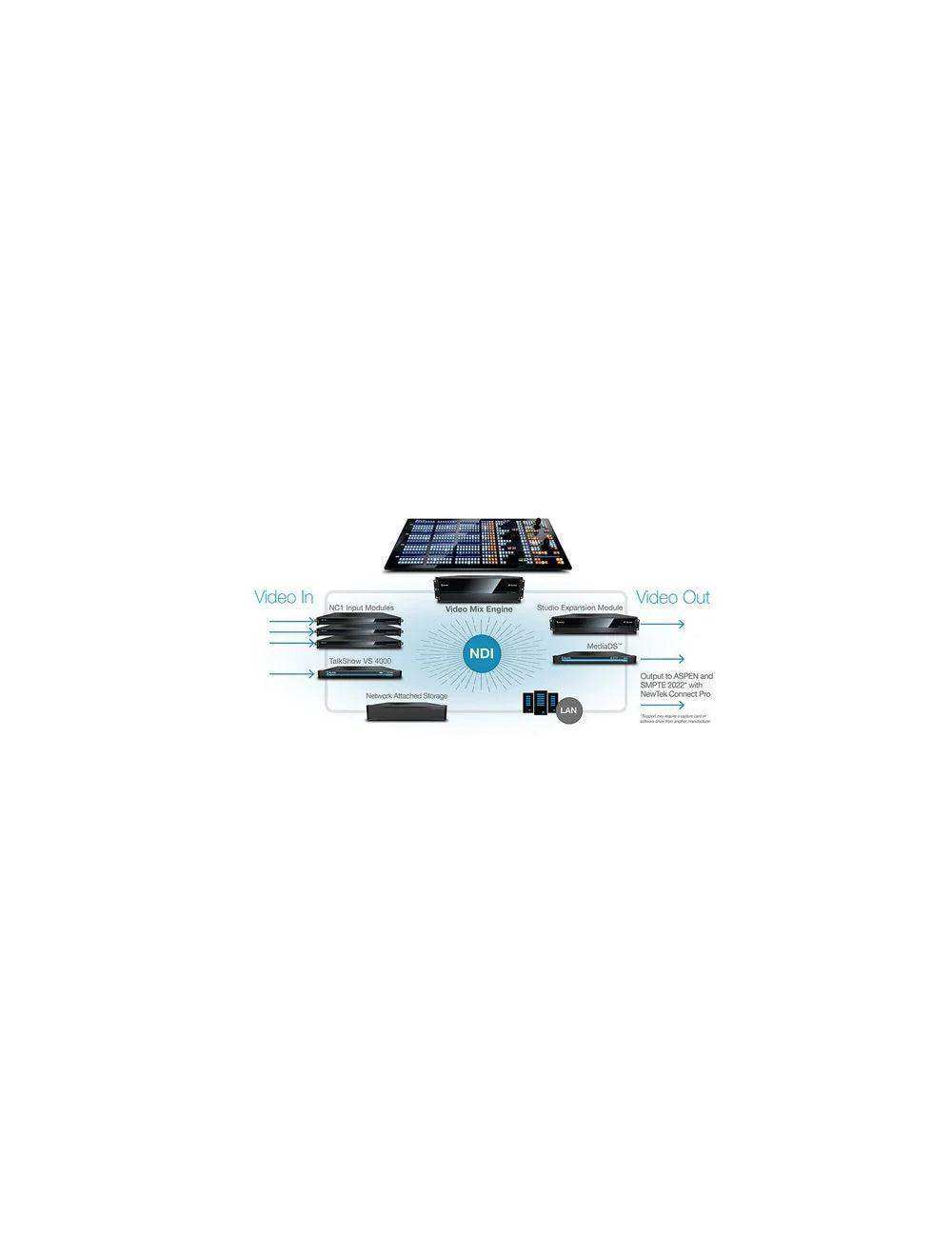

The Newtek 2-Stripe Control Panel is designed for use with the TriCaster TC1, TriCaster 1 Pro, and TriCaster 2 Elite. It features IP-based connectivity, with support for multi-engine control over the network. The NewTek IP Series Control Panels connect you to the systems, devices, software, and sources that form your interconnected production environment. Pairing the 2-Stripe Control Panel with the Video Mix Engine across your network, you have consummate control of the most sophisticated productions under the most demanding of circumstances.

NewTek IP Series Control Panels combine the comprehensive functionality, precision controls, premium hardware mechanics, and ergonomic design that operators demand with the visually arresting aesthetic that executives covet.

Combining SDI compatibility, IP flexibility, 4K UHD capacity, and support for virtualization, the NewTek IP Series integrates into your current infrastructure, while priming your facility for the future. Its forward-thinking technology, seamless integration of turnkey capabilities, and modular architecture ensure that your workflow and productions keep pace with your vision for storytelling, even in the face of a rapidly changing video landscape.

Newtek IP Series 2-Stripe Features:
•Responsive, multi-bus operation of any Video Mix Engine on the network with independently assignable control stripes
•Intuitive, multi-source video mixing with dynamic LCD label displays and per-stripe access to all Video Mix Engine crosspoints via delegate banks
•Decisive, manual control of multiple functions with multi-mode T-bars supporting variable illumination, and multi-purpose 3-axis joysticks
•Inclusive command of real-time video operations, including convenient, fingertip access to media, COMPs, MEMs, and macros

Other Features:
•Transition gradually or migrate immediately to IP-based and virtualized production workflows with incredibly practical infrastructure and bandwidth requirements
•Remove the physical and logistical barriers limiting your potential to expand, grow, and evolve
•Future-proof your video operations with progressive technology independent of formats and resolutions
•Redefine your productions, workflows, and business now and for years to come
•Align legacy and contemporary technologies across a simplified infrastructure to maximize resources and investments
•Establish a production network in your control room or across your facility, connecting systems, users, and departments
•Link multiple locations over IP to create sophisticated multi-system, multi-site workflows
•Explore unprecedented opportunities to advance every facet of your production with the capacity for virtualization

    In the box Vizrt 2-Stripe Control Panel
    Limited 1-Year Warranty

    2 x panel stripes independently configurable for switcher, M/E, PREVIZ, or matrix router operation

    •Dynamic LCD crosspoint label displays
    •Support for bank, layer, and key delegation
    •Support for multi-engine control

    Crosspoints 64 x crosspoints per stripe (16 buttons with 4 delegate banks)
    COMPs Direct panel access to VMC1 Video Mix Engine COMP Bin presets
    Macro Macro mode and number pads supporting attachment and activation of user-configured macros
    Media 1x media player control keypads with player delegation and command buttons
    MEM Direct panel access to VMC1 Video Mix Engine switcher and M/E MEMs

    2x multi-mode T-Bars (1 per stripe) with dynamically variable illumination and support for BKGD video layer and key layer delegation

    •Fade to Black
    •LiveSet™ Zoom


    1x multi-mode joysticks (3-axis) supporting stripe, layer, and key delegation Position/Scale

    •LiveSet virtual camera control
    •PTZ camera control
    •Media player shuttle

    NIC 1 Gigabit NIC
    Physical 35.7 x 11.96 x 5.0 in (90.7 x 30.4 x 12.7 cm)
