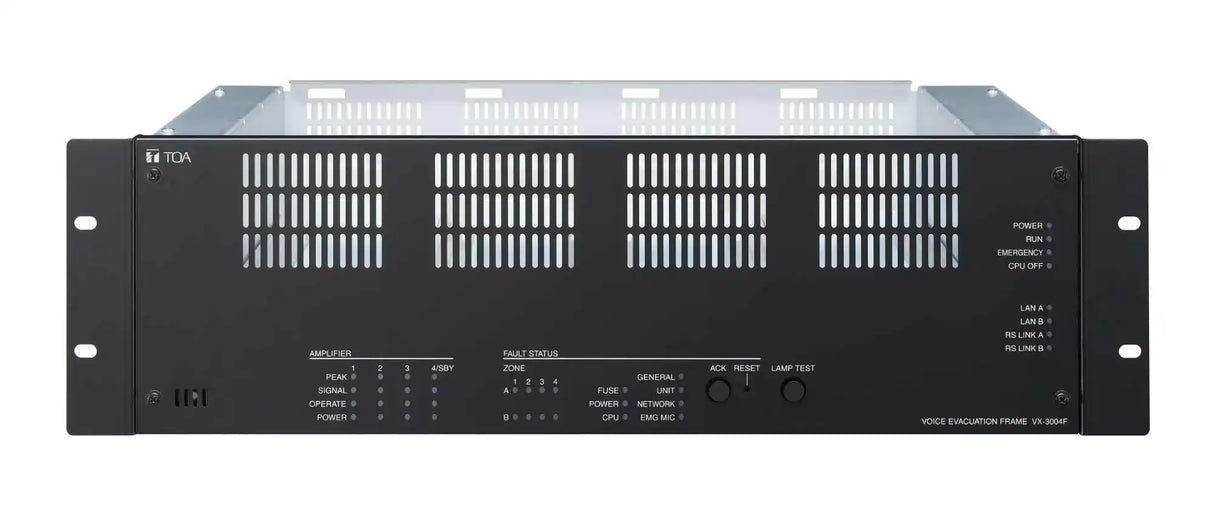

TOA Electronics Voice Alarm System Frame - VX-3004F AMQ
Regular price
$3,636.00
Sale price
$2,938.00
Unit price
/
Unavailable
Shipping calculated at checkout.
TOA | SKU:
VX-3004F AMQ
TOA Electronics Voice Alarm System Frame - VX-3004F AMQ is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
TOA Electronics Voice Alarm System Frame - VX-3004F AMQ
Regular price
$3,636.00
Sale price
$2,938.00
Unit price
/
Unavailable
Features include the following functions: Digital signal processing function that enables appropriate acoustic adjustment for individual input sound sources and output areas, Feedback suppressor function that automatically suppresses acoustic feedback when it occurs, VOX function that allows start/stop control of broadcast by way of an audio trigger, and ANC function that enables an ambient noise control. (The ANC function distinguishes between the unit's output sound and the ambient noise. The unit's output sound is not detected as noise.) Indicators that show such statuses as fault status and power amplifier signal status are provided. It has 4 speaker output channels, each of which is provided with A and B lines to enable duplication of the speaker lines. Up to 4 power amplifier modules can be mounted. The 4-channel amplifier can be used either for zone output or standby use. As the VX-3004F is equipped with Standby amplifier input/output terminal, the standby amplifier, when mounted, can be shared among VX-3000F units.
Features
- Up to 4 amps (1 zone - 1 amp, 4 AB-zones or 3 AB zones + standby amp)
- All mandatory indications by EN54-16
- Status indication for each speaker line
- Fault acknowledge and lamp test button
- Input DSP: flexible filtertypes and compressor
- Output DSP: flexible filtertypes, compressor and delay up to 2.7 sec.
Specs
Power Source
20 - 33 V DC, removable terminal block (4 pins)
Power Consumption
24 W (frame only) at 33V DC input, 90 W (RS Link: 2 A output) at 33 V DC input
LAN A, B
Number of Connectors: 2 (LAN A, LAN B)
Network I/F: 100BASE-TX
Network Protocol: TCP, UDP, ARP, ICMP, RTP, IGMP, FTP, HTTP, NTP
Spanning tree Protocol: RSTP
Audio Transmission System: TOA Packet Audio(*1)
Audio Encoding Method: PCM
Audio Sampling Frequency: 48 kHz
Audio Quantifying Bit number: 16 bits
Connection Device: VX-3004F, VX-3008F, VX-3016F, NX-300, and Switching HUB
Connector: RJ45 connector
Connection Cable: Category 5 twisted pair cable (CAT 5) or greater
Number of Stages of Cascade connection: Up to 7
Maximum Cable Distance: 100m (328.08 ft)
Network I/F: 100BASE-TX
Network Protocol: TCP, UDP, ARP, ICMP, RTP, IGMP, FTP, HTTP, NTP
Spanning tree Protocol: RSTP
Audio Transmission System: TOA Packet Audio(*1)
Audio Encoding Method: PCM
Audio Sampling Frequency: 48 kHz
Audio Quantifying Bit number: 16 bits
Connection Device: VX-3004F, VX-3008F, VX-3016F, NX-300, and Switching HUB
Connector: RJ45 connector
Connection Cable: Category 5 twisted pair cable (CAT 5) or greater
Number of Stages of Cascade connection: Up to 7
Maximum Cable Distance: 100m (328.08 ft)
RS Link A, B
Number of Connectors: 2 (RS LINK A, RS LINK B)
Audio input level; 0 dB (*2)
Power feed: Max. 1 A per connector
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5-STP) or greater
Maximum cable distance: 1200 m (3937.01 ft)
Audio input level; 0 dB (*2)
Power feed: Max. 1 A per connector
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5-STP) or greater
Maximum cable distance: 1200 m (3937.01 ft)
DS Link
Connection Device: DS LINK of Power supply units
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5-STP)
Maximum Cable Distance: 5 m (16.4 ft)
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5-STP)
Maximum Cable Distance: 5 m (16.4 ft)
Analog Link
Number of Connectors: 1 input, 1 output
Connection Device: VX-3004F, VX-3008F, VX-3016F
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5-STP) or greater
Maximum Cable Distance: 800 m (2624.67 ft)
Connection Device: VX-3004F, VX-3008F, VX-3016F
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5-STP) or greater
Maximum Cable Distance: 800 m (2624.67 ft)
Audio Input 1, 2, 3, 4
4 inputs
Sensitivity
Line: -20 dB(*2)/ MIC: -60 dB(*2)
LINE/MIC/ANC sensor (changeable with setting software)
Gain Control: volume adjustable with volume control (internal front panel) -∞ to 0 dB
Input Impedance: 47kΩ electronically-balanced
Frequency Response: 40 Hz - 20 kHz ±1 dB (at DA CONTROL LINK, 0 dB output)
Distortion: 1% or less (at DA CONTROL LINK, 0 dB output, 1 kHz)
Signal to Noise Ratio: 60 dB or more (at DA CONTROL LINK, A-weighted)
Phantom Power Supply: 24 V DC, can be set with setting software
Connector: Removable terminal block (6 pins): 2
Sensitivity
Line: -20 dB(*2)/ MIC: -60 dB(*2)
LINE/MIC/ANC sensor (changeable with setting software)
Gain Control: volume adjustable with volume control (internal front panel) -∞ to 0 dB
Input Impedance: 47kΩ electronically-balanced
Frequency Response: 40 Hz - 20 kHz ±1 dB (at DA CONTROL LINK, 0 dB output)
Distortion: 1% or less (at DA CONTROL LINK, 0 dB output, 1 kHz)
Signal to Noise Ratio: 60 dB or more (at DA CONTROL LINK, A-weighted)
Phantom Power Supply: 24 V DC, can be set with setting software
Connector: Removable terminal block (6 pins): 2
Audio Input
16 inputs, no-voltage make contact input, open voltage: 24 V DC; short-circuit current: 2 mA Fault Detection System: Short circuit, Open circuit; Method: Voltage detect; Connector: RJ45 connector
Control Input 1, 2
16 inputs , no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 2 mA
Fault Detection System: Short circuit, Open circuit, Method: Voltage detect
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5_STP) or greater
Fault Detection System: Short circuit, Open circuit, Method: Voltage detect
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5_STP) or greater
Emergency Control IN
Input 2: Isolated voltage input, -24 to +24 V
Connector: RJ45 connector
Connection Cable: Category 5 twisted pair cable (CAT5) or greater
Connector: RJ45 connector
Connection Cable: Category 5 twisted pair cable (CAT5) or greater
VOX Function
Threshold: –60 to 0 dB (1 dB steps)
Hysteresis: 0 to +10 dB; Hold time: 10 ms – 10 s
Settable for each audio input
Hysteresis: 0 to +10 dB; Hold time: 10 ms – 10 s
Settable for each audio input
Control Output 1, 2
General outputs : 8 with CONTROL OUTPUT 1
Exclusive outputs : 3 with CONTROL OUTPUT 2; GENERAL FAULT, CPU FAULT, CPU OFF
No-voltage make contact, electrical contact output, control current: 10 mA ; withstand voltage: 28 V DC
Connector: RJ45 connector
Connection cable: Shielded Category 5 twisted pair cable (CAT5-STP)- or greater
Exclusive outputs : 3 with CONTROL OUTPUT 2; GENERAL FAULT, CPU FAULT, CPU OFF
No-voltage make contact, electrical contact output, control current: 10 mA ; withstand voltage: 28 V DC
Connector: RJ45 connector
Connection cable: Shielded Category 5 twisted pair cable (CAT5-STP)- or greater
ATT/Control Output
8 outputs, no-voltage make contact, relay contact (NC, NO, C), control current: 2 mA to 5 A; withstand voltage: 125 V AC, 40 V DC
Connector: Removable terminal block (12 pins) x 2
Connector: Removable terminal block (12 pins) x 2
Digital Signal Processing
Feedback Suppressor (FBS)
7 filters (auto)
Settable for each audio input and RS LINK (A/B)
Settable for each audio input and RS LINK (A/B)
Equalizer/Filter
3 bands for each audio input and RS LINK (A/B),
6 bands for each amplifier output
Parametric equalizer: 20 Hz - 20kHz, ±15 dB, Q 0.267 - 69.249
Filtering:
High-pass filter 20- Hz - 20 kHz, 6 dB/oct, 12 dB/oct
Low-pass filter 20- Hz - 20 kHz, 6 dB/oct, 12 dB/oct
High shelving filter 6 - 20 kHz, ±15 dB
Low shelving filter 20 - 500 kHz, ±15 dB
Notch filter (amplifier output only) 20 Hz - 20 kHz, Q: 8.651 - 69.249
All-pass filter (amplifier output only) 20 Hz - 20 kHz, Q: 0.267 - 69.249
Horn equalizer (amplifier output only) 20 kHz, 0 to +18 dB (0.5 dB steps)
6 bands for each amplifier output
Parametric equalizer: 20 Hz - 20kHz, ±15 dB, Q 0.267 - 69.249
Filtering:
High-pass filter 20- Hz - 20 kHz, 6 dB/oct, 12 dB/oct
Low-pass filter 20- Hz - 20 kHz, 6 dB/oct, 12 dB/oct
High shelving filter 6 - 20 kHz, ±15 dB
Low shelving filter 20 - 500 kHz, ±15 dB
Notch filter (amplifier output only) 20 Hz - 20 kHz, Q: 8.651 - 69.249
All-pass filter (amplifier output only) 20 Hz - 20 kHz, Q: 0.267 - 69.249
Horn equalizer (amplifier output only) 20 kHz, 0 to +18 dB (0.5 dB steps)
Compressor
Threshold: -20 to 0 dB (1 dB steps)
Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 5:1, 7:1, 8:1, 10:1, 12:1, 20:1, ∞:1
Attack time: 0.2 ms - 5 s, Release time: 10 ms - 5 s
Gain: -∞ to +10 dB, Knee type: hard knee, middle knee, soft knee
Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 5:1, 7:1, 8:1, 10:1, 12:1, 20:1, ∞:1
Attack time: 0.2 ms - 5 s, Release time: 10 ms - 5 s
Gain: -∞ to +10 dB, Knee type: hard knee, middle knee, soft knee
Delay
For each amplifier output, 0 - 2730 ms (0.021 ms steps)
ANC (Ambient Noise Control)
Amplifier output level control, Automatic sensor input reference level measuring, Sensor input reference level fine adjustment Maximum output signal level control: -15 to 0 dB
Minimum output signal level control: -18 to -3 dB
Sample time setting: 10 s, 20 s, 30 s, 1 min, 5 min
Gain ratio setting: (Ambient noise: Output signal level) 6:3, 5:3, 4:3, 3:3, 3:4, 3:5, 3:6
Ambient noise measuring frequency setting: 20 Hz - 20 kHz, 3 points
Minimum output signal level control: -18 to -3 dB
Sample time setting: 10 s, 20 s, 30 s, 1 min, 5 min
Gain ratio setting: (Ambient noise: Output signal level) 6:3, 5:3, 4:3, 3:3, 3:4, 3:5, 3:6
Ambient noise measuring frequency setting: 20 Hz - 20 kHz, 3 points
Program Timer
Weekly program method; Daily program: 50 events, 10 types; Holiday program: 50 types
Time Adjustment
Control input, NTP
Speaker Line
4 channels (with AB LINE speaker out) 1 Earth terminal
Max. Voltage/Current: 100 VRMS, 5 ARMS Connector: Removable terminal block (17 pins) x 1; Fault detection system: Short circuit, Open circuit, Ground fault, Method: Impedance or End of line
Max. Voltage/Current: 100 VRMS, 5 ARMS Connector: Removable terminal block (17 pins) x 1; Fault detection system: Short circuit, Open circuit, Ground fault, Method: Impedance or End of line
Standby Amplifier Input/Output
Input: 1, Output: 1
Max. Voltage/Current: 100 VRMS, 5 ARMS
Connector: Removable terminal block (2 pins) x 2
Max. Voltage/Current: 100 VRMS, 5 ARMS
Connector: Removable terminal block (2 pins) x 2
Module Slot
Number of modules: 4
DA CONTROL LINK: 4
DA OUTPUT LINK: 4 (Used only when a power amplifier module is installed)
DA CONTROL LINK: 4
DA OUTPUT LINK: 4 (Used only when a power amplifier module is installed)
Indicators
POWER (green): 1, RUN (green): 1, EMERGENCY (red): 1, CPU OFF (red): 1, LAN A (green): 1, LAN B (green): 1, RS LINK A (green):1, RS LINK B (green):1
FAULT STATUS (yellow)
GENERAL: 1, UNIT: 1, NETWORK: 1, EMG MIC: 1, FUSE: 1, POWER: 1, CPU: 1, ZONE: 8
AMPLIFIER
PEAK (red): 4, SIGNAL (green): 4, OPERATE (green): 4, POWER (green): 4
FAULT STATUS (yellow)
GENERAL: 1, UNIT: 1, NETWORK: 1, EMG MIC: 1, FUSE: 1, POWER: 1, CPU: 1, ZONE: 8
AMPLIFIER
PEAK (red): 4, SIGNAL (green): 4, OPERATE (green): 4, POWER (green): 4
Operation
Fault control switch: 2 (ACK/RESET)
Test Switch: 1 (LAMP TEST)
Setting Switch: ID NUMBER, RESET, IMPEDANCE, Setting (internal front panel)
Test Switch: 1 (LAMP TEST)
Setting Switch: ID NUMBER, RESET, IMPEDANCE, Setting (internal front panel)
Operating Temperature
-5°C to 45°C (23°F to 113°F)
Operating Humidity
90%RH or less (no condensation)
Finish
Panel: Surface-treated steel plate, black, 30% gloss, paint
Dimensions
483 x 132.6 x 345 mm
Weight
7.6 kg
Included Accessories
Rack mounting screw: 4, Removable terminal plug ( 2 pins): 2
Removable terminal plug (4 pins): 1 , Removable terminal plug (6 pins): 2 ,
Removable terminal plug (4 pins): 1 , Removable terminal plug (6 pins): 2 ,
Removable terminal plug (12 pins): 2 , Removable terminal plug (17 pins) :1 ,
CD (PC settinq software): 1 , Ferrite clamp: 2
At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.
- Most in-stock orders placed Monday-Friday ship within 24-48 hours. General restrictions apply; please see our full shipping policy here.
- We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
