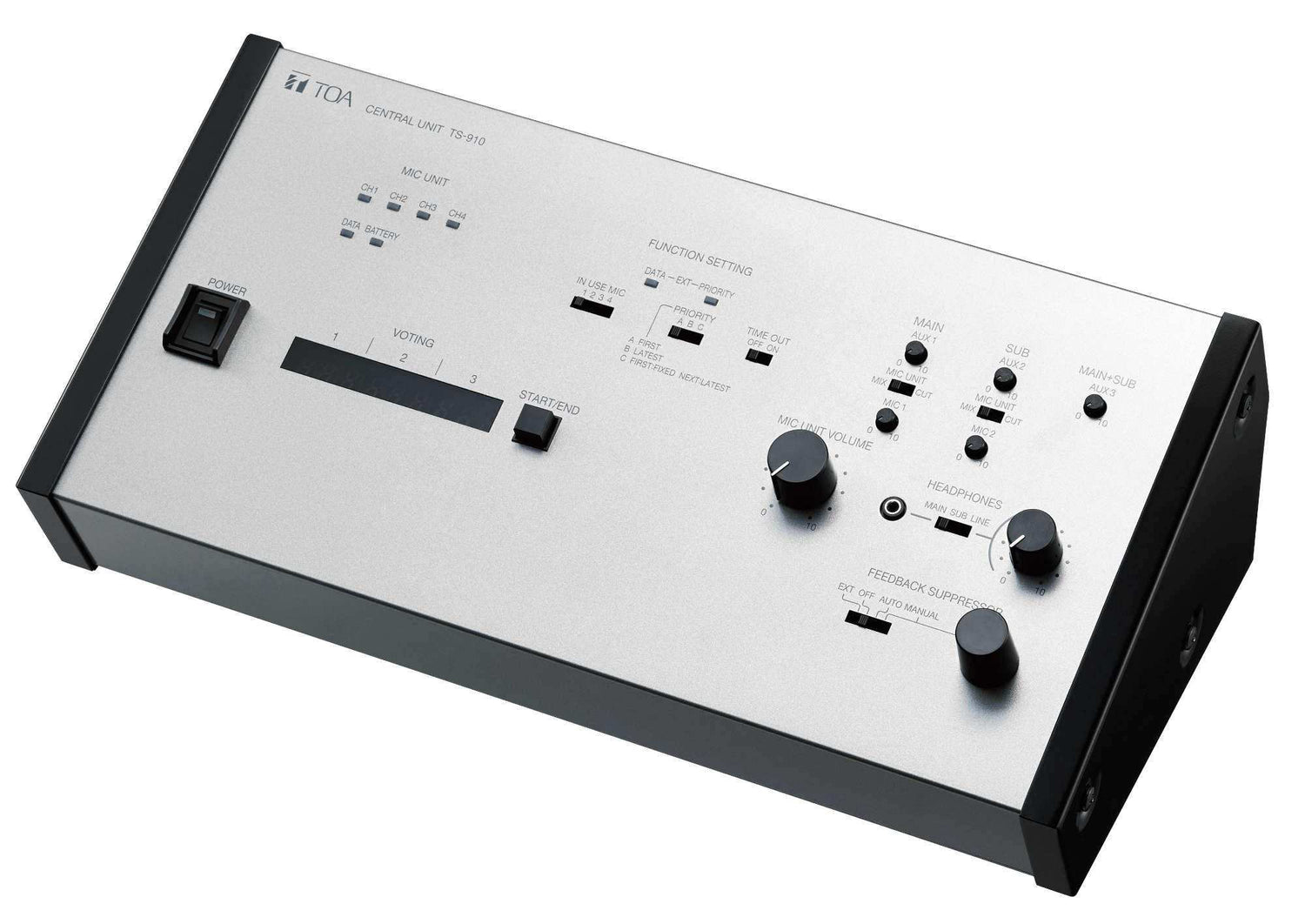

The TS-910 is a Central unit of the Integrated conference system designed for use with both the Wired and Infrared conference units in combination. Connecting to the Expansion unit and Infrared Transmitter/Receiver unit, the TS-910 can control the conference units. Up to 192 Wired and Infrared Conference units in total can be used per system. The incorporated Feedback suppressor (FBS) function helps to effectively suppress acoustic feedback. External control, voting result confirmation, and equipment installation confirmation can be performed on a PC.
Also, 2 channels of audio signal lines are provided for base language and translation language. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).
Features
- Safe and secure wirless technology
- Good coverage
- Speeches can be addressed to audience via externally interlinked sound reinforcement system
- Threefold choice vote function for instantaneous voting and including totalisator
- Up to 192 chairman/delegate units per system
- All speeches during the conference can be recorded
- Auto Mic-Off function to prevent inadvertent microphone shutoff failure
- Speaker restriction function
Specs

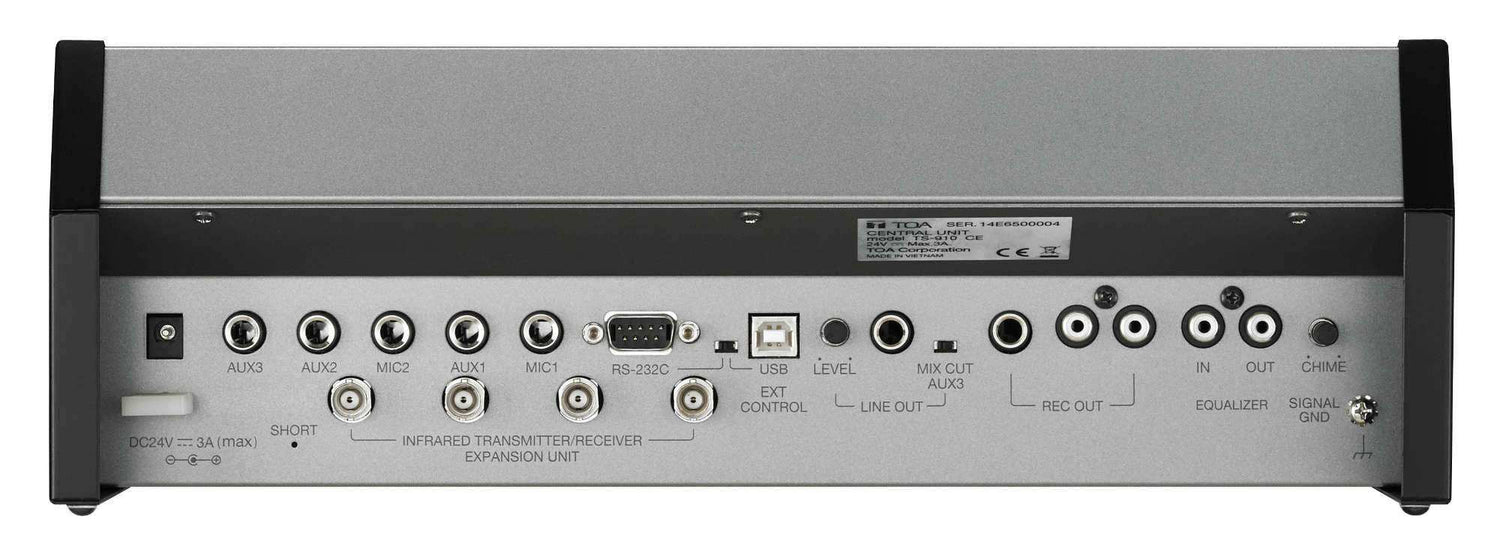

MIC 2 (Translation Language): -60 dB*, 600 Ω, unbalanced,
Ø6.3 mm phone jack (2P)
AUX 1 (Base Language): -20 dB*, 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
AUX 2 (Translation Language): -20 dB*, 10 kΩ, unbalanced,
Ø6.3 mm phone jack (2P)
AUX 3 (Base and Translation Language): -20 dB*, 10 kΩ, unbalanced,
Ø6.3 mm phone jack (2P)
REC: -20 dB*, 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P), RCA pin jack
HEADPHONES: Ø3.5 mm mini jack (3P:monaural)
Output: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
Audio signal receiving indicators 1 - 4 CH, Data signal receiving indicator,
External control priority indicator, External control communication indicator,
Battery indicator (Flashes in case of battery warning of Infrared
Conference unit), Short-circuit indicator
when they are all TS-905, and up to 12 units when they are all TS-907,
or TS-905 and TS-907 are used in combination)
Mic-off setting switch: TIME OUT ON/OFF
Speech priority selector switch: A/B/C
(A: First-in-first-out priority, B: Last-in-first-out priority,
C: Fixed for the first unit, and last-in-first-out for
the subsequent units)
FBS selector switch: External equalizer/OFF/FBS AUTO/FBS MANUAL
and 2 m (6.56 ft) detachable AC cord)…1
