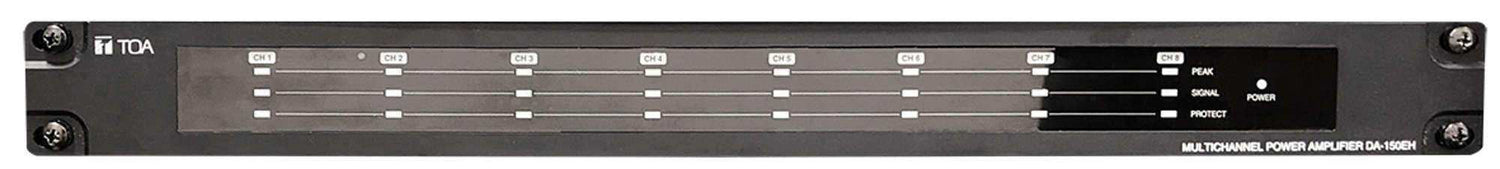

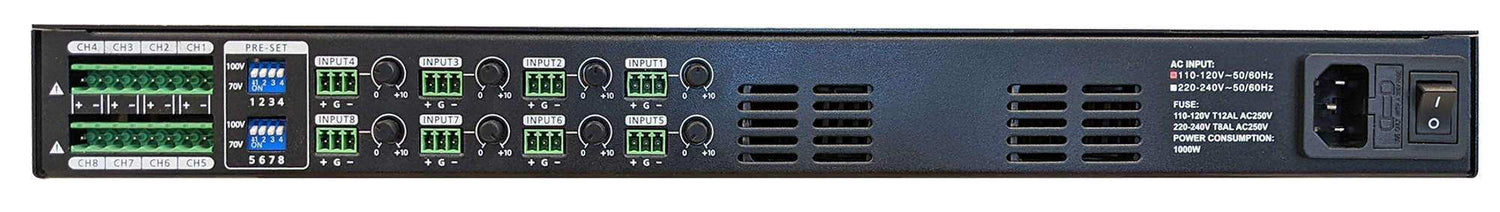

TOA Electronics Multichannel Power Amplifier - DA-150EH-AM
TOA Electronics Multichannel Power Amplifier - DA-150EH-AM
Roll over image to zoom in Click on image to zoom
TOA Electronics Multichannel Power Amplifier - DA-150EH-AM
TOA Electronics Multichannel Power Amplifier - DA-150EH-AM
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

TOA Electronics Multichannel Power Amplifier - DA-150EH-AM

TOA SKU: DA-150EH-AM 3CU
No reviews
Price:
$3,135.00 $3,879.00

Description

TOA's DA-150EH-AM Multichannel Power Amplifier features high power handling capabilities and commercial-grade durability. It has a rated output of 150 W x 8 channels (100/70V line output). It covers larger scale sound system applications where background/foreground music distributions and/or voice announcements are required in multi-zone. It can be mounted in an EIA standard equipment rack.

Power Source 110-120 V AC, 50/60 Hz Output Power 110-120 V AC, 50/60 Hz Amplification System Digital class D Power Consumption 1000 W Input 8 circuits, 0 dBV (1 V) (input level control in maximum position), Rated Output 8 channels: 150 W x 8 (66.7 Ω (100 V)/33 Ω (70 V) Frequency Response 50 - 20,000 Hz (±3 dB) Total Harmonic Distortion < 0.1% Protection Circuit Short circuit, open circuit, thermal, excessive input, ultrasonic and RF Signal to Noise Ratio > 95 dB (A-weighted) Indicators Signal (green) x 8, Peak (red) x 8, Protect (red) x 8, Power (green) x 1 Crosstalk > 70 dB (A-weighted) Cooling Forced air cooling Operating Temperature 0°C to +40°C (32 °F to 104 °F) Finish Panel: aluminum, black, alumite Case: plated steel sheet Dimensions 483 (W) x 44 (H) x 360 (D) mm (19" x 1.7" x 14.2") Weight 7.3 kg (16.09 lbs) Included Accessories Power cord (2 m) ...1, Removable terminal plug (3 pins) ...8, Removable terminal plug (2 pins) ...8
