Description

The D-901 from TOA Electronics is a digital mixer/processor, and an ideal solution for a wide variety of installed sound applications, including audio/visual facilities, houses of worship and many others. The unit can be programmed from the front panel, or via PC control software for Windows. Settings can be stored in the unit's internal memory and can be recalled using front-panel controls.

The digital mixer can be configured with up to twelve inputs, eight buses, and eight outputs. It features all the signal processing functions necessary for sound systems that require feedback suppression, dynamics and EQ, crossovers, delays and auto-mixing. However, the exact configuration of input, output and control functions are left to the end-user. Sixteen modules are available.

  • 12-input, 8-bus, 8-output channel configuration (12 x 8 matrix) with easy operation
  • Can be expanded as application requires

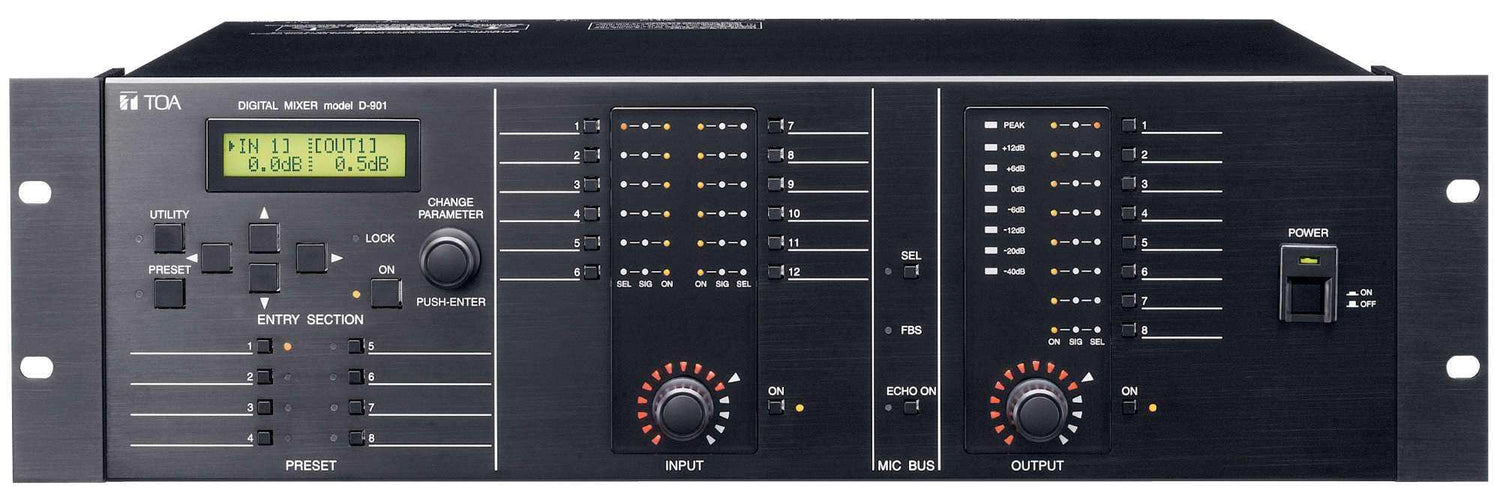

  • Convenient front panel controls and display make it easy to perform all functions and confirm
  • parameter settings without requiring a PC
  • Ability to store up to 16 sound parameter setting configurations in memory for instant recall when required
Frequency Response 20Hz to 20kHz, +/-1dB
Dynamic Range As per optional module(s)
Inputs As per optional module(s) - maximum 12 inputs
Outputs As per optional module(s) - maximum 8 outputs
Input Impedance As per optional module(s)
Output Impedance As per optional module(s)
Maximum Input Level As per optional module(s)
Maximum Output Level As per optional module(s)
Sample Rate 48kHz (digital input modules will accept 32 to 48kHz)
Phantom Power +15VDC on D-921F, D-921E, D-922F and D-922E
Crosstalk Not specified by manufacturer
THD + N As per optional module(s)
Dimensions 19" x 12.6 x 5.25" (483 x 320 x 133mm)
Weight 15.2 lbs (6.9 kg)
Specialties Includes cooling fan for reliable operation
