TOA Electronics Mixer Pre Amplifier - MM-700F-AM 3CU

Regular price $1,829.00 Sale price $1,477.00
Shipping calculated at checkout.
TOA  |  SKU: MM-700F-AM 3CU

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

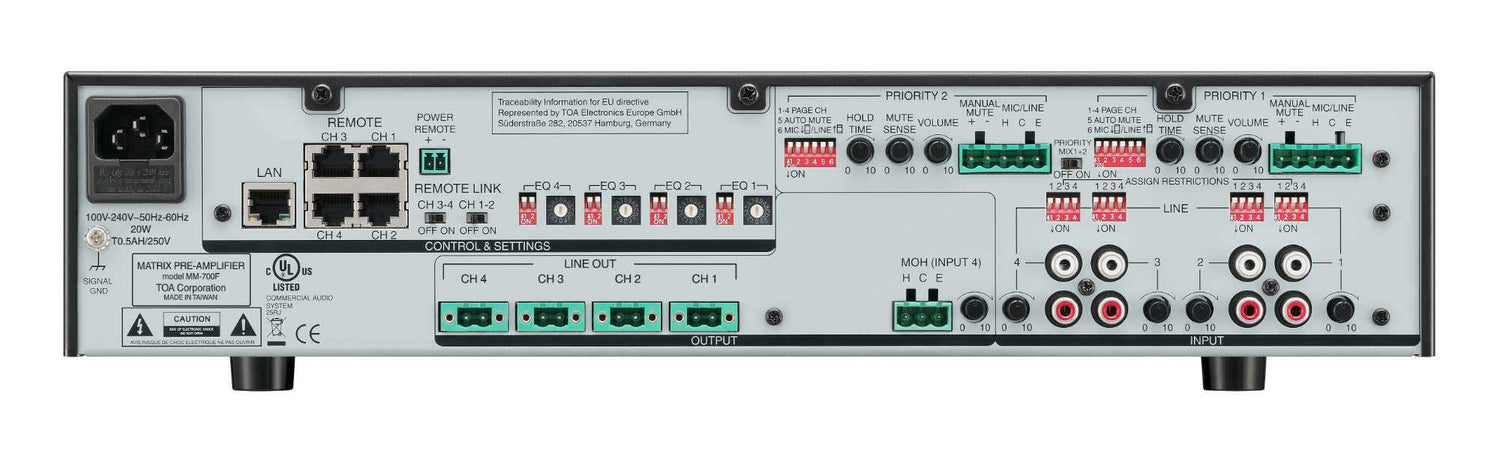

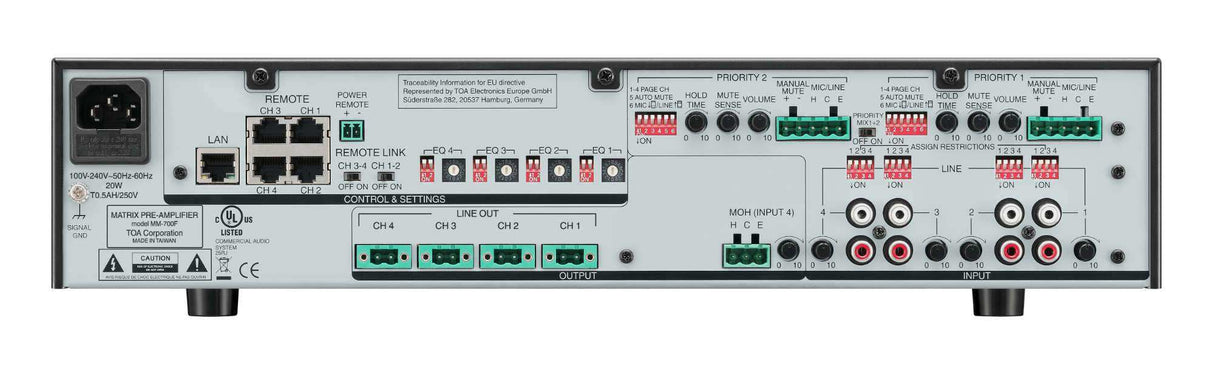

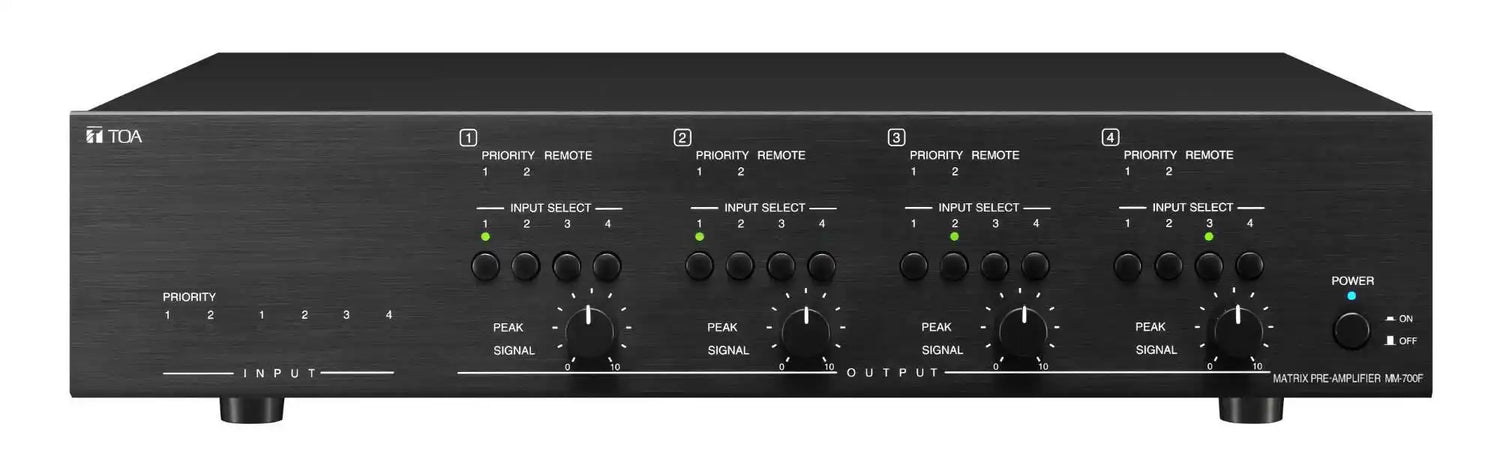

The MM-700F matrix pre amplifier performs matrix controls from 4 LINE plus 2 MIC/LINE level inputs to 4 output channels. Each output channel features 64 DSP preset selections for general equalizations, crossover for sub-woofer, or variety of TOA speakers' EQ settings. 2 MIC/LINE inputs have 1st and 2nd priority levels which can override at assigned output channels automatically or manually. If connected with optional WP-700-AM wall remotes via CAT-5 cable, audio source selection and volume controls can be done remotely. Those all assignments and setups can be done by dip switches on its rear panel without a PC.
This unit fits a wide range of applications that require multi-zone paging and/or background music distribution at restaurants, pubs, retail stores, factories, etc.

Features
  • 4 stereo-summing line inputs with matrix routing to 4 amplifier outputs.
  • Each line input has input level adjustment and assign restriction setting for each output to prevent routing selection.
  • 2 priority MIC/LINE inputs with different priority level for paging or other pre-recorded source which can override the selected line input on assigned output channels.
  • Each priority input also has input level, mute sensitivity and mute hold time adjustments.
  • Selectable DSP preset selections include general EQ s, like Loudness curves,TOA speaker EQ s and crossover settings to be used with subwoofers.
  • Each output channel also has auxiliary line output to deliver audio to other systems.
  • This matrix doesn’t need any PC programming or network connection for setup at site. (Maintenance purpose only)
  • Optional wall mount remote control, WP-700 can be connected via CAT-5 straight LAN cable to control the line input selection and output volume of each output.
