TOA Electronics Emergency Power Supply - VX-2000DS AMQ

Regular price $2,205.00 Sale price $1,782.00
Shipping calculated at checkout.
TOA  |  SKU: VX-2000DS AMQ

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

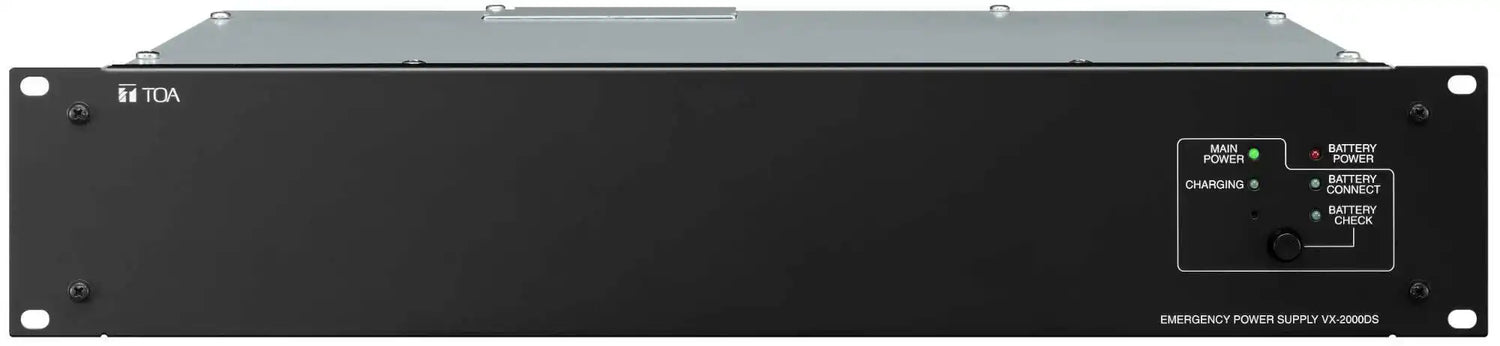

The VX-2000DS Emergency Power Supply Unit supplies DC backup power to each component in the VM-3000 system. It keeps the 2 × 12 V sealed lead batteries charged, compensating for the temperature of the battery charging voltage. When AC Power is disrupted, the VX-2000DS is automatically switched to the backup batteries.
The worlds first Voice Evacuation System complying with both American and Canadian standards UL 2572 and CAN/ULC-S576 listings.

Specs
Power Source
120 V AC, 60 Hz
Power Consumption
240 W max.
DC Power Output (AC mode)
Number of connectable equipment: Up to 3 VM-3240 AMQ, M4 screw terminal, distance between barriers: 11mm
Compatible Battery
Panasonic LC-X/LC-P Series (12 V x 2)
Charging Method
Trickle charging
Charging Current
5 A max.
Charging Output Voltage
27.3 V ±0.3 V (at 25 °C or 77 °F)
Temperature correction coefficient: –40 mV/°C
Power Supply Input
6, M4 screw terminal, distance between barriers: 11mm (0.43")
DC Power Output
6 (25 A max, each) M4 screw terminal, distance between barriers: 11 mm (0.43")t
Control Connector
RJ45 female connector for connecting the VM-3000 System
Twisted-pair straight cable (TIA/EIA-568A standard)
Type of control signal: Battery check, AC power status, DC power status, charging circuit failure, and battery failure
Battery Connection
1 pair of positive and negative terminals; Applicable cable diameter: AWG 6 – AWG 0 (AWG 1/0) (16 mm 2 – 50 mm 2) Line resistance within 4 mΩ/ total
Operating Temperature
0°C to +40°C (32 °F to +104 °F)
Finish
Panel: Surface-treated steel plate, black, 30% gloss, paint
Dimensions
82 (W) x 88.4 (H) x 377.6 (D) mm (18.98" x 3.5" x 13.29")
Weight
10.5kg (23.15 lb)
Included Accessories
Rack mounting screw (5x12) x 4, Fiber washer x 4, Blade fuse (40A) x 3, Fuse (T6.3 A L) x 1, Insulating sheet x 1, Thermal insulating sheet x 1, Power cable (2 m) x 1
Fuse Rating
Blade fuse (40 A), Blade fuse (7.5 A), fuse (7.5 A)
Internal Resistance
Maximum internal resistance of the battery and its associatetd circuitry, Ri max. 50 mΩ
Current Specification
Maximum output current draw from the battery: 43.5 A
Cable Requirements
Recommended cable parameter for DS-SF Link:
Twisted-pair straight cable (TIA/EIA-568A standard)
