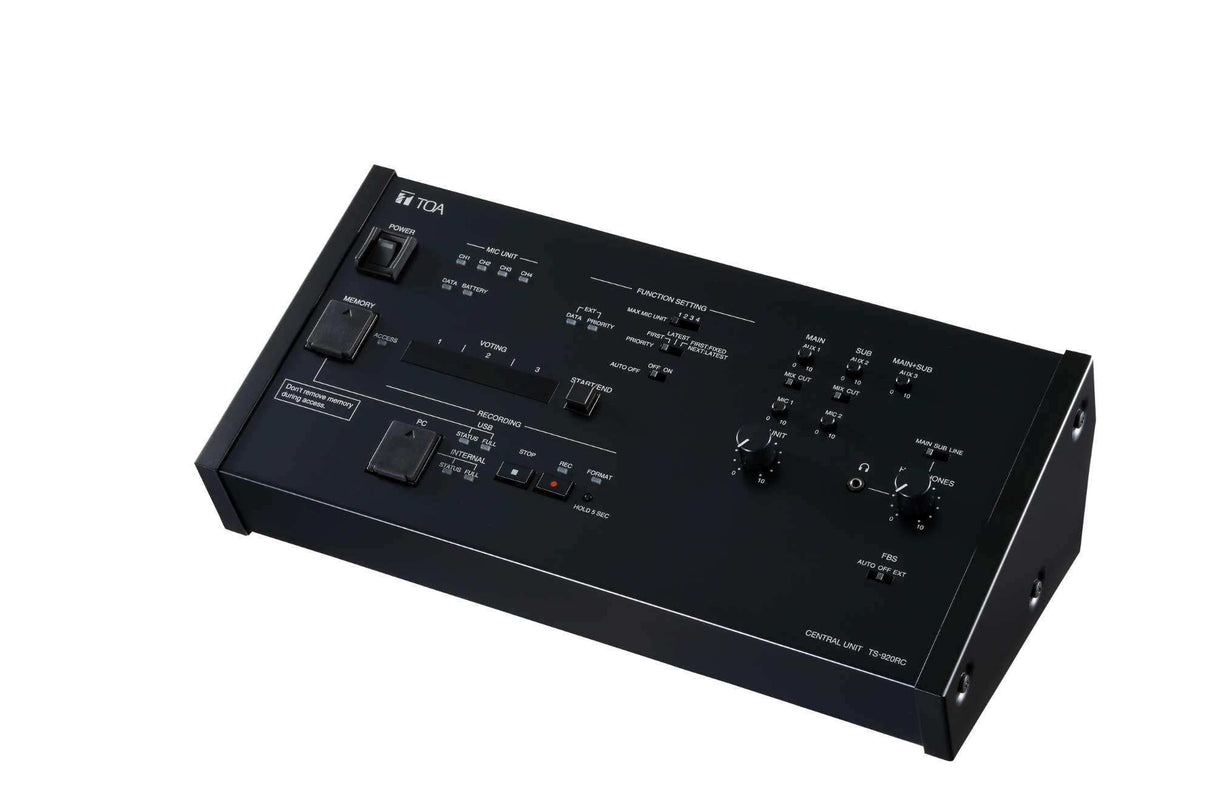

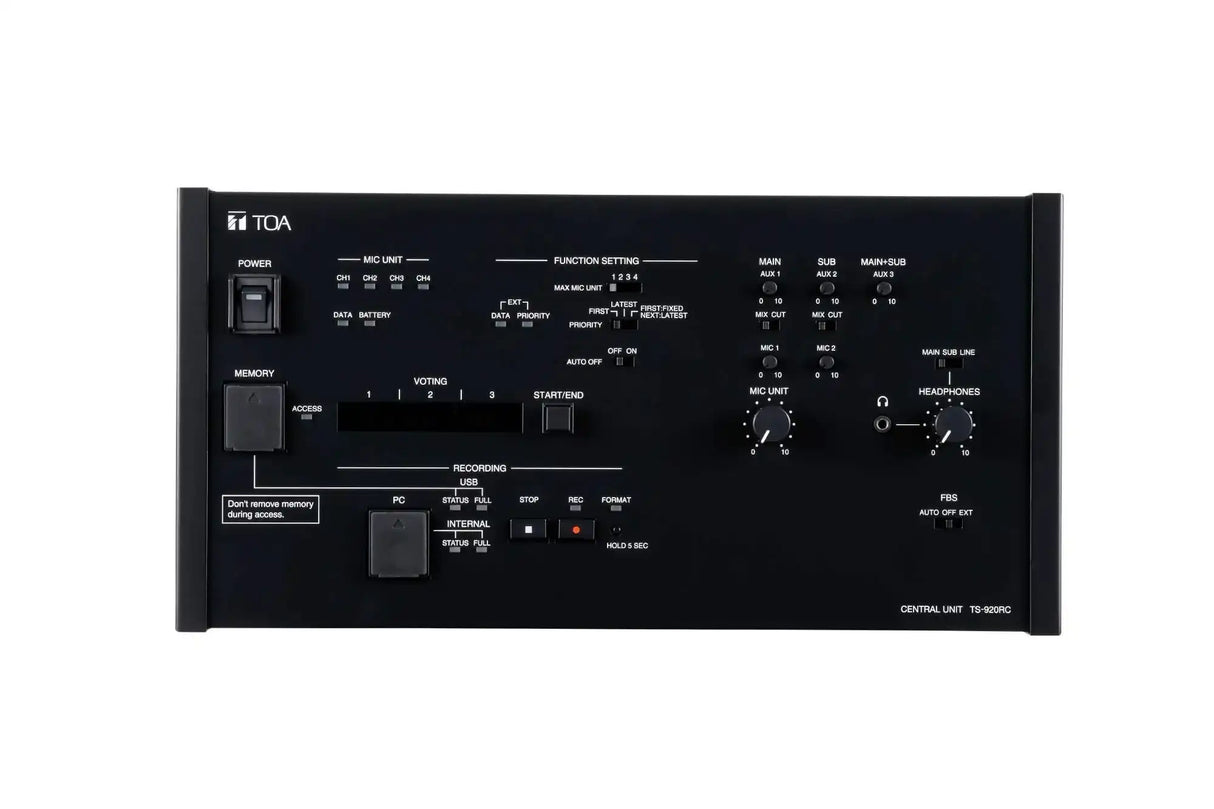

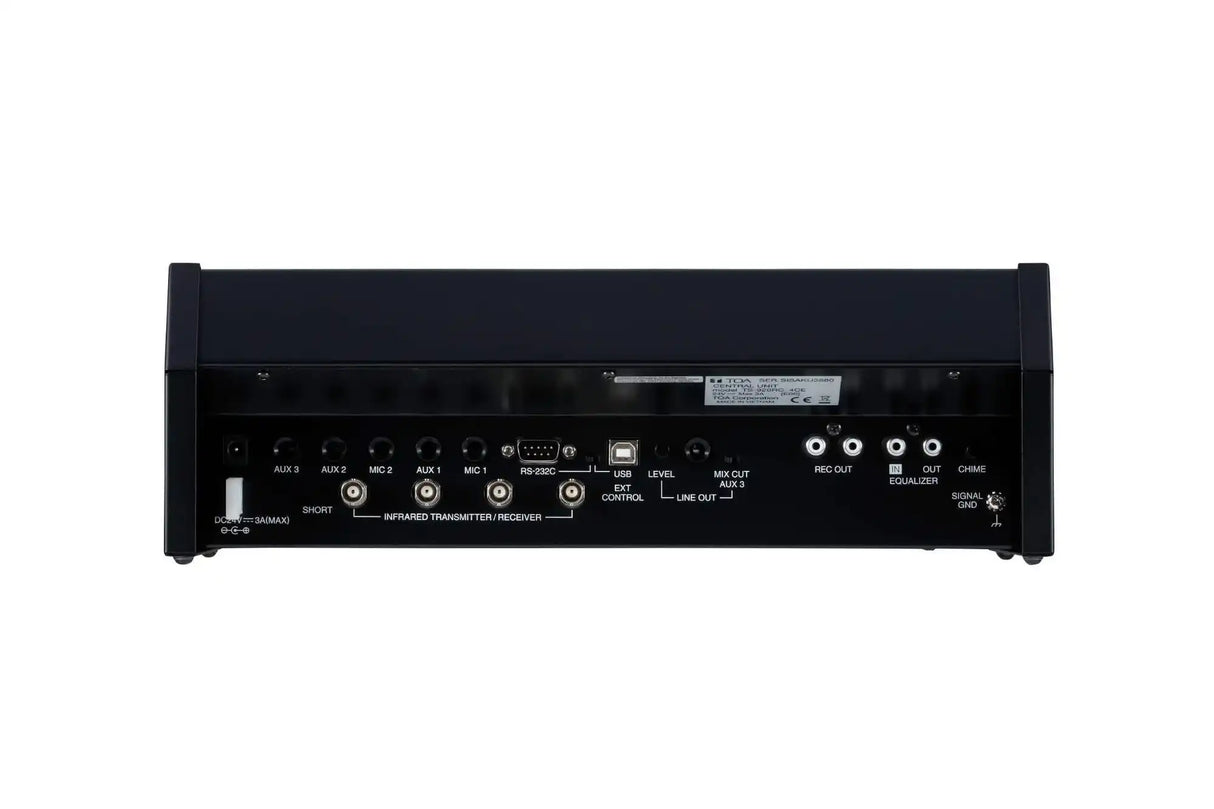

TOA Electronics Central Unit - TS-920RC 3CU

$2,342.00 $2,898.00

Shipping calculated at checkout.

TOA | SKU: TS-920RC 3CU

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The TS-920RC is a Central Unit of the Infrared Conference System that allows easy installation and flexible layout. By connecting TS-905/907 IR Transmitter/Receiver, TS-920RC can control the Chairman and Delegate Units via wireless infrared signal. It features the installation confirmation function that allows the connection status of IR Transmitter/Receiver and Chairman/Delegate Units to be verified, and the voting function. The TS-920RC is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory. The system can be controlled by PC (*1). With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).
(*1) Relevant control software is supplied on a custom-made basis.

Features

Main unit of the TS-920 Series Conference System
Up to 192 conference unit controllable
2 x Mic In (Main/Sub), 3 x AUX In (Main/Sub/Main and Sub) Line Out, Rec Out, Headphone monitor out, EQ in/out
Function setting – Number of open microphones, Auto mic-off function, Speech priority selector, Feedback suppressor
Recording capability to USB and internal memory
Voting result indicator
Rack-mountable with MB-TS920 optional bracket

Specs

Power Source

100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)

Power Consumption

72 W

Current Consumption

Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter)

Input

MIC 1 (Base Language): -60 dB (*2) , 600 Ω, unbalanced, Ø6.3 mm phone jack (2P)
MIC 2 (Translation Language): -60 dB (*2) , 600 Ω, unbalanced, Ø6.3 mm phone jack (2P)
AUX 1 (Base Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
AUX 2 (Translation Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
AUX 3 (Base and Translation Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)

Output

LINE: -10 dB (*2), 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
REC: -10 dB (*2), 10 kΩ, unbalanced, RCA pin jack
HEADPHONES: Ø3.5 mm mini jack (3P:monaural)

Equalizer Input/Output Terminal

Input: -20 dB (*2), 10 kΩ, unbalanced, RCA pin jack
Output: -20 dB (*2), 10 kΩ, unbalanced, RCA pin jack

LED Indicator

Voting result indicators 1 - 3 (7-segment LED, 3 digits), Short-circuit indicator, Audio signal receiving indicators 1 - 4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (flashes when a Chairman/Delegate unit's battery nears complete discharge), Recording status indicator, Format in-progress indicator, Access Indicator, Internal memory status indicator, USB memory status indicator, Remaining internal memory capacity warning indicator, Remaining USB memory capacity warning indicator

Number of Connectable Conference Units

192 units

Number of Connectable Infrared Transmitter/Receiver Units

Up to 4 units (with the use of distributor, up to 16 units connectable
when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination)

Infrared Transmitter/Receiver I/O Terminal

BNC jacks

External Control Connection Terminal

D-sub connector (9P, male)/USB-B selectable

Record Switch

Recording start button, Recording stop button, Format button

Recording Port

USB-A (for USB memory devices) and USB Mini-B (for PCs)

Recording Function

Recordings can be made to a USB memory device (*3) or the internal memory.
Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
Sampling frequency: 32 kHz, Bit rate: 128 kbps

Function Switch

Number of open microphones setting switch: 1/2/3/4
Mic-off setting switch: TIME OUT ON/OFF
Speech priority selector switch: FIRST (First-in-first-out priority)
LATEST (Last-in-first-out priority)
FIRST:FIXED NEXT:LATEST (Priority fixed for the first unit, and last-in-first-
out priority for all other subsequent units.)"
FBS switch: AUTO/OFF/EXT

Operating Temperature

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

90 %RH or less (no condensation)

Finish

Panel: Surface-treated steel plate, black, 30 % gloss, paint

Weight

2.8 kg (6.17 lb)

Included Accessories

AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord) x 1

Optional Accessories

Rack mounting bracket: MB-TS920
