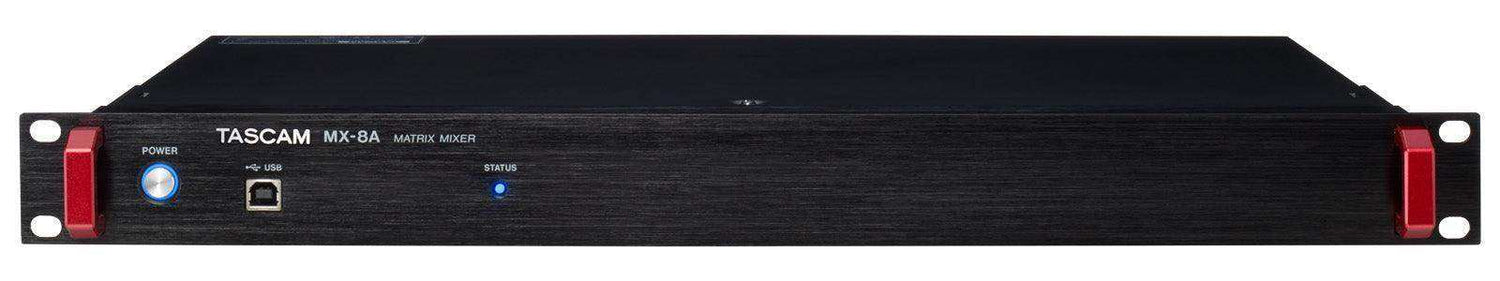

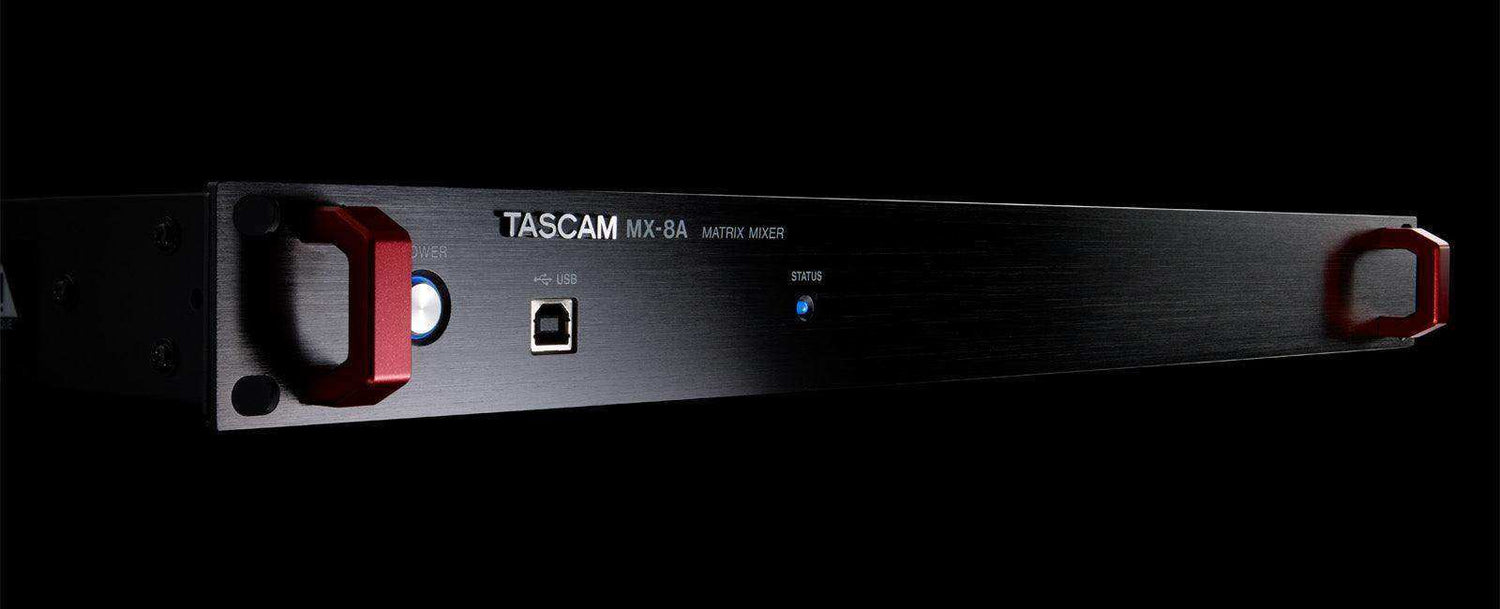

Tascam MX-8A 8 in / 8 out Matrix Mixer with built-in DSP

Save 21%
Tascam SKU: MX-8A
No reviews
Price:
$1,099.00 $1,399.00

Description

The TASCAM MX-8A is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.

The TASCAM MX-8A is possible to mix mic and playback equipment audio signals into 8 different zones. This function can be used in installation systems for small to medium scale stores, restaurants or banquet rooms, etc.

Powerful Integrated DSP

The onboard DSP provides a full set of audio processing for mic and line inputs including Compressor, 4 parametric EQ, auto level, ducking and more. On line level outputs, the DSP delivers 10 band EQ, high pass filters, low pass filters, delay and limiter effects.

Remote Control Software

Control of the TASCAM MX-8A via either of the two available control software applications

- TASCAM MX CONNECT, designed for integrators and providing control over the configuration and settings of an entire system.

Input module functions:

  • Mic/line input switching
  • Phantom power (+48V) ON/OFF (mic input)
  • PAD (mic input)
  • Mic gain (mic input)
  • Compressor
  • 4 band EQ2 band parametric EQ
    Low shelving EQ / High pass filter
    High shelving EQ
  • Auto level control
  • Mute
  • Fader
  • Fader / Mute grouping

Matrix mixer functions:

  • Mute
  • Fader
  • Fader / Mute grouping
  • Ducking function
  • Ambient noise compensator function

Output module functions:

  • 10 band EQ
    8 band parametric EQ
    Low shelving EQ / high pass filter
    High shelving EQ / low pass filter
  • Delay
  • Limiter
  • Phase switching
  • Test tone
  • Mute
  • Fader
  • Fader / Mute grouping
FORMAT 44.1k / 48k Hz, 16bit / 24bit
USB
Connector 4-pin USB B-type
Transfer rate USB2.0 High Speed (480Mbps)

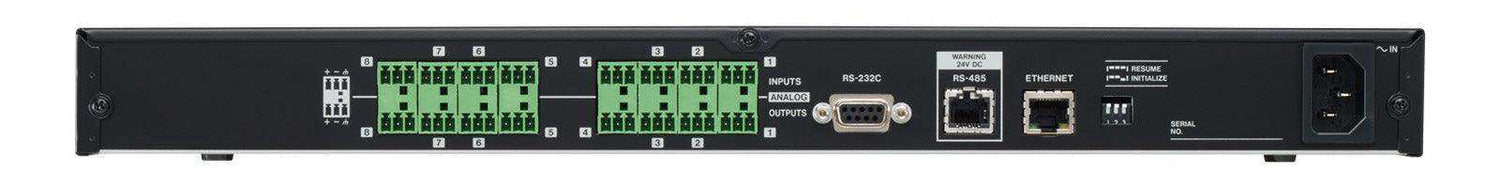

ANALOG IN
Connector Euroblock (Balanced) 3.81mm pitch
Minimum input level -77.5dBu
Maximum input level
MIC +26dBu
LINE +24dBu
Input impedance 2.2kΩ or higher
ANALOG OUT
Connector Euroblock (Balanced) 3.81mm pitch
Nominal output level +4dBu (when Ref.Level set to other than -9dBFS)
+6dBu (when Ref.Level set to -9dBFS)
Maximum output level
(switchable)		 +15dBu (Ref.Level: -9dBFS)
+18dBu (Ref.Level: -14dBFS)
+20dBu (Ref.Level: -16dBFS)
+22dBu (Ref.Level: -18dBFS)
+24dBu (Ref.Level: -20dBFS)
Output impedance 200Ω or lower
RS-232C
Connector D-sub 9-pin (female, inch-standard)
RS-485
Connector RJ-45
Cables Category 5e or faster STP cables
ETHERNET
Connector RJ-45
Transmission protocol TCP/IP
Ethernet standard 100BASE-TX
Cables Category 5e or faster STP cables
Power AC100-240 V, 50/60 Hz
Power consumption 21W
Dimensions 483(W) × 45(H) × 304.1(D)mm (including protrusions)
Weight 3.0kg
Operating temperature range 0～40°C
Included items Power cord × 1, Euroblock plug × 16、Cable band kit × 1, Rackmount screw kit × 1, Owner's Manual (including warranty) × 1



Audio performance

Mic amp EIN (equivalent input noise) -126dBu or less (MIC IN → LINE OUT, Input impedance 150Ω, 22ｋHz LPF+A, A-weighted, JEITA)
Frequency response +0.5/-0.5dB: 20Hz～20kHz (+24dBu input, MIC IN → LINE OUT, GAIN MIN, JEITA)
Distortion (THD+N) 0.005% or less (+24dBu input, 1kHz, MIC IN → LINE OUT, GAIN MIN, JEITA)
S/N ratio 106dB or higher (+24dBu input, 44.1 k/48 kHz sampling frequency, MIC IN → LINE OUT, GAIN MIN, JEITA)
Crosstalk 106dB or higher (+24dBu input, 1kHz, MIC IN → LINE OUT, GAIN MIN, JEITA)
Dynamic range 106dB or higher (MIC IN → LINE OUT, GAIN MIN, JEITA)

Note: JEITA indicates compliance with JEITA CP-2150



Supported audio drivers

Windows UAC2.0, WDM
macOS / iOS UAC2.0
Android UAC2.0
