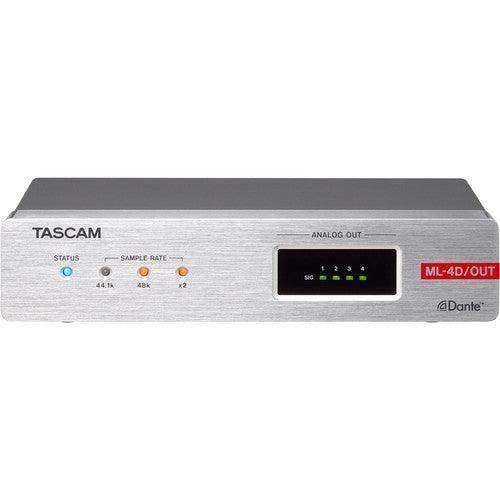

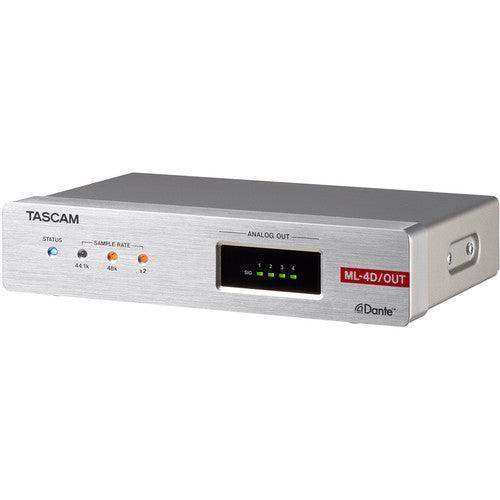

Tascam ML-4D/OUT-E Line Output Dante Converter with Built-In DSP Mixer

Availability: Call for Availability
Availability: Direct Ship
Tascam SKU: ML-4D/OUT-E
No reviews
Price:
$649.00 $799.00

Description

The ML-4D/OUT-E Line Output Dante Converter with Built-In DSP Mixer from TASCAM can be used to convert 4-channel Dante input/output signals into 4-channel analog output signals on Euroblock connectors for pro-audio applications.

The ML-4D/OUT-E Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included.

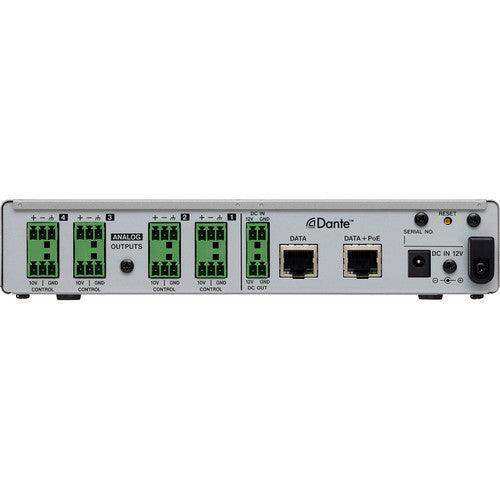

  • 4 analog outputs on Euroblock connectors
  • 4 Dante inputs/outputs
  • Supports PoE (Power over Ethernet)
  • Sample rate up to 24-bit / 96 kHz
  • Supports Dante daisy-chain, which allows two Dante Compact Processor models to be connected without a network switch
  • Compatible with Dante Domain Manager and Dante AES67 mode
  • Flexible scene preset function allows you to work in different area situations (up to 50 presets)
  • Two types of user-control software available for Windows/Mac/iOS/Android devices:
  •
  • TASCAM DCP CONNECT, for integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
  • TASCAM EZ CONNECT, for end-users: simple app design for only the necessary functions such as area-volume settings, etc.
  • Remote control via Dante
  • Half-rack mountable size
  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor digital input/output signals
  • Configurable reference level (via remote control only)
  • Surface-mount adapters for installation under desks included

TASCAM ML-4D/OUT-E Specs

 General
Formats Supported 44.1/48/88.2/96 kHz, 16/24-Bit, 4 Channels
Input/Output
Connector RJ-45
Transmission Protocol Dante
Gigabit Ethernet 1000 BASE-T (IEEE 802.3ab)
Cable Category 5e or Faster STP Cables
Analog Outputs
Connector Euroblock (Balanced) 3.81 mm Pitch
Nominal Output Levels +4 dBu (when Ref. Level not −9 dBFS)
+6 dBu (when Ref. Level set to −9 dBFS)
Maximum Output Level Switchable:
+15 dBu (Ref. Level: −9 dBFS)
+18 dBu (Ref. Level: −14 dBFS)
+20 dBu (Ref. Level: −16 dBFS)
+22 dBu (Ref. Level: −18 dBFS)
+24 dBu (Ref. Level: −20 dBFS)
Output Impedance 200 Ohms or Lower
Audio Performance
Frequency Response Dante In / Line Out:
±0.5 dB: 20 Hz - 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
±0.5 dB: 20 Hz - 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)
Distortion 0.002 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Signal to Noise Ratio 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Crosstalk 100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Dynamic Range 108 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Other Features
Power PoE Class 0
TASCAM PS-P1220E AC Adapter (Sold Separately)
Power Consumption 4 W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 8.4 x 1.7 x 5.4" / 21.4 x 4.4 x 13.6 cm
Weight 30.4 oz / 863 g
Packaging Info
Package Weight 2.9 lb
Box Dimensions (LxWxH) 13 x 9.1 x 7.1"
