Tascam ML-32D – 32-Channel Analog/Dante Converter

Product Overview

The TASCAM ML-32D is a 1U rack-mount 32-channel analog-to-Dante and Dante-to-analog converter designed for AV integrators and audio engineers who need to bridge large-format analog audio infrastructure with a Dante network. It uses four D-Sub 25-pin inputs and four D-Sub 25-pin outputs, accommodating breakout boxes for XLR or Euroblock termination, and supports Dante Controller for flexible channel routing across the network. At $2,999, the ML-32D is suited to theatrical installations, broadcast facilities, and large conference or performance spaces where analog consoles or outboard gear must feed into a Dante-networked system.

Product Description

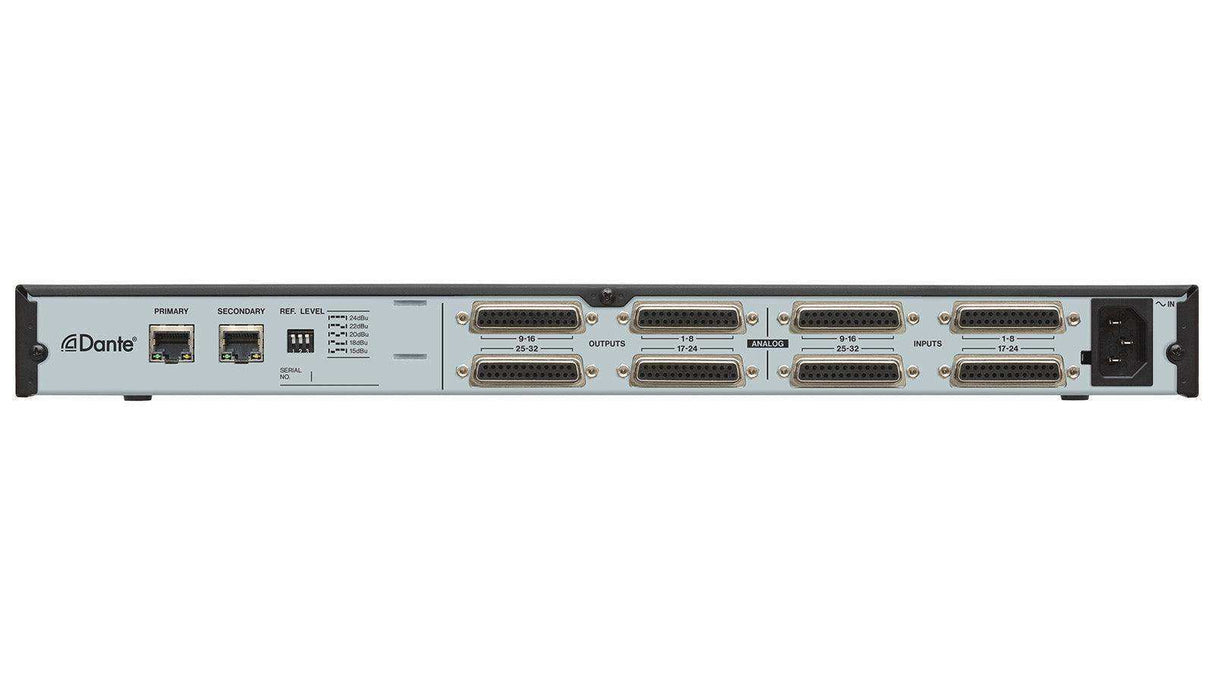

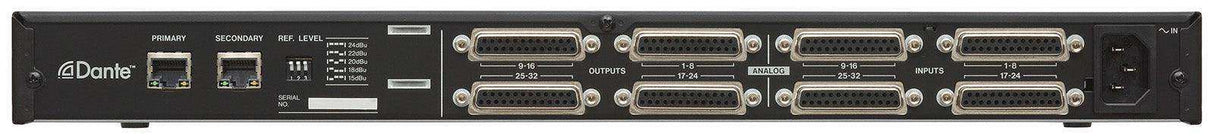

The ML-32D handles 32 channels of analog input and 32 channels of analog output simultaneously, all carried over a single Gigabit Ethernet connection using the Dante protocol. Four D-Sub 25-pin input connectors and four D-Sub 25-pin output connectors on the rear panel connect directly to compatible mic preamps, console mixers, audio interfaces, and amplifiers, or to TASCAM breakout boxes such as the BO-16DX/IN and BO-16DX/OUT for XLR termination. Reference level is selectable across five options — +24 dBu, +22 dBu, +20 dBu, +18 dBu (standard +4 dBu), and +15 dBu (standard +6 dBu) — accommodating a wide range of analog equipment operating levels. Signal and overload indicators on the front panel allow visual level monitoring of all analog I/O. Dante Controller software handles routing configuration, and the ML-32D supports AES67 for interoperability with Ravenna and other AES67-compatible systems. A real-world installation example: K2sound deployed the ML-32D on the set of a theatrical production to consolidate wireless receiver feeds into a Dante network, eliminating large analog cable runs. The ML-32D is available at Creation Networks alongside compatible breakout boxes including the BO-16DX/IN and BO-16DX/OUT.

Key Features

• 32-Channel Analog/Dante Conversion — Simultaneously converts 32 analog inputs and 32 analog outputs to and from a Dante network over a single Cat5e/6 Ethernet cable.
• D-Sub 25-Pin I/O — Four D-Sub inputs and four D-Sub outputs connect directly to consoles, preamps, and outboard gear, or to XLR/Euroblock breakout boxes.
• Selectable Reference Level — Five maximum level options (+24/+22/+20/+18/+15 dBu) match the ML-32D to a broad range of professional analog equipment.
• Dante Controller Routing — Full Dante Controller compatibility enables flexible many-to-many routing across all Dante-networked devices in the installation.
• AES67 Interoperability — Supports AES67 for connectivity with Ravenna and other AES67-compatible audio-over-IP systems.

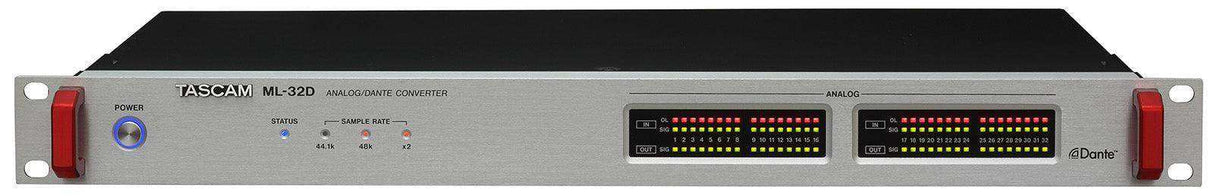

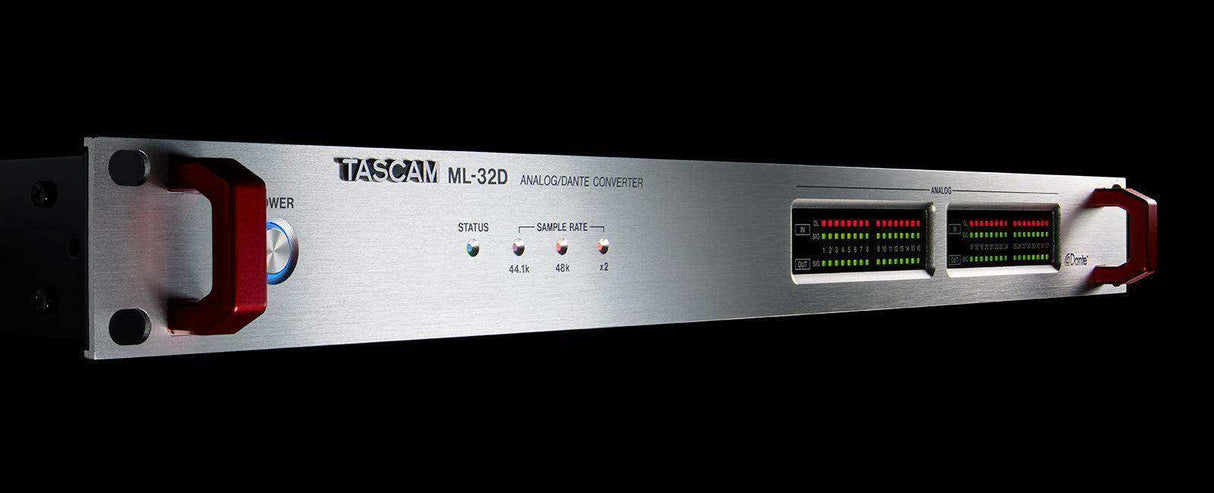

• Signal and Overload Indicators — Front-panel LED indicators provide real-time visual level monitoring of analog I/O without a separate meter bridge.
• 1U Rack-Mount — Standard 19-inch rack format fits equipment racks in permanent installations and touring systems.

Typical Applications

• Dante network integration for analog consoles and outboard gear
• Theatrical stage and pit analog-to-Dante conversion
• Broadcast facility analog I/O expansion
• House of worship audio network infrastructure
• Conference center and multi-purpose room AV integration
• Auditorium and performing arts center system upgrade

Technical Specifications

Frequently Asked Questions

What breakout boxes work with the ML-32D?

TASCAM's BO-16DX/IN (XLR female input) and BO-16DX/OUT (XLR male output) breakout boxes connect directly to the ML-32D's D-Sub 25-pin connectors to provide XLR termination. The BO-32DE provides Euroblock termination across all 32 channels.

Does the ML-32D support AES67?

Yes. The ML-32D supports AES67, enabling interoperability with Ravenna-based systems and other AES67-compatible audio-over-IP networks.

How many channels can the ML-32D carry on a single Ethernet cable?

The ML-32D carries 32 analog inputs and 32 analog outputs over a single Gigabit Ethernet connection using Dante.

Can reference levels be adjusted per channel?

Reference level is selectable across five global settings: +24, +22, +20, +18, and +15 dBu maximum, accommodating standard +4 dBu and +6 dBu professional equipment.

What warranty applies to the ML-32D?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty. Contact Creation Networks for support.
