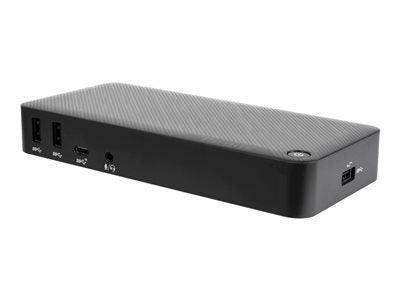

Targus USB-C Triple Monitor Docking Station w/85W Power - DOCK430USZ

Product Overview

The Targus DOCK430USZ USB-C Triple Monitor Docking Station provides DisplayPort Alt Mode connectivity for three simultaneous displays, supporting up to 4K resolution on a single screen, dual 1440p, or triple 1080p configurations. At 85W Power Delivery, it charges the connected host while expanding to a full commercial workstation setup through a single USB-C cable. Designed for broad compatibility across Windows, macOS, and other operating systems, the DOCK430USZ suits corporate offices, IT-managed deployments, and shared desk environments where a USB-C triple monitor docking station without a DisplayLink driver is preferred.

Product Description

The DOCK430USZ uses USB-C DisplayPort Alt Mode—not DisplayLink—to deliver native, driver-free video output across two DisplayPort 1.4 and one HDMI 2.0 port. This approach ensures stable, low-latency display performance and simplifies IT deployment since no additional drivers are required on most platforms. The dock supports three monitors at 1920×1080 at 60Hz, two monitors at 2560×1440 at 60Hz, or a single 4K monitor at 3840×2160 at 60Hz, giving AV integrators and IT managers flexibility to match the display configuration to specific workstation requirements.

Beyond video, the DOCK430USZ adds five USB data ports—one USB-C 3.2 Gen 2 at 10Gbps and four USB-A 3.2 Gen 1 ports including one fast-charging port—along with Gigabit Ethernet and a 3.5mm combo audio jack. The 85W USB-C Power Delivery handles host laptop charging simultaneously with full port utilization. A VESA bracket mounting provision (bracket sold separately as ACX003GLZ) supports behind-display installation in structured workstation deployments. The integrated security lock slot accepts standard Kensington locks, and the dock carries a 3-year limited warranty appropriate for commercial procurement.

Key Features

• DisplayPort Alt Mode Native Video — Uses USB-C Alt Mode for native, driver-free video output; no DisplayLink software required on most platforms.
• Triple Monitor Support — Drives three 1080p, two 1440p, or one 4K monitor via two DisplayPort 1.4 and one HDMI 2.0 ports.
• 85W USB-C Power Delivery — Charges the connected host laptop at up to 85W while all ports remain fully active.
• USB-C 3.2 Gen 2 Data Port — One 10Gbps USB-C data port for high-speed storage, displays, or peripheral connectivity.
• Four USB-A 3.2 Gen 1 Ports — Includes one fast-charging USB-A port for mobile device charging alongside standard peripheral connections.
• Gigabit Ethernet — Wired network connection for reliable, low-latency corporate LAN connectivity.
• Integrated Security Lock Slot — Kensington-compatible lock slot secures the dock in open-plan and shared-desk environments.
• VESA Mount Bracket Provision — Supports behind-display mounting with the Targus ACX003GLZ VESA Mount Bracket (sold separately).
• 3-Year Limited Warranty — Commercial-grade warranty coverage for IT procurement requirements.
