Product Overview

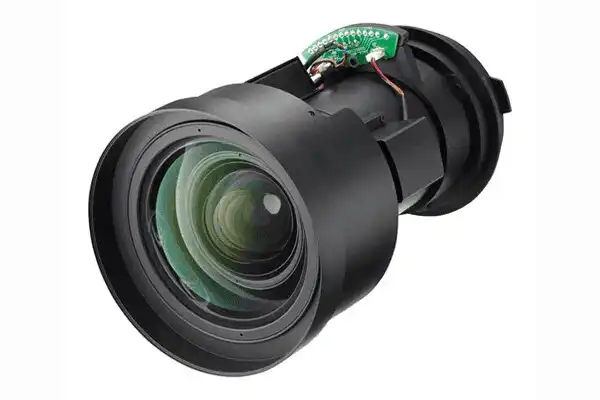

The Sharp NP40ZL is a motorized short-throw zoom lens with a 0.79-1.14:1 throw ratio, compatible with the NP-PA653U, NP-PA803U, NP-PA853W, and NP-PA903X LCD installation projectors. This lens enables close-range projection with a 50 to 500-inch screen size range, suited for rooms where the projector must be positioned close to the screen. Motorized zoom and focus allow remote optical adjustment after installation without physical access to the projector.
Product Description
The NP40ZL serves the short-throw position in the lens series for the NP-PA653U/PA803U/PA853W/PA903X PA series projector platforms. With a 0.79-1.14:1 throw range and f/2-2.5 aperture, focal length 13.3-18.6mm, it covers projection distances appropriate for mid-depth rooms where a standard-throw lens would require more distance. At a 100-inch-wide screen, the NP40ZL positions the projector approximately 5.7 to 8.2 feet away. Motorized zoom and focus allow setup adjustments from the projector remote after ceiling installation, reducing the need for ladder access during commissioning.
The NP40ZL is sold separately from the compatible projector bodies and must be specified as a separate line item in AV system designs.
Key Features
- 0.79-1.14:1 Throw Ratio — Short-throw range for rooms requiring close projector-to-screen placement with a PA series installation projector.
- Motorized Zoom and Focus — Remote optical adjustment after ceiling installation for streamlined commissioning.
- 50-500 Inch Screen Support — Wide screen size range from small conference rooms to large auditoriums.
- Compatible with NP-PA Series — Designed for NP-PA653U, NP-PA803U, NP-PA853W, and NP-PA903X projectors.
- Aperture f/2-2.5 — Adequate light transmission for high-brightness PA series projectors.
Typical Applications
- Corporate conference room with limited projection depth
- Higher education classroom with constrained ceiling mount
- Multi-purpose room with short wall-to-screen distance
- House of worship close-mount projection
- Government facility with space-constrained projection setup
Technical Specifications
| Specification | Value |
|---|---|
| Model | NP40ZL |
| Throw Ratio | 0.79-1.14:1 |
| Focal Length | f = 13.3-18.6mm |
| Aperture | f/2-2.5 |
| Zoom | Motorized |
| Focus | Motorized |
| Projection Size | 50-500 inches diagonal |
| Weight | 4.2 lb / 1.9 kg |
| Compatible Projectors | NP-PA653U, NP-PA803U, NP-PA853W, NP-PA903X |
Frequently Asked Questions
- Q: Which projectors is the NP40ZL compatible with?
- The NP40ZL is compatible with the NP-PA653U, NP-PA803U, NP-PA853W, and NP-PA903X installation projectors.
- Q: Is this lens sold with the projector?
- No. The NP40ZL is sold separately from the projector body.
- Q: Where can I purchase the NP40ZL?
- Available at Creation Networks, an authorized Sharp commercial AV reseller.
