Logitech 960-001060 GROUP Video Conferencing System with Expansion Mics

Product Overview

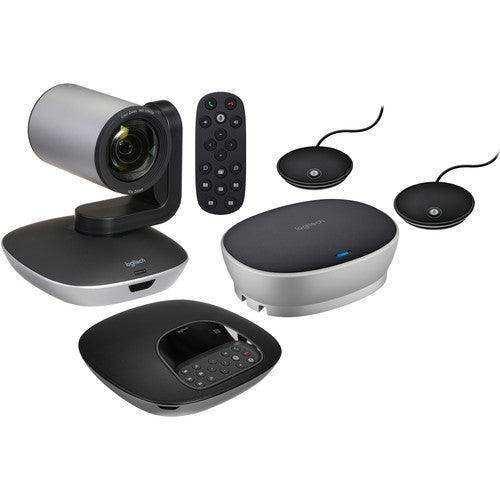

The Logitech GROUP Video Conferencing System with Expansion Mics (960-001060) is a USB plug-and-play camera and speakerphone solution for mid to large conference rooms, sized for groups of roughly 14 to 20 people. It pairs a motorized PTZ camera offering Full HD 1080p, a 90-degree field of view, and 10x lossless zoom with a full-duplex speakerphone and a pair of expansion microphones. The included Expansion Mics extend the conversational pickup area from 6 meters to 8.5 meters in diameter for larger rooms. As a UVC-compliant system, GROUP works with most unified communications and video conferencing applications.

Product Description

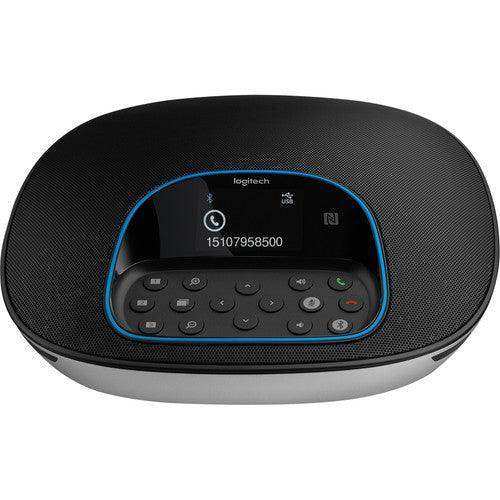

GROUP brings life-like Full HD 1080p video at 30 frames per second to mid-to-large meeting spaces, with a ZEISS-certified lens, autofocus, and a 90-degree field of view that frames everyone at the table. The motorized camera offers 260-degree pan, 130-degree tilt, and 10x lossless HD zoom for close-ups of objects and whiteboard content, plus five camera presets and far-end camera control of compatible Logitech ConferenceCam products. The cast-metal speakerphone delivers full-duplex audio with acoustic echo cancellation and noise reduction, and this configuration adds two expansion microphones that widen the pickup area from a 6-meter to an 8.5-meter diameter. A central powered hub connects the camera and speakerphone over 5 m cables, allowing up to a 9.8 m span between components, and the system connects to a PC or Mac over USB with Bluetooth and NFC available for mobile audio calls.

Key Features

• Full HD 1080p video — 1080p at 30 frames per second with H.264 and Scalable Video Coding for smooth streams.
• Included Expansion Mics — Two expansion microphones extend the pickup area from a 6 m to an 8.5 m diameter for larger rooms.

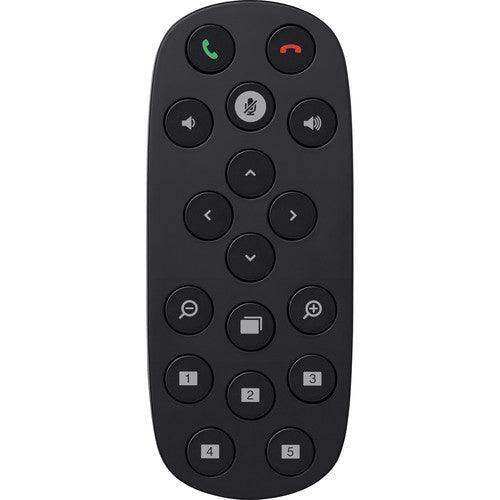

• Motorized PTZ — 260-degree pan, 130-degree tilt, and 10x lossless HD zoom controlled from the remote or console.
• 90-degree field of view — A generously wide field of view makes it easy to see everyone in the room.
• ZEISS-certified lens with autofocus — High-precision optics deliver sharp resolution wherever the lens is pointed.
• Full-duplex speakerphone — Acoustic echo cancellation and noise reduction deliver clear, natural audio.
• Five camera presets — Save frequently used views such as the table, whiteboard, and close-ups, and recall them at a touch.
• Far-end camera control — Operate pan, tilt, and zoom of a compatible Logitech ConferenceCam at the other location.
• Bluetooth and NFC — Pair a mobile device for audio calls through the speakerphone.
• USB plug-and-play — UVC-compliant connectivity works with PC and Mac and most UC and video conferencing applications.

Typical Applications

• Conference room — Sized for mid to large conference rooms seating roughly 14 to 20 people.
• Boardroom — Expansion Mics and 8.5 m pickup suit larger boardroom tables.
• Training room — PTZ control, presets, and wide framing support instructor-led sessions.
• Multi-purpose room — Flexible camera mounting and a hub-based layout adapt to varied spaces.
• All-hands room — Wide pickup and far-end control support larger group meetings.

Technical Specifications

Specifications sourced from the Logitech GROUP datasheet.

Frequently Asked Questions

How large a room does the GROUP system with Expansion Mics cover?
GROUP is designed for mid to large conference rooms seating roughly 14 to 20 people. The included Expansion Mics extend the audio pickup area from a 6-meter to an 8.5-meter diameter for larger spaces.

What platforms is the GROUP system compatible with?
GROUP is a UVC-compliant USB system compatible with most UC and video conferencing applications, with certifications including Optimized for Microsoft Lync, Certified for Skype for Business, and Cisco Jabber and WebEx compatibility.

How are the camera and speakerphone connected?

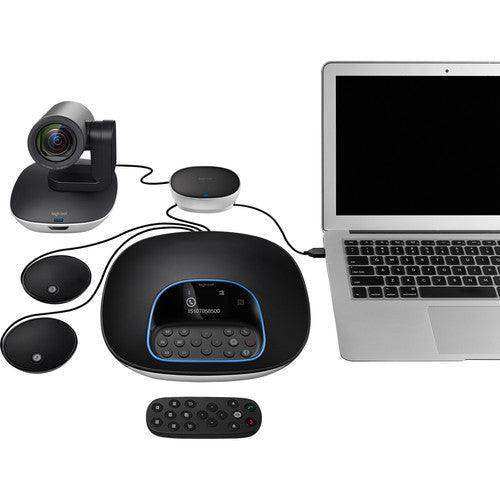

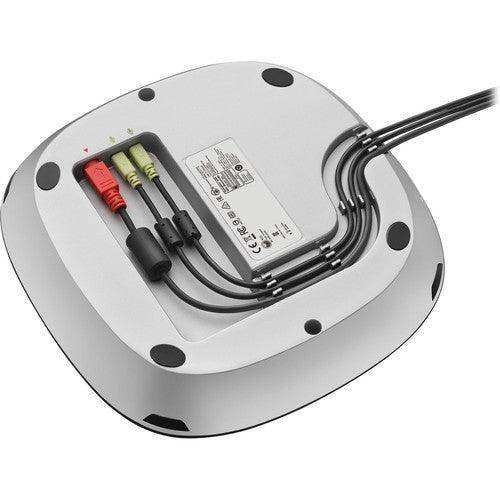

A central powered hub connects the camera and speakerphone using two 5 m cables, with a 3 m USB cable to the PC or Mac. This allows up to a 9.8 m span between the camera and speakerphone, and the camera can be placed on a table, mounted on a wall, or attached to a tripod.

Can the GROUP camera be controlled from the far end?
Yes. GROUP supports far-end camera control, letting a remote participant operate pan, tilt, and zoom of a compatible Logitech ConferenceCam at the other location.

What warranty and support are included?
GROUP includes a 2-year limited hardware warranty. For procurement and AV integration support, contact Creation Networks.
