Overview

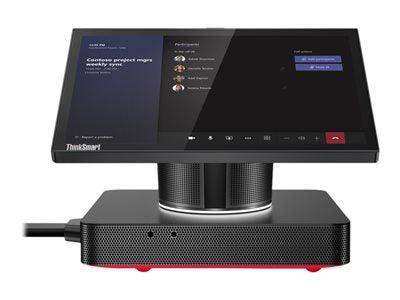

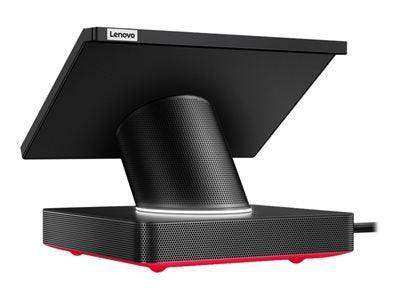

Lenovo ThinkSmart Hub 11H1 - All-in-one - Core i5 8365U / 1.6 GHz - vPro - RAM 8 GB - SSD 128 GB - NVMe - UHD Graphics 620 - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 - Win 10 IoT Enterprise CBB 64-bit - monitor: LED 10.1" 1920 x 1200 (WUXGA) touchscreen - raven black, red (bottom cover) - with 3 Years Lenovo Premier Support
The ThinkSmart Hub meeting room device is making meetings more efficient than ever. Built on the Microsoft Teams platform, the redesigned Hub has a slimmer design with a sleeker display, more speakers and microphones, an innovative single-cable mechanism, and more visible indicator lights. It's still scalable across room sizes and features one-touch meeting start, for the best possible Microsoft Teams experience. The built-for-business Intel vPro platform delivers the performance, security features, manageability, and stability IT needs and users want.
Built for teamwork
The ThinkSmart Hub makes collaborating easy, whether it’s across town or around the globe. Start your meetings on time, manage your cables, communicate via voice and chat in real time on Microsoft Teams, and share control with the rotatable display. Designed for small- and medium-sized rooms, this smart room device easily scales across a range of room sizes with a mix of curated accessories, providing a solution for a variety of environments.
Save time & money
With one-touch meeting start, participants can avoid dial-in delays and begin collaborating immediately via the ThinkSmart Hub. IT professionals can use the ThinkSmart Manager console to deploy, monitor, manage, and troubleshoot all Hub devices from one centralized location, while optional Smart Office Professional Services provide additional, personalized support.
Specifications
General
Platform Technology Intel vPro Platform Type Personal computer Bundled Services 3 Years Lenovo Premier Support Product Form Factor All-in-one Built-in Devices 4 speakers, 3-color LED ring Sensors Proximity sensor Embedded Security Trusted Platform Module (TPM 2.0) Security Chip Color Raven black, red (bottom cover) Localization Language: English / region: United States Processor / Chipset
CPU
Intel Core i5 (8th Gen) 8365U
Clock Speed
1.6 GHz
Max Turbo Speed
4.1 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
Cache Memory
Installed Size
6 MB
Cache Per Processor
6 MB
RAM
Installed Size
8 GB
Technology
DDR4 SDRAM - non-ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2400 MHz
Features
Dual channel memory architecture
Configuration Features
Provided memory is soldered
Hard Drive
Type
SSD - M.2 2242
Capacity
1 x 128 GB
Interface Type
PCI Express 3.0 x4
Features
NVM Express (NVMe)
Optical Storage
Type
No optical drive
Monitor
Monitor Type
LED
Touchscreen
Yes (10-point multi-touch)
Diagonal Size
10.1"
Native Resolution
1920 x 1200 (WUXGA)
Widescreen Display
Yes
Image Aspect Ratio
16:10
Horizontal Viewing Angle
+80 / -80
Image Brightness
320 cd/m²
Image Contrast Ratio
1000:1
Monitor Features
Anti-glare, 360° rotatable, smudge resistant, TDDI Technology
Graphics Controller
Graphics Processor
Intel UHD Graphics 620 shared video memory (UMA)
Video Interfaces
DisplayPort
Max Monitors Supported
3
Audio Output
Compliant Standards
High Definition Audio
Speakers Included
4
Input Device
Type
No keyboard, no mouse
Audio Input
Type
4 microphones
Networking
Ethernet Controller
Intel I219-LM
Wireless LAN Supported
Yes
Wireless NIC
Intel Wireless-AC 9560
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Features
Wake on LAN (WoL), Intel Active Management Technology (AMT) 11, dual stream (2x2)
Expansion / Connectivity
Interfaces
1 x headphones/microphone (1 in front) ¦ 2 x USB 3.1 Gen 2 (2 side) ¦ 1 x USB-C (1 side) ¦ 1 x DisplayPort (1 side) ¦ 1 x HDMI input (1 side) ¦ 1 x LAN (Gigabit Ethernet) (1 side)
Miscellaneous
Cables Included
ThinkSmart One Cable
Theft/Intrusion Protection
Security lock slot (cable lock sold separately), secure cable management door
Security Slot Type
Kensington security slot
Compliant Standards
RoHS, TUV Rheinland Ultra Low Noise Certification
Power
Device Type
Power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Power Provided
90 Watt
Efficiency
88%
Operating System / Software
OS Provided
Windows 10 IoT Enterprise CBB 64-bit Edition English
Manufacturer Warranty
Service & Support
Limited warranty - 3 years - on-site
Dimensions & Weight
Width
9.4 in
Depth
7.9 in
Height
7.3 in
Weight
5.4 lbs
