Overview
**PRE-ORDER - Shipping in March

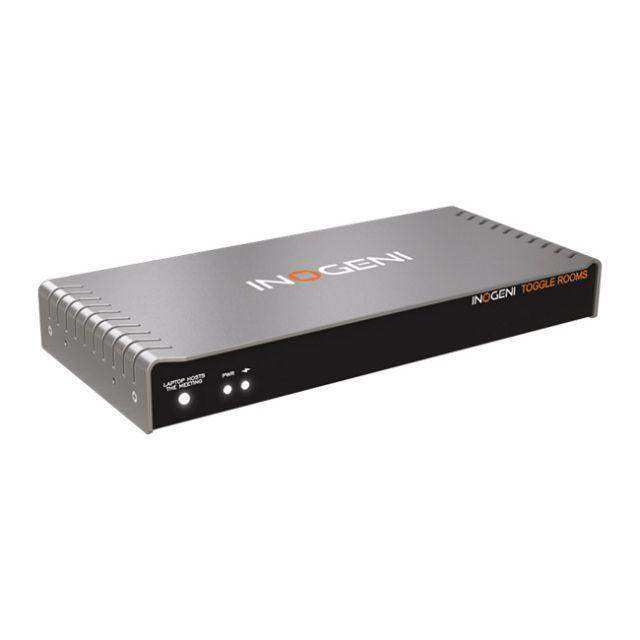

Inogeni Toggle Rooms
4K BYOD/BYOM: 2 PCs SWITCHER FOR USB 3.0/HDMI DEVICES
TOGGLE ROOMS provides a 4Kp60 pro-AV and unified communication system enabling users to seamlessly switch from a Room PC to laptop host, ensuring a user-friendly and efficient meeting experience.
One Cable to Own the room!
Advanced USB/HDMI devices to 2 PCs switcher
Attractive price
4kp60 in 16:9 and 21:9 wide screen capable (HDMI)
Flexible options:
USB-C with power delivery 100W
or USB-B + HDMI
Compatible by design:
Crestron, Logitech, Lenovo, Poly, MAXHUB
Teams, Zoom…
Made in Canada
Quality
Reliability
Peace of mind (no driver required and TAA compliance)
New Maestro device controller for easy configuration and update
TOGGLE ROOMS facilitates videoconferencing management without any hassles. Users can switch in a flash without waiting.
Switch 4 peripherals between 2 hosts: Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering the flexibility of a push button or control pad for various meeting scenarios.
3 application scenarios
SWITCH BYOD/BYOM with one cable for a Room PC and laptop
ROOM PC HOSTS THE MEETING
Room PC BYOD mode: In this mode, the USB and HDMI devices are routed only to the Room PC.
Laptop sharing and Room PC BYOD: If the user would like to send HDMI content from the laptop’s USB-C or HDMI connection to the Room PC, it is possible to do so with the HDMI SHARE output connection.
LAPTOP HOSTS THE MEETING
Laptops BYOM mode: In this mode, the laptop is the system that is currently selected to the main USB and HDMI peripherals. The Room PC is completely disconnected from the setup.
How it works
TOGGLE ROOMS seamlessly integrates into a Room PC environment, allowing users to connect peripherals and charge their laptops via versatile options, such as USB-C or USB-B and HDMI for older laptop models.
This flexibility extends across various settings, from huddle rooms to large boardrooms, classrooms, and auditoriums, making it an ideal solution for unified videoconferences.
ONE CABLE SOLUTION TO TAKE CONTROL OF THE ROOM
2-meter USB-C 100W cable included
USB-C solutions tested up to 10 meters
1 or 2 monitors 4Kp60 or 21:9 wide screen capable
Features
SWITCH BYOD/BYOM with one cable for Room PC and laptop:
Switch 4 peripherals between 2 hosts (3 USB + display): Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility via a push button or control pad for various meeting scenarios.
AUTOMATIC/MANUAL HOST SWITCHING
Up to 4Kp60 and 21:9 wide screen capable:
PC 1 (Laptop)
1x USB-C host connection (USB 3.0, DP alternate mode and power delivery 100W)
OR
1x USB-B host connection and 1x HDMI 2.0 video input, up to 4Kp60
PC 2 (Room PC)
1x USB-B host connection and 1x HDMI 2.0 video input, up to 4Kp60
INPUTS
3x USB 3.0/2.0 devices (high-quality cameras, videobar or audio devices)
1x HDMI 2.0, up to 4Kp60 for each LAPTOP and ROOM PC host
OUTPUTS
1x HDMI 2.0, up to 4Kp60 for DISPLAY connection from selected host
1x HDMI 2.0, up to 4Kp60 for SHARE connection from BYOD to Room PC HDMI ingest
21:9 wide screen capable (HDMI)
COST-EFFECTIVE & RELIABLE SOLUTION
Simple to install and connect (no driver required)
Compatibility with leading MTR, Zoom Rooms, and pro-AV systems
Compatible with USB cameras, videobars and videoconferencing audio devices
SWITCHING CONTROL:
Controllable by RS-232
IP control
2x GPI / relay control (PC selection: BYOD/BYOM)
Host switch button: Table surface-mounted button for BYOM laptop selection. Accessories are available separately.
INO – Host button (OPTIONAL)
SUPPORT
Bidirectional audio system AEC works for videobars, such as Cisco, Poly, Logitech and Bose
100WpPower delivery over USB-C host laptop connection
Multiple mounting options
Visual LED status
Switch button on the front of the devices
Embedded audio in USB and HDMI
ADVANCED VIDEO QUALITY
Automatic scaling
Supports multiple devices on the same host
Device configuration via the INOGENI MAESTRO device controller
Plug & Go with the INOGENI’s TOGGLE ROOMS!
This user-friendly switcher requires no drivers, allowing smooth transitions between 3x USB 3.0 devices and 1x HDMI display. Effortlessly switch between your Room PC and laptop for a seamless and dynamic collaboration experience. It is compatible with leading MTR, Zoom Rooms, and pro-AV systems. Elevate your meetings with INOGENI’s reliable and robust technology.
THE MOST POPULAR VIDEOCONFERENCE SYSTEMS NEED TOGGLE ROOMS
These videoconferencing systems (Room PC) need TOGGLE ROOMS to enable BYOM-BYOD so that users can easily switch peripherals (cameras, microphones, speakerphones, display screens or videobars) to the guest laptop in the meeting room.

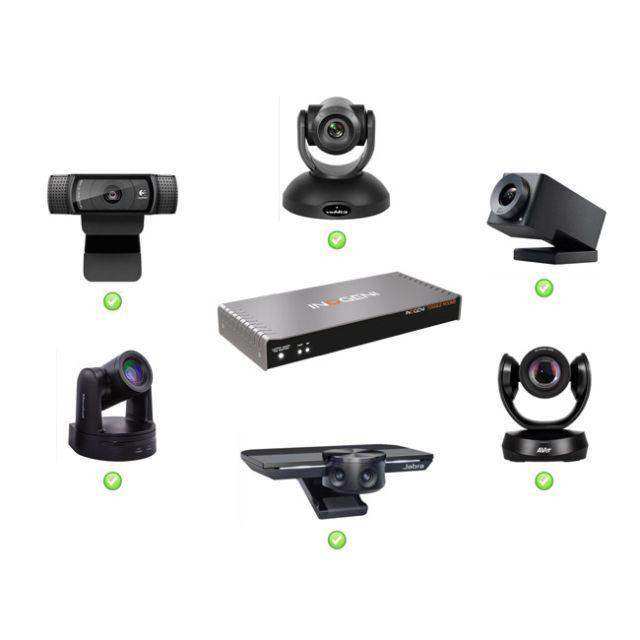

Compatible with all USB cameras, videobars and pro-AV audio devices
Unlock ultimate versatility with INOGENI’s TOGGLE ROOMS! It is fully compatible with all USB cameras, videobars and pro-AV audio speakerphones, microphones, or speakers, including Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.
Specs

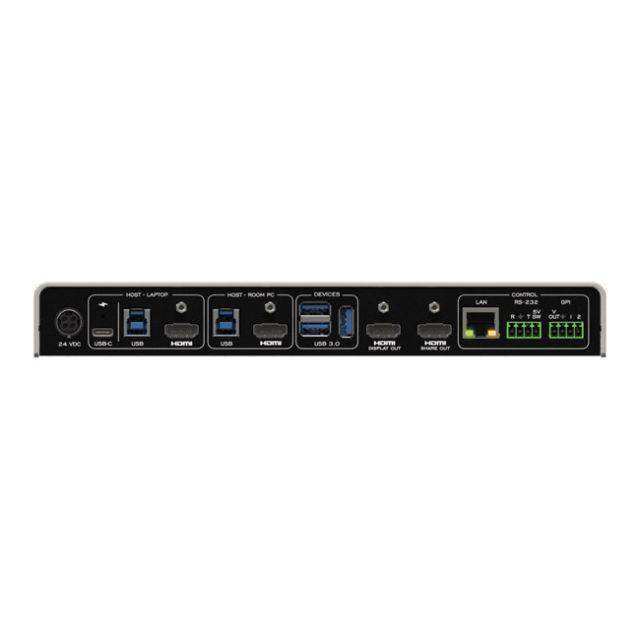

Tech Specs
The TOGGLE ROOMS 4Kp60 USB/HDMI switcher effortlessly connects to three USB 3.0 devices and an HDMI display. Seamlessly switching between two hosts, it automatically transitions to a connected laptop, providing convenient charging capabilities of up to 100W via USB-C. Additionally, this versatile solution allows for remote control through RS-232 or GPI, ensuring a seamless and user-friendly experience in any videoconference setting.
Host - Laptop
1x USB-C connector
Supports USB-C DisplayPort Alternate Mode
DisplayPort up to 3840x2160p60 / 4096x2160p60
USB 3.0 (USB 3.1 Gen 1 / 5 Gbps)
USB 2.0 (480 Mbps)
Charges up to 100W
USB-C cable locking option
1x USB connector
USB 3.0 Type-B
1x HDMI connector
Up to 3840x2160p60 / 4096x2160p60
Cable locking option
Host - Room PC
1x USB connector
USB 3.0 Type-B
1x HDMI connector
Up to 3840x2160p60 / 4096x2160p60
Cable locking option
HDMI display output
Resolution
Up to 3840x2160p60 / 4096x2160p60 / 21:9 wide screen capable
Connector
HDMI with cable locking option
HDMI share output
Resolution
Up to 3840x2160p60 / 4096x2160p60 / 21:9 wide screen capable
Connector
HDMI with cable locking option
USB devices
Connectors
3 x USB 3.0 Type-A ports
Power
1.8A shared between downstream ports
Video - HDMI
HDCP compliance
Compliant with HDCP2.3, HDCP2.2 and HDCP1.4
HDMI compliance
Compliant with HDMI2.0b, HDMI1.4 and DVI1.0
Sampling frequency
600MHz
Video scaling
Crosspoint switch supports video downscaling from 4K to 1080p
Chroma subsampling
YUV/RGB
4:4:4, 4:2:2
CEC
Ability to send CEC commands to connected HDMI display sink
Audio - HDMI
Audio
Audio passthrough from input to output
Formats
LPCM, Dolby Digital and DTS up to 192kHz
Control
Control options
Front button – For laptop selection
RS232
GPI
LAN
USB
IP interface
10/100Mbps
Supports DHCP or static addressing
IP control available through RESTAPI and Telnet connections
RS-232 interface
4-pos terminal block connector
Baud rates: 9600 [default], 19200, 38400 and 115200
Data bits: 8
Stop bits: 1
Parity: None
Flow control: None
GPI interface
4-POS terminal block connector
2x Contact-closure control
GPI:
– Controlled by open-drain IO (short to ground) or driven IO
– Supported voltage range: 0 to 12V max
– Voltage threshold is 2.3V
VOUT:
– Able to power up the led on the button of our INO-Button accessory
– Logic-low level: 0 @ 0.5V
– Logic-high level: 4.5 @ 5V
Compatibility
Operating system
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38 and above)
Compatible videoconferencing systems
Crestron – Flex Series
Crestron – Flex Advanced Series
Poly – Studio Room Kit with HP Mini Conferencing PC
MAXHUB – MAXHUB XCore Kit
Logitech – Tap with Rally
Logitech – Tap with MeetUp
Logitech – Rally Bar Tap room systems
Lenovo – ThinkSmart Hub Gen 2 Microsoft Teams Rooms
Lenovo – ThinkSmart Core + Controller
Lenovo – ThinkSmart Core & IP Controller Kit
Jabra – PanaCast 50 Room System
Physical details
Dimensions (W x L x H)
25.11 cm x 10.97 cm x 3.26 cm
9.89” x 4.32” x 1.28”
Power supply
160W (85-264VAC 50/60Hz to 24V/6.67A DC)
Weight
770 g (1.69 lb)
Package content
1 x TOGGLE ROOMS
1 x USB-C to USB-C cable – 6 ft.
1 x USB 3.0 cable (USB-A to USB-B) – 3 ft.
2 x terminal block 4-pos
2 x mounting brackets
4 x M2.5 mounting screws for brackets on product
4 x screws for Toggle Rooms table/wall mount
1 x 24V/160W PSU
1 x power supply 85-264VAC 50/60Hz to 24V/6.67A DC
International adapters included in the box (USA/CA or EU/UK/AU/BIS)
1 x PSU mounting bracket
4 x screws for PSU table/wall mount
4 x rubber feet
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Mounting options
Ability to mount under the table or on a wall
Informations
Code UPC
051497418694
Origin
Canada
Warranty
2 years
Certifications
Certifications device
FCC, CE, UKCA, RoHS, IEC62368, RCM, SoV
Certifications power supply
FCC, CE, UKCA, RoHS, IEC62368, RCM, CCC, CB, EAC, VI, UL
TAA - Compliant
Yes

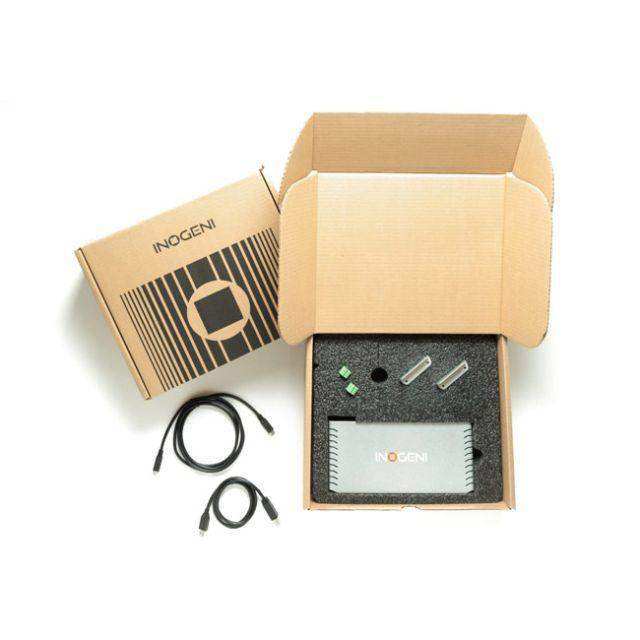

What is in the box
1 x TOGGLE ROOMS
1 x USB-C to USB-C cable – 6 ft.
1 x USB 3.0 cable (USB-A to USB-B) – 3 ft.
2 x terminal block 4-pos
2 x mounting brackets
4 x M2.5 mounting screws for brackets on product
4 x screws for Toggle Rooms table/wall mount
1 x 24V/160W PSU
1 x power supply 85-264VAC 50/60Hz to 24V/6.67A DC
International adapters included in the box (USA/CA or EU/UK/AU/BIS)
1 x PSU mounting bracket
4 x screws for PSU table/wall mount
4 x rubber feet
