Crestron HD-MD-4K-300-2G-B KIT 4K 3x1 Scaling Auto-Switcher and DM Lite Wall Plate Extender

Crestron SKU: HD-MD-4K-300-2G-B
No reviews

Price:
Sale price$2,200.00

Description

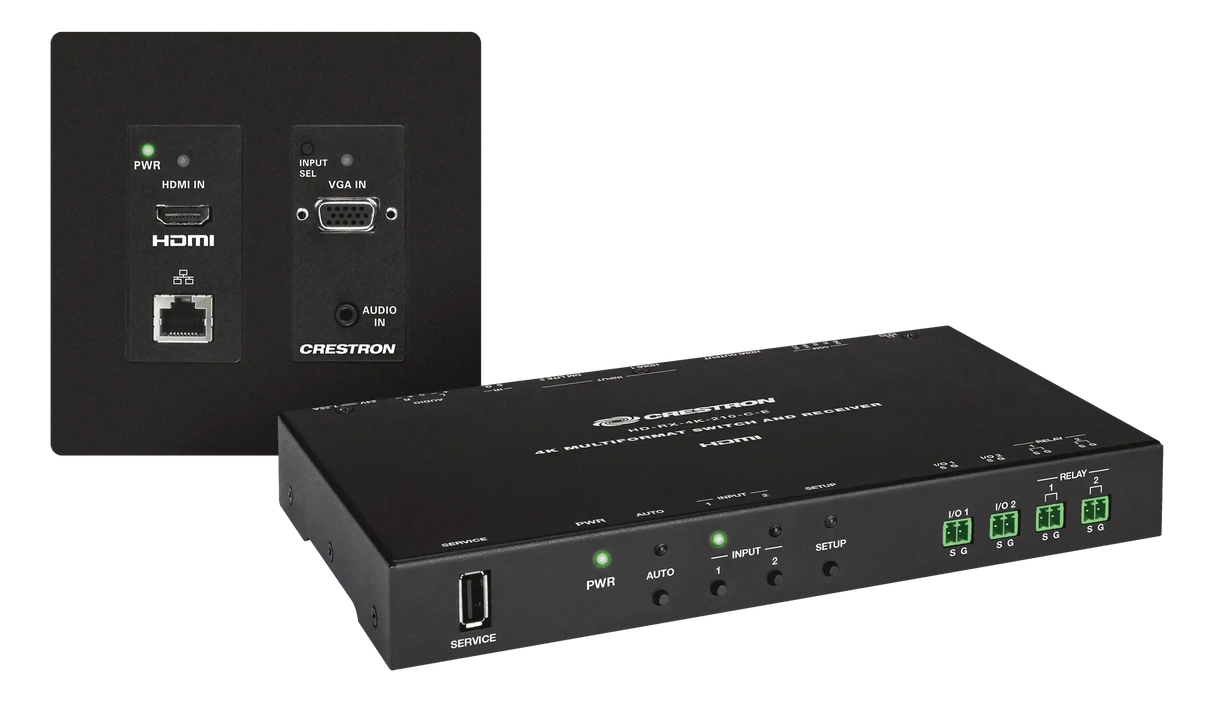

The Crestron® HD-MD-4K-300-2G provides a cost-effective multimedia presentation solution for classrooms and meeting spaces. Consisting of a wall plate transmitter (HD-TX-201-C-2G-E Series) and surface-mountable receiver (HD-RX-4K-210-C-E), the HD-MD-4K-300-2G extends an HDMI® or VGA signal over a CATx (CAT5e or higher) twisted pair cable. For resolutions up to 2K, the maximum transmission distance is 230 ft (70 m). For higher resolutions up to 4K, the maximum transmission distance is 130 ft (40 m).1

NOTE: Power is transmitted over the CATx cable that connects the transmitter to the receiver.

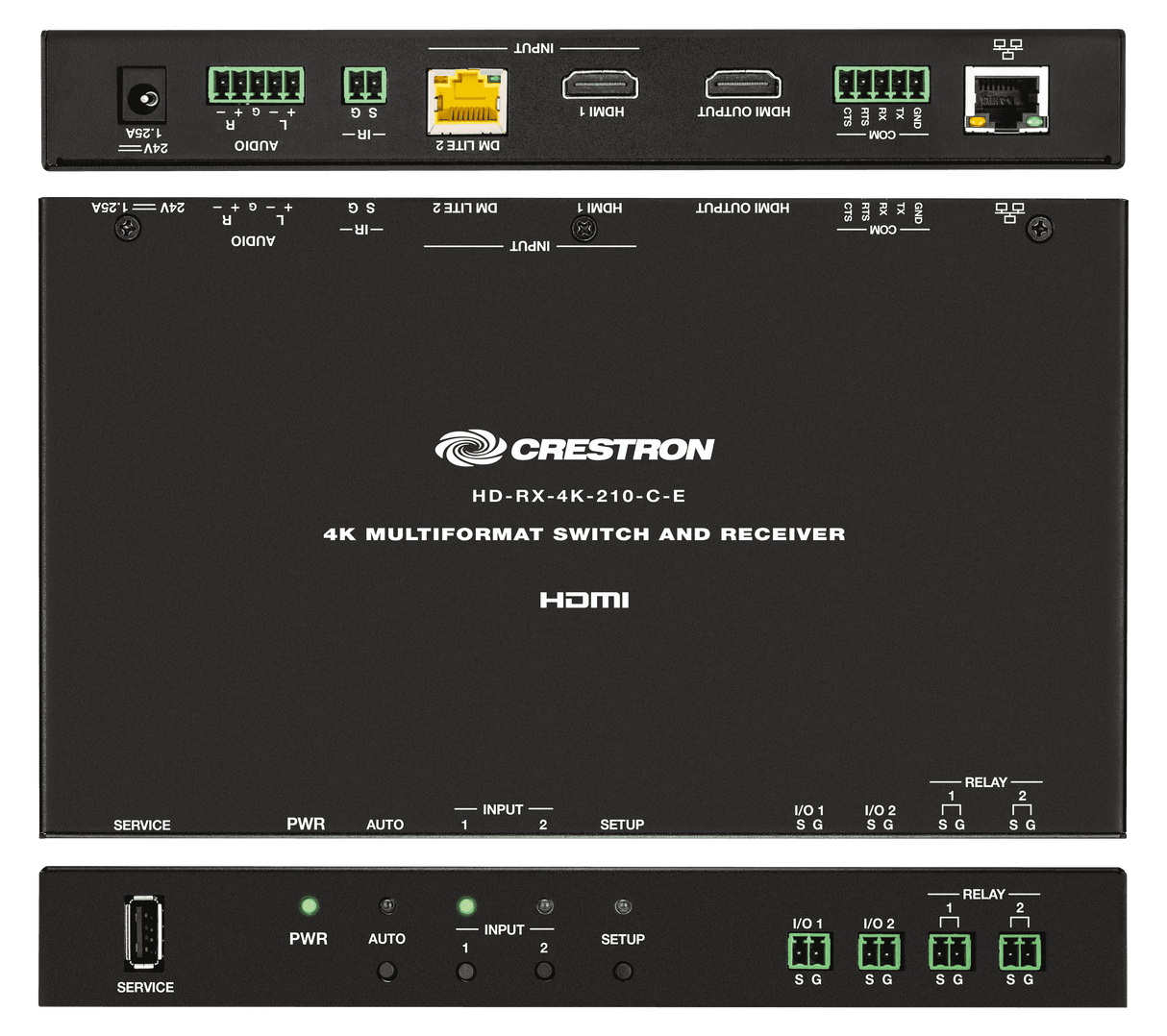

The transmitter provides one HDMI input and one VGA input with a complementary stereo analog audio input. The receiver provides an additional HDMI input that can be connected to a local AV source or to an optional Crestron media presentation wall plate (MP-WP152 Series, sold separately).

The HD-MD-4K-300-2G is available in two models: HD-MD-4K-300-2G-B and HD-MD-4K-300-2G-W. The HD-MD-4K-300-2G-B includes a black HD-TX-201-C-2G-E Series wall plate transmitter. The HD-MD-4K-300-2G-W includes a white HD-TX-201-C-2G-E Series wall plate transmitter.

Automatic Switching of Inputs
Automatic switching among the HDMI and VGA inputs on the transmitter and the HDMI input on the receiver can occur based on the last connected input or on the routing priority assigned to each input. Switching behavior is configurable using the web interface or programmable using a Crestron control system. In addition to automatic switching, input selection push buttons on the transmitter and receiver enable the desired input to be selected manually.

  • 4K60 4:2:0 capability
  • 2-gang wall plate transmitter and surface-mountable receiver with 3x1 AV switching, scaling, and signal extension functionality
  • One HDMI® input and one VGA input on transmitter and an additional HDMI input on receiver
  • One 4K scaling HDMI output on receiver
  • Automatic switching of inputs
  • Signal extension of video, audio, and power over a CATx cable—up to 230 ft (70 m) for resolutions up to 2K or up to 130 ft (40 m) for higher resolutions up to 4K
  • EDID management
  • HDCP management
  • Stereo audio de-embedding via the analog audio output
  • IR, RS-232, relay, and I/O control ports
  • CEC (Consumer Electronics Control) capability
  • Gigabit Ethernet connectivity
  • Convenience Ethernet port
  • Built-in web interface for easy configuration and monitoring
  • Compatibility with Crestron® 3-Series® or later control systems
  • .AV Framework™ technology support
  • XiO Cloud® service support
  • Native integration with Cisco Webex® and Touch 10 devices
  • Low-profile installation
  • Black wall plate transmitter (decorator style faceplate sold separately)
  • 100-240 VAC power pack included

At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.

  • Most in-stock orders placed Monday-Friday before 1PM PST ship the same day. Orders placed after 1PM will ship the next day of business. General restrictions apply; please see our full shipping policy here.
  • We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
