Crestron Retrofit Mounting Bracket for TSW‑1070 Series (Black) - TSW-1070-RMB-4-B
Crestron Retrofit Mounting Bracket for TSW‑1070 Series (Black) - TSW-1070-RMB-4-B is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron Retrofit Mounting Bracket for TSW‑1070 Series (Black) - TS...
Product Overview

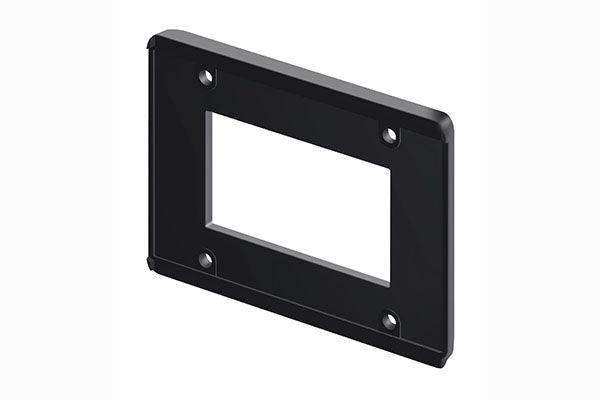

The Crestron TSW-1070-RMB-4-B is a black retrofit mounting bracket for TSW-1070 and TSS-1070 series touch screens. It is used to replace an existing TSW-1060 or TSS-10 series touch screen that was installed over a TSW-760/1060-MSMK multisurface mount kit. The bracket is compatible with the TSW-1070-LB light bar and matches black touch screen finishes.
Product Description
When upgrading from a TSW-1060 or TSS-10 panel that sits on a TSW-760/1060-MSMK multisurface mount, the existing mount can stay in place. The TSW-1070-RMB-4-B adapts that installation to accept a current TSW-1070 or TSS-1070 series touch screen, reusing the multisurface mount and its hardware. This reduces labor and avoids re-running the mount on the wall, ceiling, or other surface where it was originally installed.
The bracket is molded from plastic and finished in black to coordinate with black-finish touch screens. It installs into the TSW-760/1060-MSMK using provided mounting hardware, and it supports the TSW-1070-LB light bar for room-status indication. A white variant, the TSW-1070-RMB-4-W, is available for lighter panels. For help confirming your existing mount and panel pairing, Contact Creation Networks.
Key Features
- TSW-1060/TSS-10 retrofit — Adapts an existing TSW-760/1060-MSMK installation to a TSW-1070 or TSS-1070 series touch screen.
- Reuses existing mount — Installs into the TSW-760/1060-MSMK multisurface mount kit, avoiding a new surface installation.
- Light bar compatible — Supports the TSW-1070-LB light bar for room-status indication.
- Black finish — Plastic bracket finished in black to match black touch screens.
- Hardware included — Installs using the provided mounting hardware.
Designed for the Crestron TSW-1070 series touch screen.
Technical Specifications
| Model | TSW-1070-RMB-4-B |
| Function | Retrofit bracket for TSW-1070/TSS-1070 over an existing TSW-760/1060-MSMK |
| Material | Plastic bracket, black |
| Mounting | Installs into a TSW-760/1060-MSMK multisurface mount kit using provided hardware |
| Light bar compatibility | Compatible with TSW-1070-LB light bar |
| Dimensions | 4.33 in. H x 5.94 in. W x 0.31 in. D (110 x 151 x 8 mm) |
| Weight | 1.44 oz (41 g) |
