Crestron MPC3-102-B 3-Series® Media Presentation Controller 102 (Black)
Crestron MPC3-102-B 3-Series® Media Presentation Controller 102 (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Crestron MPC3-102-B 3-Series® Media Presentation Controller 102 (Bl...
A wall-mounted, PoE-powered 3-Series Control System® automated processor and control panel in one. Features a modern appearance with customizable backlit capacitive buttons. Mounts in a 1-gang U.S. electrical box. A retrofit 2-gang U.S. wall mounting option is also available.
The 3-Series® Media Presentation Controller 102 (MPC3-102) is a wall-mounted, PoE-powered 3-Series Control System® automated processor and control panel in one. Its modern appearance and customizable backlit capacitive buttons provide an ideal user interface for controlling AV and other functions. It offers fully-programmable functionality, supports web and cloud-based configuration and management, and integrates with Crestron Fusion® software as part of a complete managed enterprise solution.
Crestron® MPC3 series controllers are perfect for classrooms, meeting rooms, lecture halls, and training facilities – wherever a simple yet powerful controller is needed but space is limited. Use the MPC3-102 to control a video display or AV system, adjust lighting and window shades, or any other custom application.

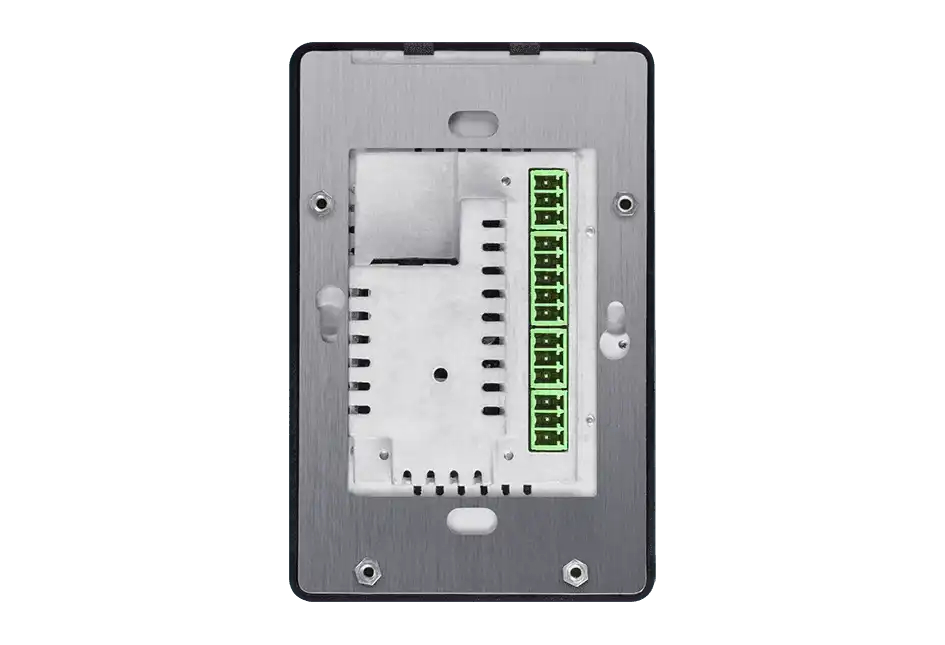

The MPC3-102 is designed for flush-mount installation in a wall using a 1-gang U.S. electrical box (not included). It can also be installed in a podium with no back box. A retrofit mounting bracket is also available to allow installation over a 2-gang U.S. electrical box, which offers an easy upgrade solution to replace an older MPC-M5 series controller.
Customizable Backlit Capacitive Buttons

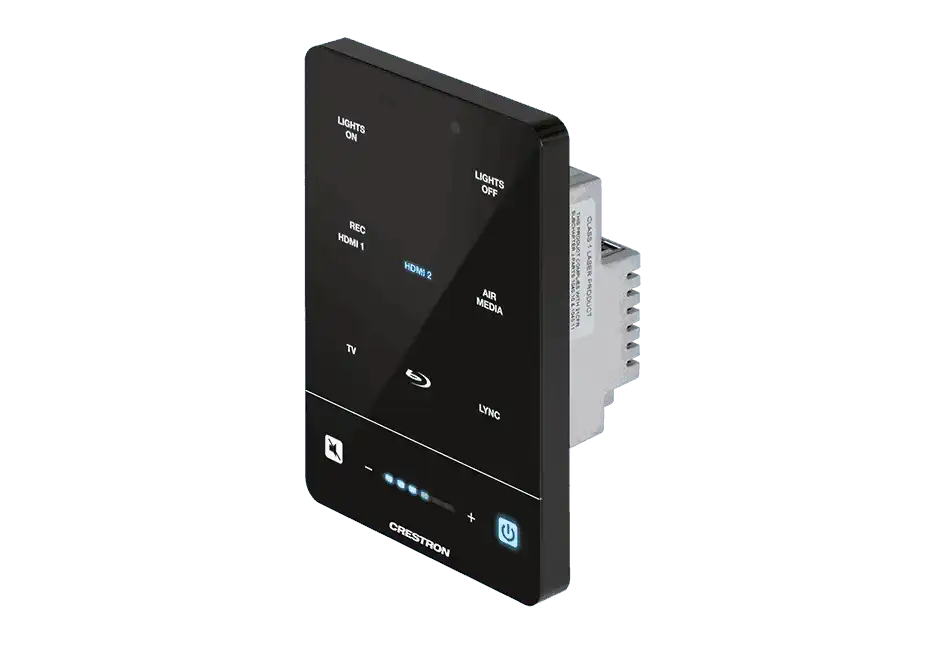

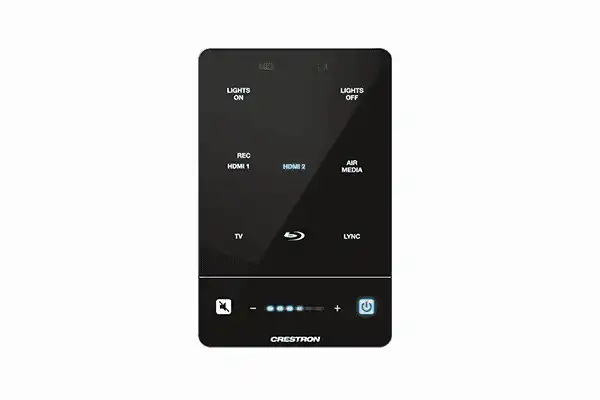

The MPC3-102 features nine backlit capacitive buttons, which can each be labeled using the icon chips provided, or custom labeled using laser-engravable chips (sold separately). Each button is backlit blue when active and white when inactive to provide clear indication of what media source or lighting scene is currently selected. Four additional buttons are included at the bottom along with a volume gauge for control of volume, mute, and power.
All buttons on the MPC3-102 are custom programmable to control any device or function. Built-in proximity sensing wakes the buttons as you approach, and autobrightness control maintains optimal visibility of the buttons under varying lighting conditions.
The MPC3-102 features an integrated, enterprise-grade 3-Series control processor. Crestron 3-Series delivers a dynamic and secure control system platform capable of faithfully managing a room full of disparate technologies. Its Modular Programming Architecture (optional[1]) allows the MPC3-102 to run multiple programs simultaneously for increased efficiency and flexibility. Rock solid networking and IP control afford seamless integration with other systems and devices, with add-on control capability using Crestron touch screens, wireless remotes, and mobile device apps, and remote management through Crestron Fusion® software and XiO Cloud® service.
No Programming Required!
Built‑in .AV Framework™ software technology delivers a fully functional AV presentation system with simplified web‑based configuration and a choice of control options and add‑ons. For complete details on the capabilities supported by .AV Framework, visit www.crestron.com/avframework .
Enterprise-Grade Security
The MPC3-102 is an enterprise-class control processor that can be deployed across hundreds of spaces and set up easily using a web browser, toolbox software, Crestron Fusion, or XiO Cloud. It employs standard network security protocols, including 802.1X network access control, Active Directory® software authentication, SSH, TLS, and HTTPS, to ensure reliability and compliance with your organization’s IT policies.
Power over Ethernet
Using PoE technology, the MPC-102 gets its operating power directly through the LAN wiring. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. A PoE Injector (PWE-4803RU) simply connects in line with the LAN cable at any convenient location. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-16) may also be used to provide a total networking solution with built-in PoE. All PoE injectors and switches are sold separately.
Features
- Crestron® 3-Series Control System® automated processor and control panel
- Mounts flush on a wall or lectern and fits in a 1-gang U.S. electrical box
- Nine buttons customizable with replaceable icon chips, plus power, volume, and mute buttons and a volume gauge
- Fully-programmable functionality
- Built-in .AV Framework™ software
- High-speed Ethernet LAN port
- Onboard Cresnet® network, RS-232, IR, relay, and Versiport control ports
- iPhone®, iPad®, and Android® device control app support
- XPanel computer and web based control
- Crestron Fusion® software room monitoring and scheduling support
- XiO Cloud® service provisioning and management support
- SNMP remote IT management support
- Native BACnet™ network/IP support
- Installer setup via software, web browser, or cloud
- Drag-and-drop, C#, and symbol based programming environments with full Unicode (multilanguage) support
- Enterprise-grade security and authentication
- IPv6 ready
- PoE network powered
| Control Engine | |
| Crestron 3-Series®; real-time, preemptive multithreaded/multitasking kernel; transaction-safe extended FAT file system; battery-backed nonvolatile real-time clock; supports up to 10 simultaneously running programs (license required [1]), preloaded .AV Framework™ base program | |
| Communications | |
| Ethernet | 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1X, SNMP, BACnet/IP [2], IPv4 or IPv6, Active Directory authentication, SMTP email client, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, IEEE 802.3af and 802.3at Type 1 PoE compliant |

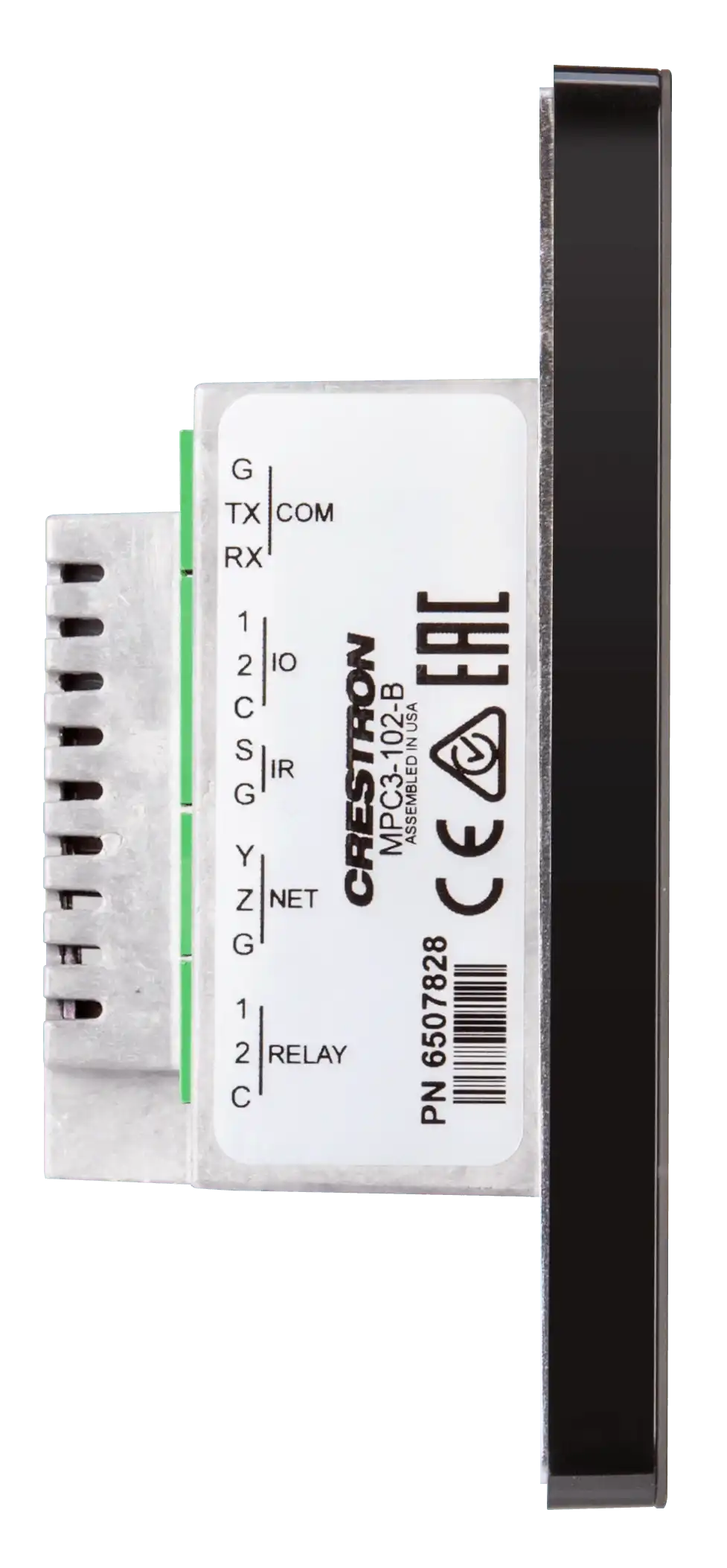

| Connectors | |
| LAN PoE | (1) 8-pin RJ45 connector, female; 100Base-TX Ethernet port; PoE (Power over Ethernet) PD (Powered Device) port |
| COM | (1) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support |
| I/O / IR | (1) 5-pin 3.5 mm detachable terminal block; Comprises (2) Versiport digital input/output or analog input ports (referenced to GND) and (1) IR/Serial port Digital Input: Rated for 0–24 VDC, input impedance 20k Ω, logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24 VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10 VDC, protected to 24 VDC maximum, input impedance 21k Ω with pull-up resistor disabled; Programmable 5 V, 2k Ω pull-up resistor per pin; IR/Serial output port; IR output up to 1.2MHz; 1-way Serial TTL/RS-232 (0–5 V) up to 115.2k baud; (IRP2 emitter sold separately) |
| NET | (1) 3-pin detachable terminal block; Cresnet master port |
| RELAY | (1) 3-pin detachable terminal block; Comprises (2) normally open, isolated relays; Rated 1 Amp, 30 V AC/DC; MOV arc suppression across contacts |
| Ground | (1) 6-32 screw; Chassis ground lug (flying lead with ring terminal included) |
| Controls and Indicators | |
| Assignable Buttons | (9) Projected capacitive push buttons, each may be labeled using one of 25 prelabeled icon chips or hidden using one of five blackout chips (included), custom laser-etched icon chips are available using optional MPB3/MPC3-BTN3-B ENGRAVED engravable icon chips (sold separately) |
| Mute | (1) Projected capacitive push button with mute icon |
| -/+ | (2) Projected capacitive push buttons labeled with - (minus) and + (plus) icons for volume control |
| Volume Gauge | (1) Blue LED multisegment bargraph for volume level indication |
| Power | (1) Projected capacitive push button labeled with power icon |
| HW-R | (1) Push button (behind front panel) for hardware reset (reboots the processor) |
| SW-R | (1) Push button (behind front panel) for software reset (restarts the software program) |
| Illumination | Each capacitive button is individually backlit—white when inactive and blue when active; autobrightness control adjusts all backlighting in three levels according to the ambient light level; backlighting may be dimmed or extinguished when unit enters idle state |
| NOTE: All capacitive buttons are custom programmable. | |
| Light Sensor | |
| Photosensor detects the ambient light level to enable autobrightness control | |
| Proximity Sensor | |
| Type | Eye-safe 940 nm laser ranging sensor |
| Range | Adjustable from 8 to 35 inches (20 to 90 cm) |
| Detects bodies within range and wakes the unit from standby or idle state | |
| Audio | |
| Key Click | Sounds when any button is pressed, adjustable to one of three volume settings or off |
| Power | |
| Power over Ethernet | IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) PoE Powered Device |
| Power Consumption | 4.5 W typical, 2.8 W idle |
| Environmental | |
| Temperature | 41 to 104 °F (5 to 40 °C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 15.4 BTU/hr typical, 9.6 BTU/hr idle |
| Construction | |
| Housing | Plastic with metal mounting plate, removable front panel with optional security screw |
| Flush Wall Mount | Mounts in a 1-gang U.S. electrical box (not included), mounts in a 2-gang U.S. electrical box using MPC3-101/102/201-RMB retrofit mounting bracket (sold separately) |
| Lectern Mount | Mounts in a 2.85 in. (72 mm) H x 2.04 in. (52 mm) W rectangular cutout using bracket provided |
| Dimensions | |
| Height | 4.62 in. (117 mm) |
| Width | 3.02 in. (77 mm) |
| Depth | 2.02 in. (51 mm) |
| Weight | |
| 9.59 oz (272 g) | |
Specifier Resources
Guides & Manuals
Reference Guide for 3-Series Control Systems
Spec Sheets
