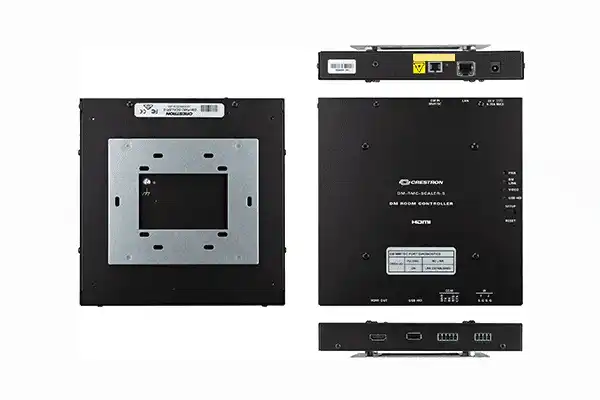

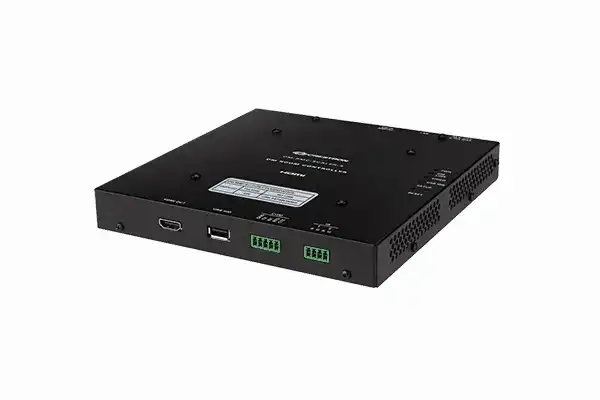

Crestron DM-RMC-SCALER-S DigitalMedia 8G™ Fiber Receiver & Room Controller w/Scaler

Availability: Call for Availability
Crestron SKU: DM-RMC-SCALER-S
No reviews
Price:
$1,980.00

Description

The DM-RMC-SCALER-S provides an advanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia™ system. It functions as a DM 8G® Fiber receiver, video scaler, and control interface, providing a single HDMI® output along with Ethernet, USB HID, RS-232, and IR control ports. Built-in scaling enables the connected display to handle any video resolution up to HD 1080p or WUXGA. Its compact, low-profile design allows the DM-RMC-SCALER-S to be installed discreetly behind a flat panel display or above a ceiling-mounted projector. It connects to the head end or source location using a single multimode fiber strand.[1]

DigitalMedia 8G™ Fiber
As the leader in HDMI and control system technologies, Crestron developed DigitalMedia (DM®) to deliver the first complete HD AV distribution system to take HDMI to a higher level. DigitalMedia allows virtually any mix of HDMI and other AV sources to be distributed throughout a home, office, school, or virtually any other facility. The latest generation of DM is called DigitalMedia 8G (DM 8G). Engineered for ultra high-bandwidth and ultimate scalability, DM 8G provides a true one-wire lossless transport for moving high-definition video, audio, Ethernet, and control signals over a choice of twisted pair or fiber optic cable.

DM 8G Fiber uses multimode fiber to enable signal distribution between buildings and over lengthy wire runs. DM 8G Fiber handles uncompressed Full HD 1080p video signals with support for 3D, Deep Color, and HDCP, as well as computer signals up to WUXGA. Audio capabilities include support for high-bitrate 7.1 audio formats like Dolby® TrueHD and DTS-HD Master Audio™ as well as uncompressed linear PCM. All signals are transported over one strand of multimode fiber, supporting distances up to 1000 feet (300 m) using CresFiber® 8G, or 500 feet (150 m) using other multimode fiber optic cable.[1]

    Key Features

    • DigitalMedia 8G™ Fiber receiver, high-definition scaler, and display controller
    • Connects to a DM® switcher or transmitter over one multimode fiber strand [1]
    • Supports cable lengths up to 1000 ft (300 m) using CresFiber® 8G, or 500 ft (150 m) using other multimode fiber [1]
    • Provides one HDMI® or DVI display output [2]
    • Handles any video resolution from standard NTSC 480i or PAL 576i, to HD 1080p60 w/Deep Color
    • Handles any computer resolution from VGA to UXGA/WUXGA
    • Scales the signal to match the native resolution of virtually any digital video display or computer monitor up to 1080p or WUXGA
    • Provides intelligent frame rate conversion
    • Includes content-adaptive noise reduction
    • Allows motion-adaptive de-interlacing or interlacing
    • Allows adjustable overscan or underscan up to 7.5%
    • Provides automatic 3D to 2D signal conversion [3]
    • Automatically passes 3D video without scaling to 3D capable displays [3]
    • Supports left/right eye steering for dual-projector 3D setups [3]
    • Scalable zoom feature enables 2x2, 3x2, 3x3, 4x3, or 4x4 video wall capability [6]
    • Handles Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio
    • HDCP compliant
    • Provides a 10/100 Ethernet LAN connection
    • Enables device control via CEC, IR, RS-232, and Ethernet
    • Enables USB HID signal extension for a local keyboard/mouse
    • Compatible with Crestron® USB over Ethernet Extenders [5]
    • Allows quick, easy setup and diagnostics
    • Low-profile design mounts to a 2-gang US, UK, or European wall box
    • Universal power pack included
