The Cresnet® bus is the communications backbone for many Crestron® keypads, lighting controllers, shade motors, sensors, and other devices. Cresnet is a simple, yet flexible 4-wire network that provides bidirectional communication and 24VDC power for Cresnet devices. Cresnet allows for both homerun and daisy-chain wiring topologies, with cable lengths up to approximately 3000 feet (915 meters) per run.

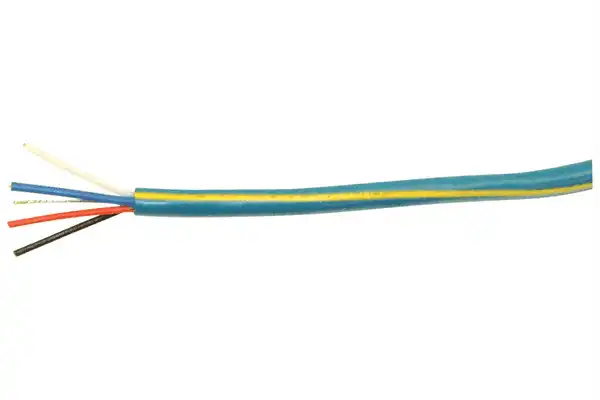

Within a single non-plenum PVC jacket, CRESNET-NP contains (1) 18 AWG pair for 24VDC and Ground, and (1) 22 AWG shielded twisted pair for control data. CRESNET-NP is available in four colors: teal, orange, black, or white.
Specs
Data Pair | ||
Colors | Blue/white | |
Conductors | (2) 22 AWG (0.33 mm²) stranded bare copper, twisted | |
Insulation | Foam Polyolefin | |
Shield | Aluminum/Polyester (100% coverage) | |
Drain | (1) 24 AWG (0.20 mm²) stranded tinned copper | |
Capacitance | 12.5 pF/ft (41 pF/m), nominal | |
Impedance | 100 Ohms, nominal | |
Power Pair | ||
Colors | Red/black | |
Conductors | (2) 18 AWG (0.82 mm²) stranded bare copper | |
Insulation | PVC | |
Shield | none | |
Outer Jacket | ||
Material | PVC | |
Thickness | 0.032 inch (0.813 mm) nominal | |
Outer Diameter | 0.250 inch (6.35 mm) nominal | |
Color Options | Teal w/yellow stripe, orange w/black stripe, black w/yellow stripe, or white w/gray stripe | |
Compliance | ||
NEC Article 800; UL Subject 13, Type CM; CSA Type CMG; RoHS |
