Crestron® CresFiber® 8G is multimode graded-index fiber optic cable with extended bandwidth for use with DigitalMedia 8G™ Fiber solutions, as well as standard DigitalMedia™ Fiber and Crestron HDMI® over Fiber.
High-performance CresFiber® 8G is multimode graded-index fiber optic cable engineered by Crestron® to deliver extended bandwidth for the reliable installation of multimode fiber-based Crestron systems. CresFiber 8G is tested to wavelengths up to 1550 nm, surpassing the performance of previous generation CresFiber as well as generic OM2 and OM3. Featuring ultra high-bandwidth laser-optimized cores, CresFiber 8G guarantees consistent performance over wire runs up to 1000 ft (300 m) for all DigitalMedia 8G™ Fiber solutions, as well as for standard DigitalMedia™ Fiber, Crestron HDMI® over Fiber, and other multimode fiber applications.

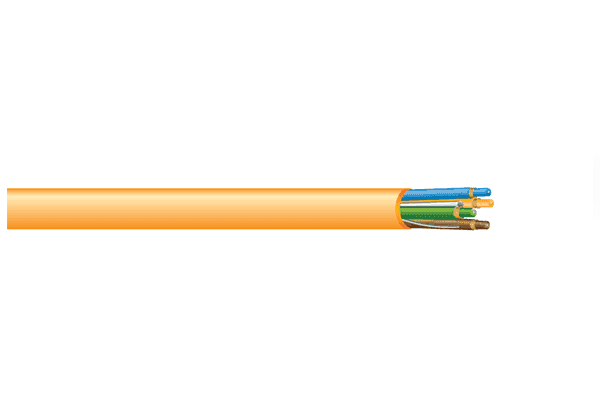

CresFiber 8G provides four individually jacketed fiber strands within a single reinforced outer jacket. Since many Crestron fiber applications require only one or two strands, the extra strands available in CresFiber 8G provide ample spares for backup, or may be utilized to support multiple devices over a single cable run. Breakout cable construction helps simplify termination, eliminating any need for a separate breakout assembly or intermediary splice.
|Multimode Fiber Strands (x4)|
|Fiber Core||Type: Multimode graded-index;
Core/Cladding Diameter: 50/125 µm nominal;
Minimum Laser Bandwidth/EMB: 600 MHz*km at 850 nm, 1200 MHz*km at 1300 nm, 600 MHz*km at 1550 nm;
Maximum Attenuation: 2.75 dB/km at 850 nm, 1 dB/km at 1300 nm, 1 dB/km at 1550 nm;
Dispersion: Less than 6 ns/km between 800-850 nm wavelengths
Diameter: 900 µm nominal;
Colors (1-4): Blue, Orange, Green, Brown
|Strength Member||Material: Aramid yarns|
|Jacket||Colors (1-4): Blue, Orange, Green, Brown;
Material: Low-smoke PVC;
Outer Diameter: 0.094 in (2.4 mm) nominal
|Construction||Breakout with overall jacket|
|Central Strength Member||Fiberglass epoxy rod (dielectric)|
|Outer Diameter||0.313 inch (8.0 mm) nominal or less|
|Color||Orange w/black text|
|Maximum Tensile Load||270 lbf (1200 N) for installation, 110 lbf (500 N) for operation|
|Minimum Bend Radius||6.3 in (160 mm) for installation, 3.15 in (80 mm) for operation|
|Crush Resistance (EIA 455-41)||100 N/cm|
|Impact Resistance (EIA 455-25)||25 impacts minimum|
|Flexing, ±90°||25 cycles minimum|
|Operating Temperature||+32° to +185°F (-0° to +85°C)|
|Installation Temperature||+32° to +167°F (0° to +75°C)|
|Storage Temperature||-4° to +185°F (-20° to +85°C)|
|40 lb/1000 ft (59 kg/km) nominal|
|OFNP (UL 910), CSA FT6|
