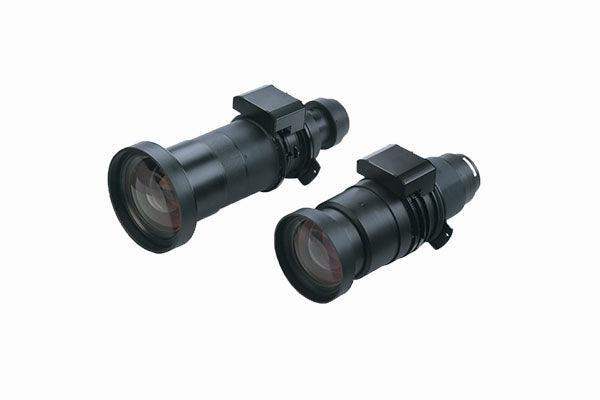

Christie Crimson Series 1.16-1.49:1 ILS Zoom Lens - 118-100111-02

Product Overview

The Christie 118-100111-02 is an ILS zoom projection lens with a 1.16-1.49:1 throw ratio on HD/WU projectors (1.25-1.6:1 on SXGA+ models), offered for Christie Crimson Series and M Series-class platforms. Every lens in this suite includes a true Intelligent Lens System with stepper-motor encoding, giving accurate and repeatable recall of all offset, zoom, and focus positions.

Product Description

This standard-throw zoom lens covers the projection distances most installations actually need. On HD/WU products the 1.16-1.49:1 throw ratio supports screen widths from 74 to 502 inches (188-1275 cm), with generous lens shift of +/-120% vertical and +/-42% horizontal. On SXGA+ products the effective throw ratio is 1.25-1.6:1, covering screen widths from 69 to 466 inches (175-1184 cm) with +/-100% vertical and +/-50% horizontal offset. The Intelligent Lens System automatically recognizes and calibrates the lens at installation, and stepper-motor-based encoding eliminates the drift found in DC-encoded motors, so saved lens positions return precisely, show after show. That repeatability makes the lens well suited to venues that switch formats and to rental inventories where lenses rotate between chassis. Confirm fit against your specific Crimson or M Series projector before ordering; our team can verify compatibility.

Key Features

• 1.16-1.49:1 Throw Ratio (HD/WU) — standard-throw coverage; 1.25-1.6:1 on SXGA+.
• Wide Screen Range — 74-502 in. (HD/WU) or 69-466 in. (SXGA+) screen widths.
• Generous Lens Shift — up to +/-120% vertical and +/-50% horizontal offset by model.
• True Intelligent Lens System — automatic recognition and calibration on install.
• Stepper-Motor Encoding — drift-free, repeatable recall of all lens positions.
• Crimson Series Compatible — offered for Christie Crimson Series 3DLP laser projectors.

Typical Applications

• Live events and touring with Crimson Series projector inventories
• Auditoriums and theaters at standard projection distances
• Houses of worship with mid-throw positions
• Rental and staging operations requiring repeatable lens recall

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which projectors does this lens fit?
It is offered for Christie Crimson Series and M Series-class projectors. Contact us with your chassis part number to confirm fit.

What screen sizes does it cover?
On HD/WU products, screen widths from 74 to 502 inches; on SXGA+ products, 69 to 466 inches.

How much lens shift is available?
HD/WU: +/-120% vertical and +/-42% horizontal. SXGA+: +/-100% vertical and +/-50% horizontal.

Why stepper-motor encoding?
It avoids the motor drift of DC-encoded designs, so saved offset, zoom, and focus positions are recalled accurately every time.
