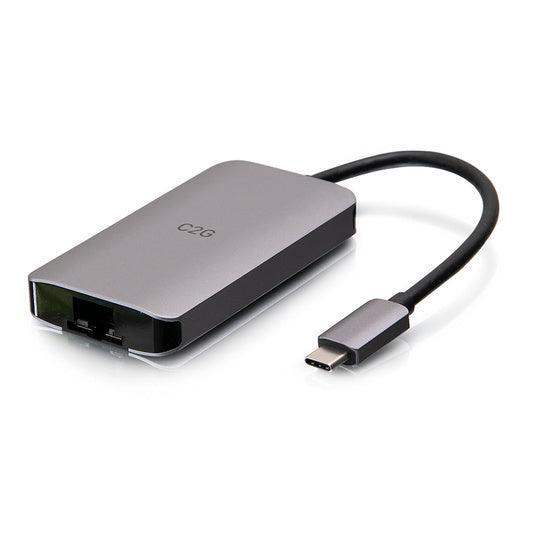

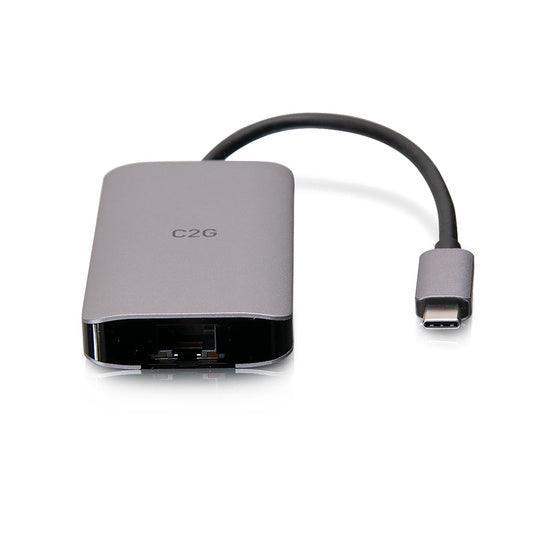

This USB-C 4-in-1 Mini Dock with HDMI, USB-A, Ethernet, and USB-C Power Delivery connects to USB-C or Thunderbolt™ 3 enabled laptops and is perfect for contributing to a desktop solution # making it ideal for inside reps that need essential connectivity while in the office or when working from home.
This USB-C mini dock supports up to 100W of power delivery to charge and power mobile laptops when using the USB-C power adapter that is included with the laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity.
This mini dock includes an HDMI port with a resolution up to 4K (3840 x 2160) at 30Hz for high definition audio/video. The USB-A and USB-C data ports support SuperSpeed USB 5Gbps data transfers # allowing up to 32GB of data to be downloaded in under a minute. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps. Optimize performance by connecting displays designed for 4K 30Hz signals and USB devices designed for 5Gbps transfer speeds.

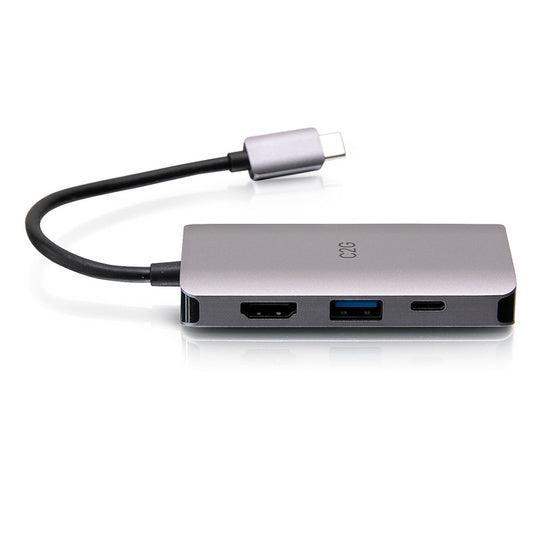

PORTS
4K HDMI: Connect to a 4K display via the HDMI port.
USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A port.
Gigabit Ethernet: Connect to local network for network and internet access.
USB-C Data and PD: Transfer data up to 5Gbps from a storage device and power a laptop or tablet with up to 100W power delivery.
Features and Benefits
Supports up to 100W of power delivery to keep your laptop charged
Supports HDMI resolutions up to 4K, for viewing your screen content at full HD
USB-A and USB-C ports for fast data transferring
Hard wired Ethernet port for when security requires it or when WiFi™ is not available
Reversible, symmetrical USB-C connector, so no guessing how to plug it into your laptop
Plug-and-play, no additional software or drivers needed
5 year warranty, for peace of mind – with the highest quality docking stations
Additional Technical Specifications
Signal Specifications
HDMI: Resolution up to 4Kx2K @ 30Hz
USB-A 3.0 Female: Supports Data up to 5Gbps
USB-C Female: Supports Data up to 5Gbps; Supports PD Charging with Power up to 100W
RJ45 Port: 10M/100M/1000M
Note: Multiple USB-C interfaces support plug-and-play, hot swap
Electrical Specifications
Cable: USB 3.1 OD: 4.2MM ~ Black TPE No Print
Rated Temperature: 80°C ; Voltage: 30V
Conductor Resistance: At 20°C Max 34AWG: 860 OHMS/KM
Insulation Resistance: 10M-KM MIN at 20°C DC 500V.(EIA—364—21)
Dielectric Strength: AC 500V/1 Minute No Breakdown.(EIA—364—20)
Physical Specifications
Operating Temperature: 0° to +45°C; 15-85% RH (Non-Condensing)
Storage Temperature: -10° to +70°C; 15-85% RH (Non-Condensing)
Physical Characteristics
Connector P1: USB 3.1 Type-C Male: Terminal Contacts Gold Plated 3U, Nickel Plated Shell; Black Insulation
Connector P2-1: USB-C Female: 24 Pin Iron Shell, Nickel Plated, Black Core with PCB
Connector P2-2: HDMI Female: 19 Pin A/F Iron Shell Nickel Plated, Gold Plated Terminal G/F with PCB
Connector P2-3: RJ45 Female: Iron Shell - Nickel Plated, Black Core, Gold Plated Pin with PCB
Connector P2-4: USB-A Female: Blue Adhesive (PA9T) Iron Case Nickel Plated ~ Pin Gold Plated with PCB
Molding Material P1: Black TPE Conform RoHS
Molding Material P2: Black TPE Conform RoHS
Inspection: 100% Test for Short/Open
Inspection: 100% Transmission rate test (300M/S); 100% Full Functional Tests to all Ports
Product is CE marked and conforms to 2011/65/EU ROHS 2
