Product Overview

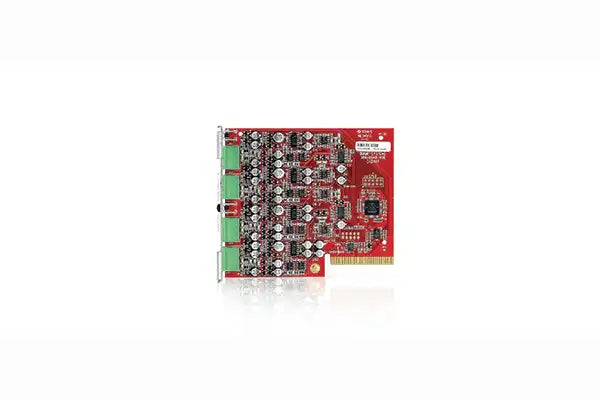

The Biamp Tesira SIC-4 is a modular analog input card for use with Tesira SERVER and SERVER-IO devices. Each SIC-4 provides four channels of mic or line level audio input on electrically balanced, plug-in barrier strip connectors, with comprehensive software control of each channel.
Product Description
The SIC-4 adds four balanced mic or line level inputs to a Tesira SERVER or SERVER-IO chassis. Software control of each input includes gain with a clip indicator, +48V phantom power, mute, level, and signal invert for reverse polarity. Gain is adjustable from 0 to 66 dB in 6 dB increments, and the level fader range spans -100 dB to +12 dB. The card is RoHS compliant and AES grounded, and is covered by Biamp Systems’ five-year warranty.
Key Features
- Four Balanced Inputs — Provides four channels of balanced mic or line level input.
- SERVER / SERVER-IO Card — Modular card for Tesira SERVER and SERVER-IO devices.
- Adjustable Gain — 0 to 66 dB gain adjustable in 6 dB increments, with clip indicator.
- Phantom Power — +48V phantom power available per channel.
- Wide Fader Range — -100 dB to +12 dB level fader range plus signal invert.
- Standards Compliant — RoHS compliant and AES grounded.
Typical Applications
- Conference room
- Boardroom
- House of worship
- Commercial meeting space
Technical Specifications
| Type | 4-channel modular mic/line input card |
| Host Devices | Tesira SERVER and SERVER-IO |
| Inputs | 4 balanced mic/line, plug-in barrier strip connectors |
| Gain | 0 - 66 dB in 6 dB increments, with clip indicator |
| Phantom Power | +48V |
| Level Fader Range | -100 dB to +12 dB, with signal invert |
| Compliance | RoHS compliant, AES grounded |
| Biamp 5-Year Warranty | Covered by Biamp Systems’ five-year warranty. |
