The DCM-1 ceiling microphone includes Beamtracking™ technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The DCM-1 microphone actively tracks and intelligently mixes conversations from around the table, allowing far-end conference participants to experience the conversation naturally. The Devio DCM-1 has four software-selectable elevation angle modes for optimal sound pickup, and a second DCM-1 microphone can be added to the meeting room if needed.
- Beamtracking technology actively tracks and intelligently mixes conversations around the table
- Three 120-degree zones for 360 degrees of coverage
- Three LED mute status indicators
- Four selectable elevation angle modes
- User-adjustable mic height

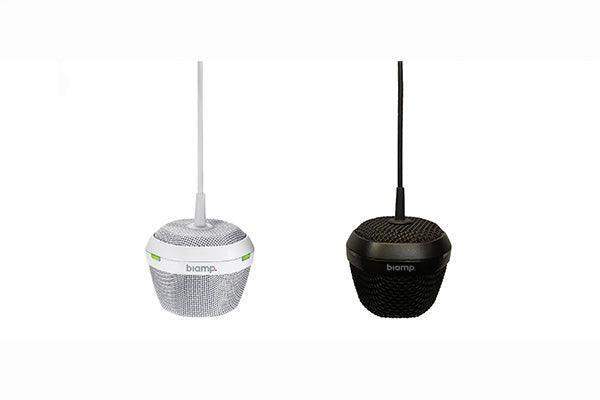

- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Easy single-cable installation process
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 for daisy-chain connection to another DCM-1 microphone (maximum of two mics per daisy chain)
- Covered by Biamp Systems' five-year warranty
DATA SHEET

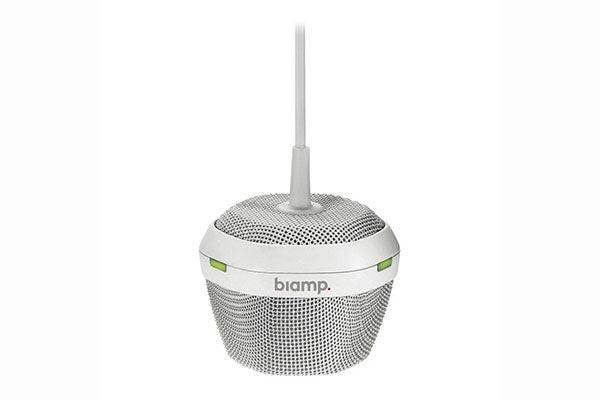

| Pendant Microphone |
|
| Color |
White |
| Microphone Technology |
8-Element Digital Array |
| Frequency Response |
150 Hz - 16 kHz, ± 3 dB |
| Polar Pattern |
Active Beamformed |
| Power |
< 1 W, phantom powered from plenum box |
| Pendant Cable Length |
5m (16ft) |
| Connector |
Custom 2-pin, cable length (4.9 ft [1.5 m]) |
| Dimensions (H x W x D) |
2" (51 mm) x 2.5" (63 mm) x 2.5" (63 mm) |
| Weight |
0.38 lbs (0.17 kg) |

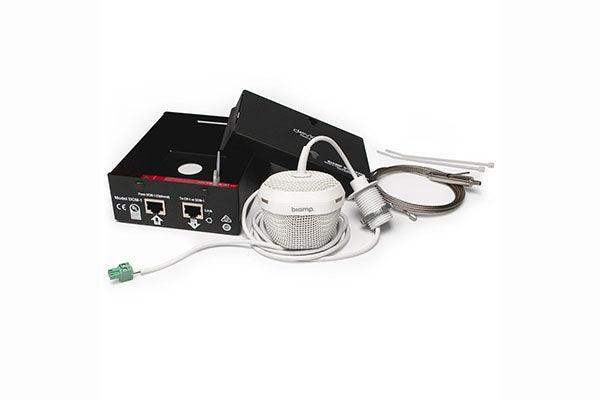

| Plenum Box |
|
| Power |
< 1 W, phantom powered from CR-1/SCR-20/SCR-25 |
| Connectors |
Two RJ-45: one between DCM-1 plenum box and CR-1/SCR-20/SCR-25, the other between DCM-1 plenum box and additional DCM-1 plenum box |
| Dimensions (H x W x D) |
2" (51 mm) x 4" (102 mm) x 5.4" (137 mm) |
| Weight |
0.86 lbs (0.39 kg) |
