Product Overview
The Barco ClickShare Hub Pro is a premium modular video conferencing room system built for hybrid meetings in larger and more demanding spaces. It pairs native Microsoft Teams Rooms with 4K wireless content sharing from two next-generation ClickShare Buttons that use Wi-Fi 6E and USB-C DisplayPort. Built on the Microsoft Device Ecosystem Platform (MDEP), the Hub Pro delivers enterprise-grade security and centralized management. Dual and ultrawide display support makes it suited to boardrooms and large meeting spaces where multiple sources and remote participants share the screen.
Product Description

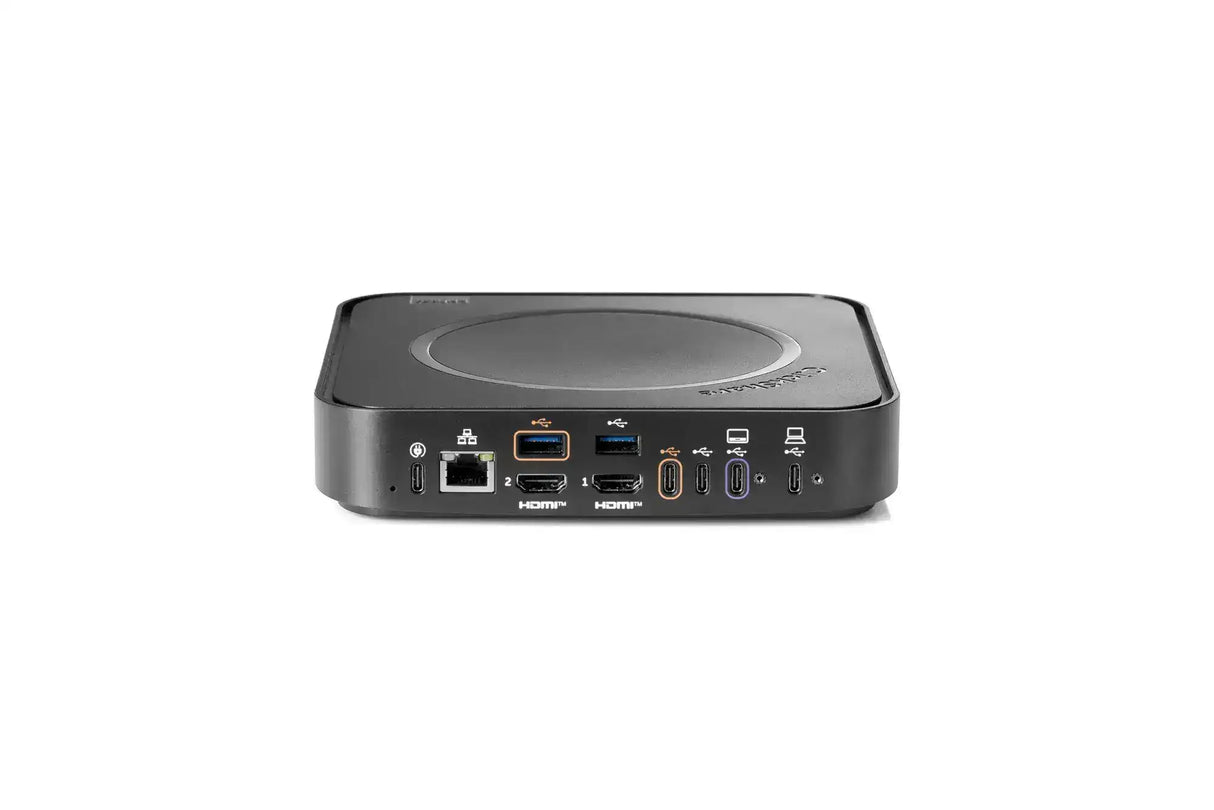

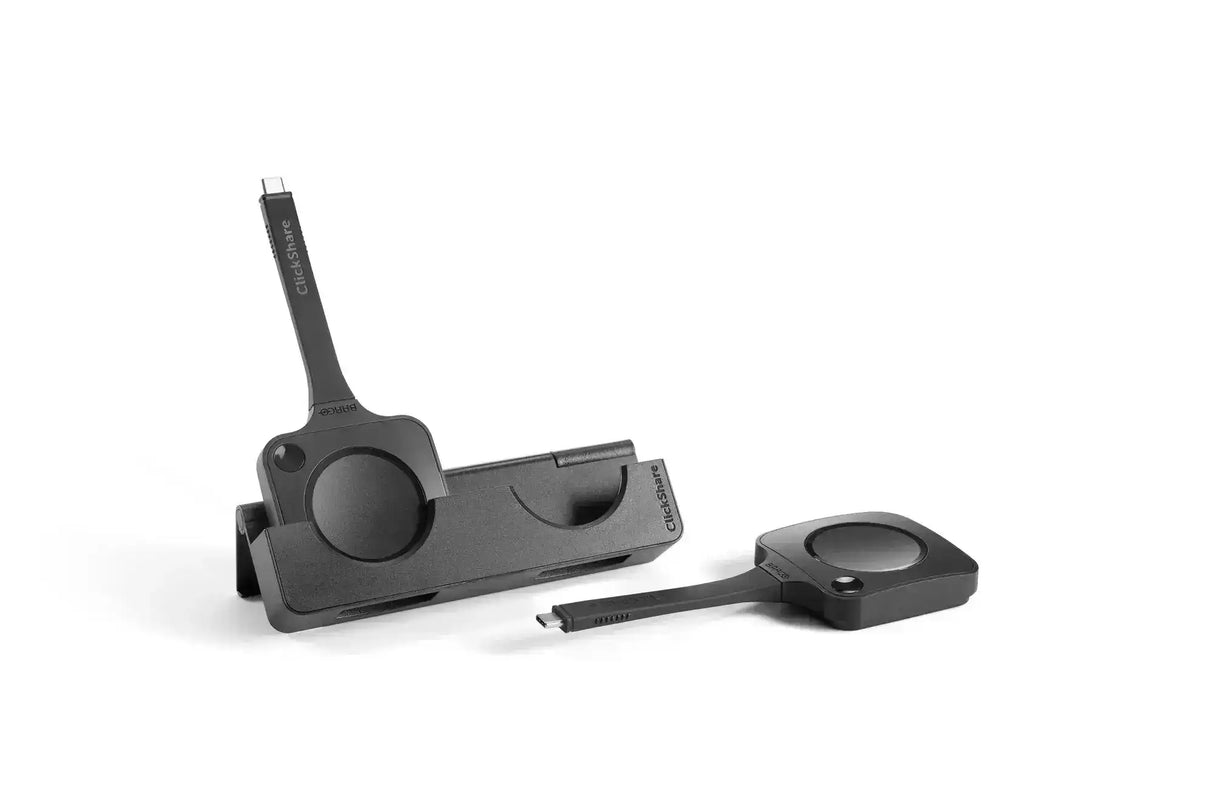

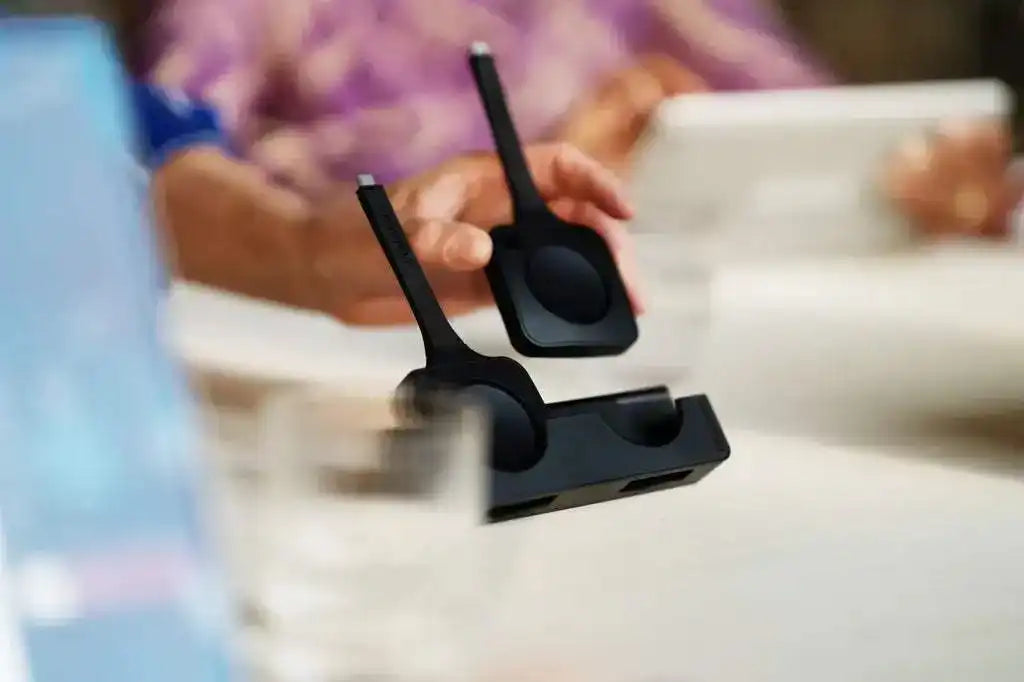

ClickShare Hub Pro acts as the compute and connectivity core of a Microsoft Teams Room, working with certified video bars, cameras, and speakers to run the meeting platform while ClickShare handles wireless presentation. Meeting hosts start a call with a single tap on the Control Panel, and in-room participants share content by pressing a ClickShare Button or connecting through USB-C DisplayPort with no software install and no need to join the corporate network. As shown in the product gallery, the compact base unit offers extensive rear connectivity, including dual HDMI outputs for dual-display rooms, while the Button-and-tray set keeps transmitters organized at the table. The two included Buttons share 4K content wirelessly at up to 30m (100ft) from the base unit. For organizations standardizing across room sizes, the Hub Pro complements the more compact ClickShare Hub Core and the all-in-one ClickShare Bar Core. Browse the full lineup in our Barco ClickShare collection.
Key Features
- Native Microsoft Teams Rooms — The Hub Pro runs as a certified Teams Room on the Microsoft Device Ecosystem Platform, integrating with existing UC infrastructure.
- 4K wireless content sharing — Two next-generation ClickShare Buttons with USB-C DisplayPort share 4K content with one click.
- Dual and ultrawide display support — Two HDMI 2.0 outputs drive dual displays, with HDMI-1 supporting ultrawide WUHD up to 5120x2160 at 30Hz.
- Guest-friendly USB-C sharing — Guests present over USB-C DisplayPort with no app to install and no need to join the company network.
- Enterprise-grade security — The system is encrypted and secure by design, with compliance built on the MDEP platform.
- Cloud management — Configure, monitor, and manage the room remotely through Barco XMS Cloud.
- Wi-Fi 6E wireless — Supports 802.11 a/b/g/n/ac/ax/be across 2.4GHz, 5GHz, and 6GHz bands plus Bluetooth 5.3.
- Sustainable design — Carries the Barco Eco label A+ with low standby power draw.
Typical Applications
- Boardrooms requiring dual or ultrawide displays
- Large meeting spaces and conference rooms
- Executive and all-hands rooms running Microsoft Teams Rooms
- Training rooms with multiple in-room presenters
Technical Specifications
| Meeting platform | Native Microsoft Teams Rooms, built on Microsoft Device Ecosystem Platform (MDEP) |
| Video outputs | HDMI-1: UW5K WUHD (5120x2160) @30Hz HDMI 2.0; HDMI-2: 4K UHD (3840x2160) @30Hz HDMI 2.0; eDP Control Panel: HD (1280x800) @60Hz DP 1.4 |
| Video inputs | 4K UHD (3840x2160) @30Hz HDMI 2.0 |
| Audio output | USB, HDMI, Bluetooth |
| ClickShare Buttons included | 2 (next-gen, USB-C DisplayPort) |
| Wireless protocol | IEEE 802.11 a/b/g/n/ac/ax/be; IEEE 802.15.1 BT 5.3 |
| Frequency bands | 2.4GHz, 5GHz, 6GHz (DFS in select countries) |
| Range | Max. 30m (100ft) between Button and Base Unit |
| Connections | 1x Ethernet LAN 1Gbit, 1x USB-C PD 3.1 EPR, 2x HDMI output, 2x USB-C 2.0/3.0, 1x USB-A 2.0/3.0, USB-C DisplayPort outputs, front USB-C 2.0/3.0 |
| Operating system support | Windows 10 or higher; macOS 14 (Sonoma) and 15 (Sequoia) |
| Security & management | Encrypted, secure by design; XMS Cloud management and reporting; Kensington lock |
| Dimensions (HxWxD) | 37 x 180 x 180 mm; 720g |
| Power | External USB-C charger 100W (PD3.0 SPR) / 180W (PD3.1 EPR); operational 160W max |
| Certifications | FCC / CE |
| Warranty | 3 years standard |
Frequently Asked Questions
Does the ClickShare Hub Pro work with Microsoft Teams and Zoom? The Hub Pro runs as a native Microsoft Teams Room. Connected laptops can also run Teams, Zoom, or Webex when sharing through a ClickShare Button or USB-C.
What is the difference between a ClickShare Button and the app? The Button is a plug-and-share transmitter for one-click 4K presentation, while the ClickShare desktop and mobile apps let users share from a device without a Button. Guests can also share over USB-C DisplayPort.
How is the Hub Pro managed and secured? It is encrypted and secure by design, built on the Microsoft Device Ecosystem Platform, and managed remotely through Barco XMS Cloud for configuration, monitoring, and reporting.

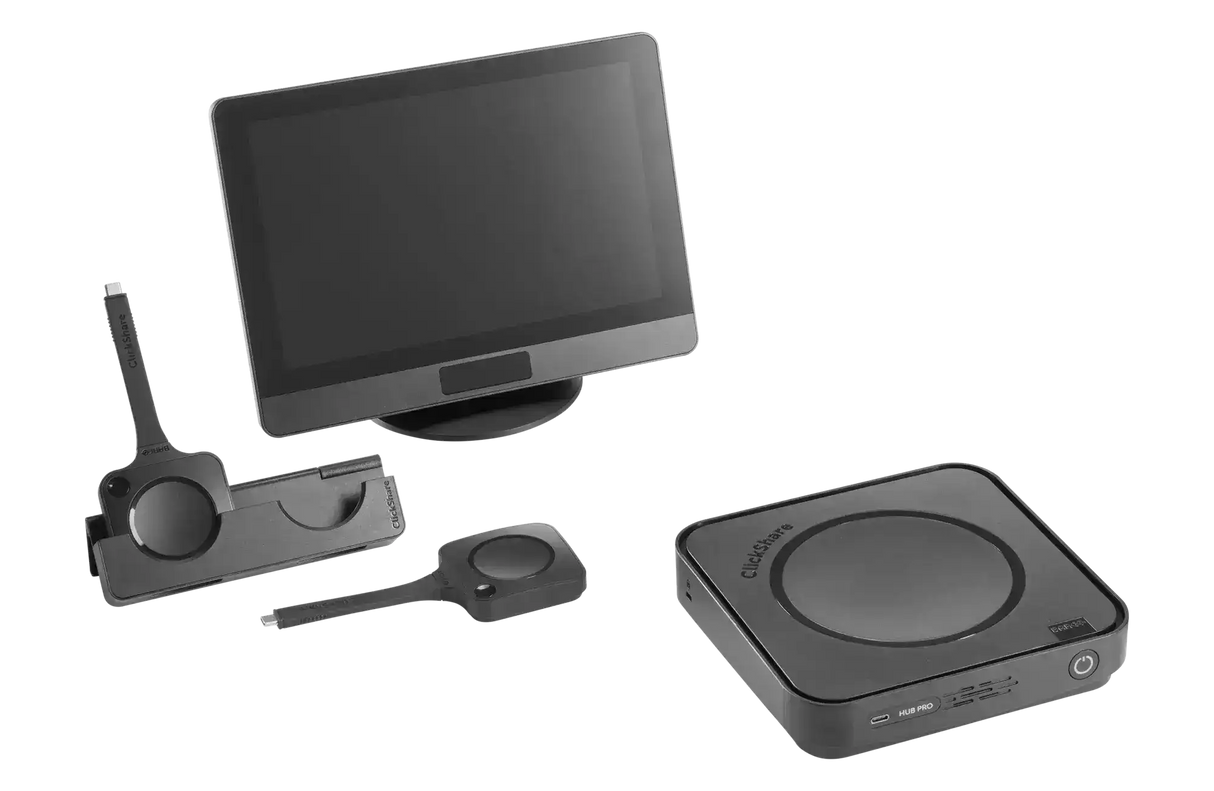

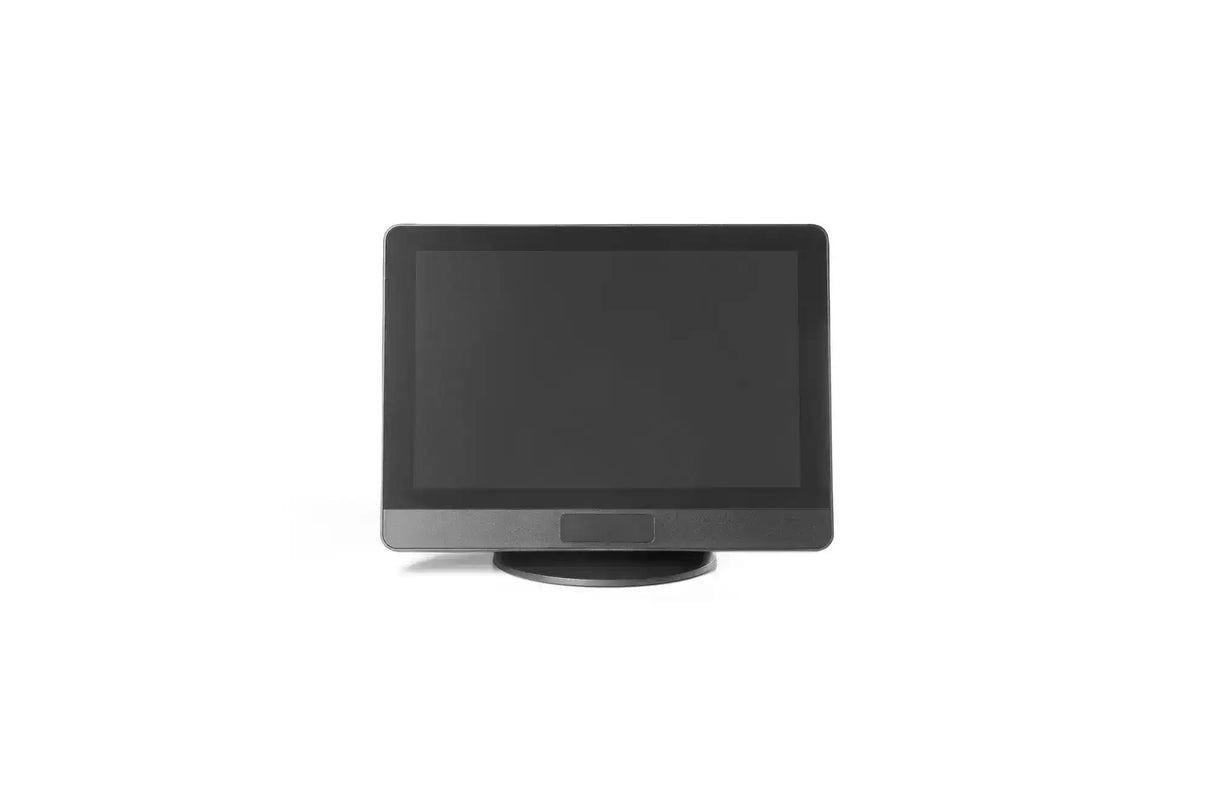

What is included? The Hub Pro base unit ships with two next-generation ClickShare Buttons featuring USB-C DisplayPort. Cameras, speakers, and the Control Panel are part of the broader modular system.
How many displays does it support? The Hub Pro supports dual displays and ultrawide screens through its two HDMI 2.0 outputs.
What warranty applies? The Hub Pro carries a 3-year standard warranty.
