AMX MD-702 – 7-Inch Modero G5 Wall-Mount Touch Panel (Black)
Product Overview

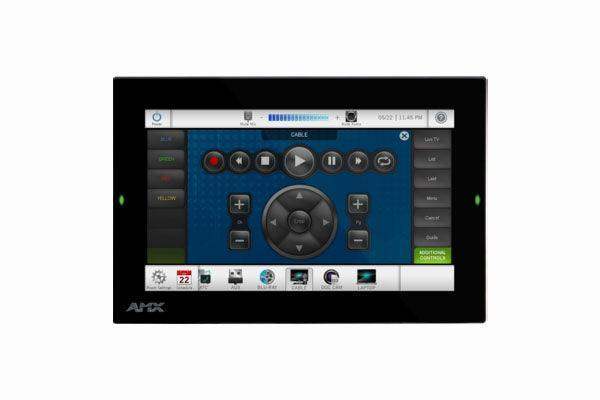

The AMX MD-702 is a 7-inch Modero G5 wall-mount touch panel with a capacitive multi-touch display, integrated AMX control, and PoE power. It is designed for conference rooms, classrooms, and corporate AV environments requiring a sleek, professional-grade wall-mount controller that works natively with the AMX NetLinx ecosystem.
Product Description
The AMX MD-702 7-inch wall-mount touch panel combines a high-resolution capacitive multi-touch display with native AMX NetLinx integration, PoE power, and support for streaming media previews directly on the panel face. As a professional AV room control touch panel, it is programmed in NetLinx Studio or via TPDesign5 and communicates directly with AMX NX Series controllers, MUSE controllers, and the broader NetLinx ecosystem. The Modero G5 platform supports live video preview, enabling display of current source content on the panel face for intuitive source selection. The MD-702 suits enterprise conference rooms, boardrooms, and meeting spaces where a wall-mount touch panel AV controller with a clean, professional aesthetic is required.
Key Features
- 7-inch capacitive multi-touch display — Responsive, high-resolution interface for AV room control.
- PoE powered (802.3at) — Single cable installation; no separate power supply at the panel.
- Live video preview — Display current AV source content directly on the panel face.
- Native NetLinx integration — Direct connection to AMX NX and MUSE controllers.
- TPDesign5 compatible — Full graphical UI design flexibility.
- Proximity sensor — Auto wake on approach for energy efficiency.
Typical Applications
- Conference room wall-mount AV control
- Boardroom touch panel controller
- Classroom AV interface
- Corporate meeting room panel
Competitor Comparison
| Feature | AMX MD-702 | Crestron TSW-770 | Extron TLP Pro 720T |
|---|---|---|---|
| Screen Size | 7 inch | 7 inch | 7 inch |
| PoE Power | ✓ Yes | ✓ Yes | ✓ Yes |
| Live Video Preview | ✓ Yes | ✓ Yes | ✗ No |
| Design Tool | TPDesign5 | Crestron Toolbox | Extron GUI Designer |
| Ecosystem | AMX NetLinx | Crestron | Extron |
The MD-702 matches the TSW-770 on core features including live video preview and PoE, while offering native AMX NetLinx integration for AMX-standardized deployments. The Extron TLP Pro 720T lacks live video preview at a comparable price point.
Technical Specifications
| Specification | Value |
|---|---|
| Display | 7-inch capacitive multi-touch |
| Power | PoE 802.3at |
| Connectivity | 10/100 Ethernet |
| Color | Black |
| SKU | FG5969-55BL |
