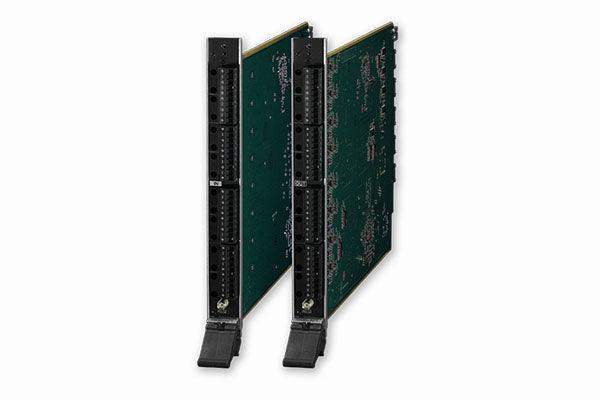

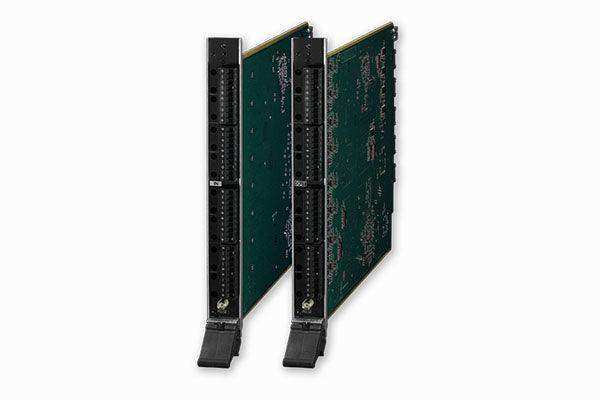

AMX DGX3200-ASB – Enova DGX Audio Switching Board Kit for DGX3200

Product Overview

The AMX DGX3200-ASB is a 40×40 audio switching board kit for the Enova DGX 3200 matrix switcher enclosure, providing embedded digital audio mixing with full per-output DSP control. It supports 32 embedded digital audio inputs and 32 outputs, each with independent volume, 10-band parametric EQ, balance, and sync delay. JITC-approved as of April 2023, it qualifies for U.S. government and DoD AV system installations.

Product Description

The DGX3200-ASB expands the Enova DGX 3200 with dedicated audio matrix switching scaled to a 40×40 configuration. Each of the 32 output channels includes independently configurable 10-band parametric EQ, volume, balance, and up to 200 ms of sync delay for audio-video alignment in large venue or multi-zone environments. Input compression is fully adjustable per channel with configurable attack, release, ratio, and threshold values. A downmix input, fed from any selectable DGX input board, can be switched to all embedded or auxiliary Dante-encoded audio outputs, supporting broadcast-level audio routing within the DGX 3200 platform. The board is compatible with Dante AoIP audio infrastructure and JITC-certified for federal deployment.

Key Features

• 40×40 Audio Switching Matrix: Full matrix audio routing sized for the Enova DGX 3200, with independent per-output DSP control.
• 10-Band Parametric EQ Per Output: Variable center frequency, gain, Q, and multiple filter types per output channel for precision audio shaping.
• Independent Input Compression: Per-channel attack (1–2000 ms), release (10–5000 ms), ratio (1–20), and threshold (-60 to 0 dB) control.
• 200 ms Sync Delay Per Output: Audio delay adjustment for alignment in distributed display and multi-zone commercial AV environments.
• Dante-Compatible Downmix Routing: Downmix from any DGX input switchable to all embedded and auxiliary Dante-encoded audio outputs.
• Input Gain Compensation: -24 dB to +24 dB in 1 dB steps for consistent input level normalization.
• JITC Approved (April 2023): Certified for use in U.S. federal and Department of Defense AV system installations.

Typical Applications

• Enova DGX 3200-based enterprise AV systems requiring embedded audio matrix switching
• Government and DoD facilities requiring JITC-certified audio components
• Auditoriums, large conference facilities, and multi-zone commercial spaces with per-zone DSP requirements
• Multi-building campus AV installations where centralized audio routing and DSP control are needed

Technical Specifications

Frequently Asked Questions

Which Enova DGX enclosures is the DGX3200-ASB compatible with?
The DGX3200-ASB is designed for the Enova DGX 3200 enclosure. For DGX800 and DGX1600 enclosures, refer to the DGX800/1600-ASB. For the DGX6400, refer to the DGX6400-ASB.

Does the DGX3200-ASB support Dante audio networking?
Yes. The downmix input can be routed to auxiliary Dante-encoded audio outputs, enabling Dante AoIP integration. For a version with deeper native Dante capability, see the DGX3200-ASB-DAN.

Is the DGX3200-ASB approved for government AV installations?
Yes. The DGX3200-ASB carries JITC approval (April 2023) for use in U.S. federal and DoD AV systems.
