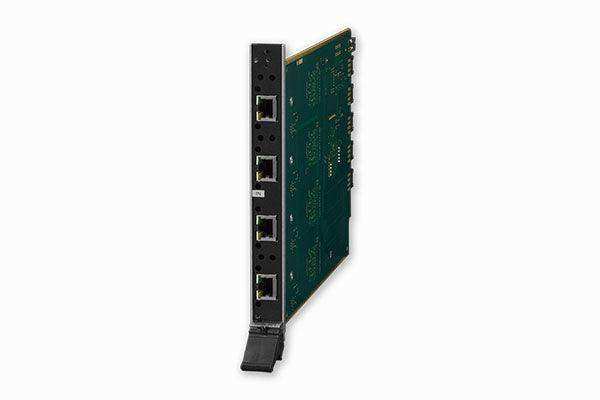

AMX DGX-I-DXL – Enova DGX DXLink Twisted Pair Input Board
AMX DGX-I-DXL – Enova DGX DXLink Twisted Pair Input Board is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
AMX DGX-I-DXL – Enova DGX DXLink Twisted Pair Input Board
AMX DGX-I-DXL – Enova DGX DXLink Twisted Pair Input Board
Product Overview
The AMX DGX-I-DXL is a DXLink twisted pair input board for Enova DGX enclosures, enabling Cat-5e/6 DXLink source connections directly into the DGX matrix — replacing long HDMI cable runs with structured cabling from presenter stations, equipment rooms, and remote source locations into the DGX routing fabric.
Product Description
The AMX DGX-I-DXL modular DXLink twisted pair input board terminates Cat-5e/6 DXLink connections from DX-TX transmitters or DXLink-enabled sources directly at the Enova DGX matrix enclosure, enabling HDMI source signals to enter the DGX routing fabric over structured cabling infrastructure rather than HDMI cable. This makes it the standard DGX input board choice for campus AV systems where sources are in separate rooms or buildings from the DGX chassis, allowing sources to be cabled to the DGX via the building's Ethernet cabling plant. It supports HD signal levels and pairs with DGX HDMI or DXLink output boards for a complete DXLink signal chain through the matrix.
Key Features
- DXLink twisted pair input — Terminates Cat-5e/6 DXLink source connections at the DGX.
- Structured cabling source integration — HDMI sources enter the matrix over Cat cable, not HDMI.
- DGX modular slot board — Installs into DGX800/1600/3200/6400.
- Pairs with DGX output boards — Flexible DXLink-to-HDMI or DXLink-to-DXLink routing.
Technical Specifications
| Specification | Value |
|---|---|
| Input Type | DXLink twisted pair (Cat-5e/6) |
| Signal | HD (up to 1080p) |
| Compatible Enclosures | DGX800, DGX1600, DGX3200, DGX6400 |
| SKU | FG1058-570-FX |
Typical Applications
- HD AV signal input over twisted pair to DXLink endpoints in enterprise conference rooms and multi-zone meeting facilities
- Enova DGX systems distributing HD video to display locations over structured cabling up to 100 meters
- Digital signage and multi-display environments using DXLink HD twisted pair for signal extension from the DGX matrix
- Government and corporate facilities using DXLink HD twisted pair as the signal transport layer in DGX-based AV systems
Frequently Asked Questions
Which enclosures are compatible with this DXLink twisted pair board?
The board is compatible with Enova DGX 8, 16, 32, and 64 Digital Media Switcher Enclosures.
What cable type is required for DXLink twisted pair operation?
DXLink twisted pair boards operate over Cat 6 or Cat 6A UTP or STP cable. Refer to AMX DXLink endpoint specifications for exact cabling requirements and distance limits.
Can DXLink HD twisted pair boards and DXLink 4K60 boards coexist in the same DGX enclosure?
Yes. The Enova DGX enclosures support mixed board configurations, allowing HD and 4K60 DXLink boards to coexist within the same matrix system.
