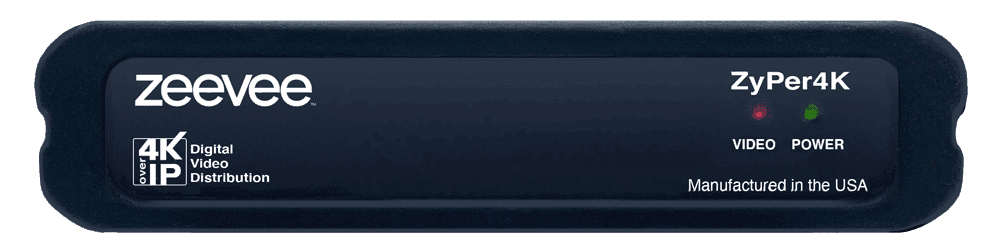

ZeeVee Z4KENCC3XS ZyPer4K-XS Uncompressed 4K Copper Encoder

ZyPer4K-XS HDMI 2.0 input Encoder, with IP streaming via 10Gbit/fiber. Supports HDMI and analog audio input. USB supported with between ZyPer4K XS/XR devices. Includes power supply. Compatible with any ZyPer4K Decoder. Cables not included; Product Family: IP; Product Type: Encoder; Warranty: 3 Years; Tariff Code: 8525501000; Modulation: IP; Maximum Resolution: 4K uncompressed; Input/Output Type: HDMI 2.1; Average Data Rate: 10 Gbps; Channel.

The ZyPer4K-XS platform allows for the distribution and switching of uncompressed 720p, 1080p HD, Ultra HD and 4K resolution content, audio and control via off-the-shelf 10Gb Ethernet switches. Its IP-based architecture enables the switching from one source to another without any frame loss – even at 4K resolutions. It also offer a 1GB utility port and USB human interface device class (USB HID) support for devices such as keyboards, mice, game controllers and alphanumeric displays.

In addition to their reduced form factor, these encoders and decoders offer extra features including lightweight and durable chasses that enable them to be placed virtually anywhere. Built-in support for 10Gb Power over Ethernet (PoE) enables the delivery of both data and power throughout an IP network over ethernet cables, allowing for a clean and efficient deployment. Fanless thermal management keeps the units from overheating without generating distracting sound.

“Our ZyPer4K line of SDVoE AVoIP encoders and decoders have become mainstays for many of our integrator partners, and ZyPer4K-XS is our response to their requests for a powerful signal distribution solution for specialized applications in tight spaces or environments requiring quiet operation,” said Joe Chordas, vice president, marketing and North American sales, ZeeVee. “These models further extend the ZyPer 4K family, the industry’s largest offering of AVoIP solutions, that can be deployed virtually anywhere.”

Like ZeeVee’s current SDVoE encoders and decoders, standard features of the ZyPer4K-XS includes:

• Uncompressed zero latency UltraHD (4K/60) video, audio and control
• Lossless transport of 7.1 audio signals including all encoded formats and uncompressed linear PCM
• HDMI 2.0 (full 4K 4:4:4 60Hz support)
• HDCP 2.2 compliant
• 128-bit AES encryption
• Supports HDR10 and HDR10+
• ZMP (ZyPer Management Platform) with software GUI allows simple set-up and control of ZyPer4K
• Video wall and multiview support
