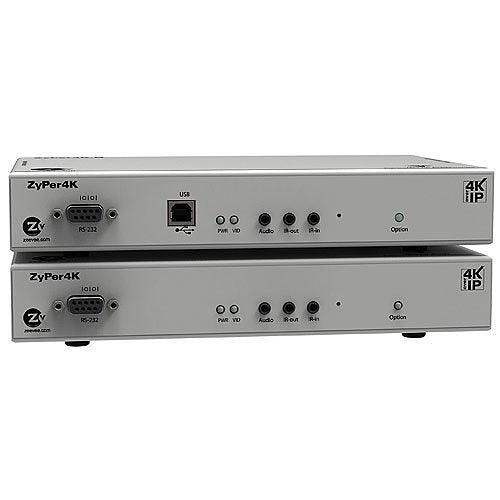

ZeeVee Z4KANLENCC3 ZyPer4K Extended HDMI 2.0 & Analog Video Copper Encoder
ZeeVee Z4KANLENCC3 ZyPer4K Extended HDMI 2.0 & Analog Video Copper Encoder is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
ZeeVee Z4KANLENCC3 ZyPer4K Extended HDMI 2.0 & Analog Video Cop...
ZyPer4K Uncompressed 4K Encoder/Decoder
The ZyPer4K platform allows for the distribution and switching of high definition uncompressed video, audio, and control using ZyPer4K encoder and decoder modules and off-the-shelf 10Gb Ethernet switches (both fiber and copper).
Uncompressed 4K
ZyPer4K delivers perfect pixel for pixel reproduction of uncompressed 720p, 1080p HD, Ultra HD, and 4K resolution content directly over a standard 10Gb Ethernet network. ZyPer4K eliminates the need to have a separate AV network or proprietary matrix switcher for video and other AV content.
Change sources and content instantly without programming
IP based architecture enables you to instantly switch from one source to another without any loss of frames - even at 4K resolutions.
USB 2.0 and KVM Control
ZyPer4K with USB support enables remote access to cameras, keyboards, mice and other devices (KVM) that offer flexibility in securing or accessing equipment such as digital media players that may be stored in remote locations.
Features
- Connectivity Technology: Wired
- Maximum Operating Distance: 98425.20 ft
- Graphics Modes: 4K UHD
- Maximum Video Resolution: 4096 x 2160
- Network (RJ-45): Yes
- HDMI In: Yes
- USB: Yes
- Media Type Supported: Twisted Pair
- Media Type Supported: Optical Fiber
- Twisted Pair Cable Standard: Category 6a
- Transmitter Height: 1.50"
- Transmitter Width: 5.70"
- Transmitter Depth: 6.90"
- Transmitter Weight (Approximate): 1.94 lb
Specifications
| General Information | |
| Manufacturer | ZeeVee, Inc |
| Manufacturer Part Number | Z4KANLENCC3 |
| Manufacturer Website Address | http://www.zeevee.com |
| Brand Name | ZeeVee |
| Product Line | ZyPer4K |
| Product Model | Z4KANLENCC3 |
| Product Name | ZyPer4K Z4KANLENCC3 Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 98425.20 ft |
| Video | |
| Graphics Modes | 4K UHD |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| USB | Yes |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics | |
| Transmitter Height | 1.50" |
| Transmitter Width | 5.70" |
| Transmitter Depth | 6.90" |
| Transmitter Weight (Approximate) | 1.94 lb |
