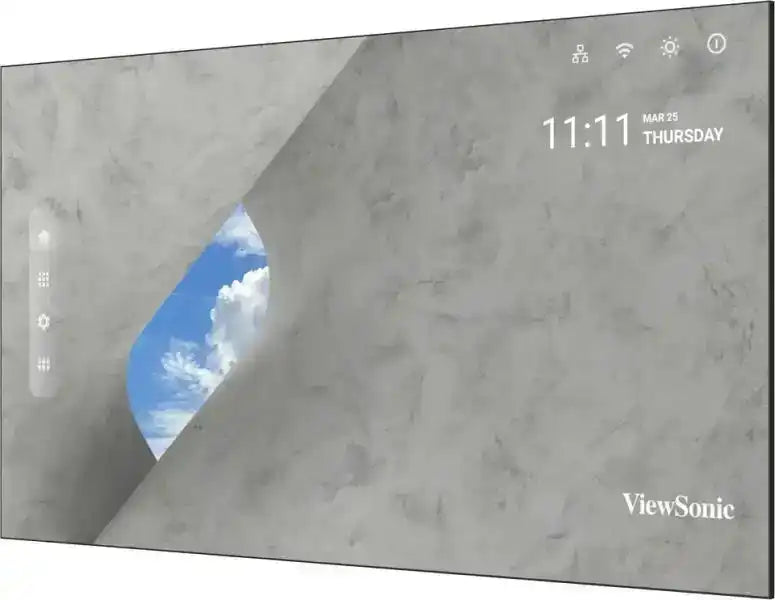

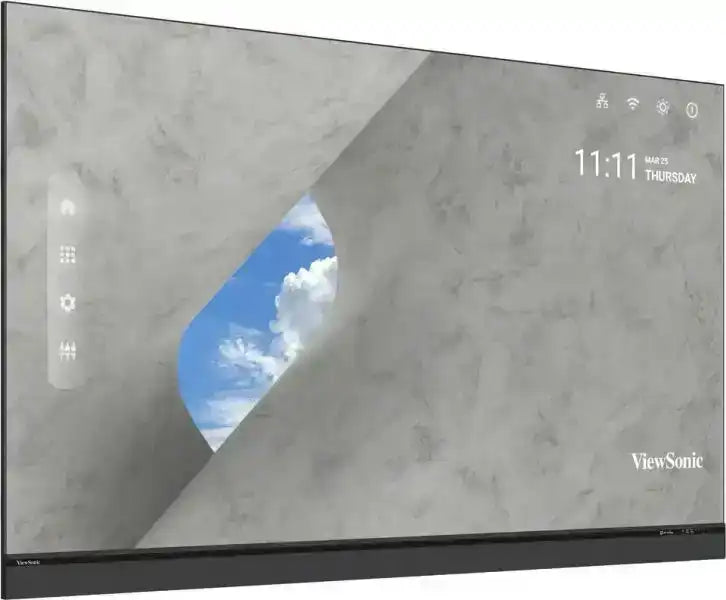

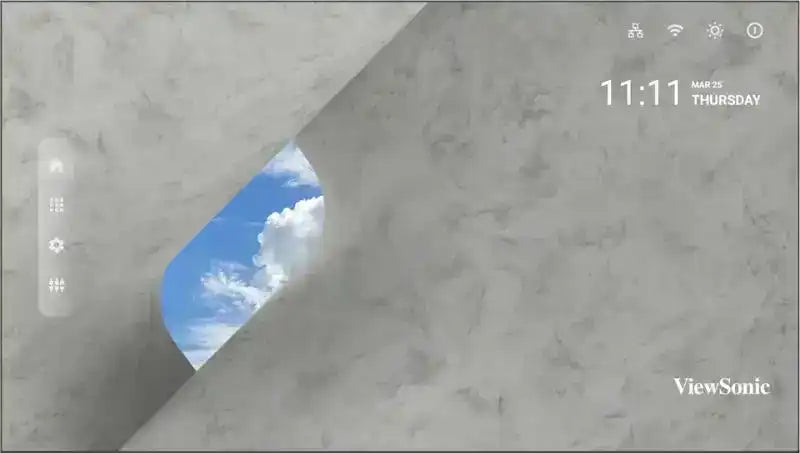

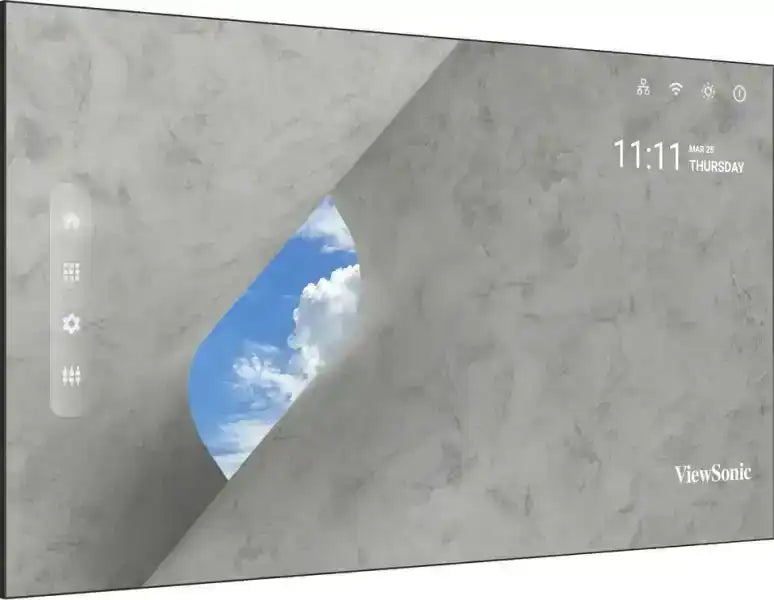

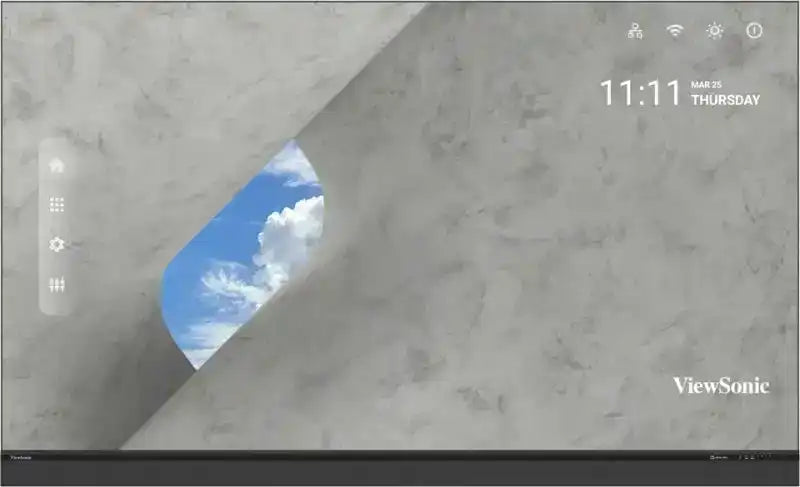

ViewSonic LDP136-071C 136” 4K UHD All-in-One Direct View LED Display

Pixel-Perfect Displays, Simplified

LDP Series Pre-Configured All-in-One LED Displays

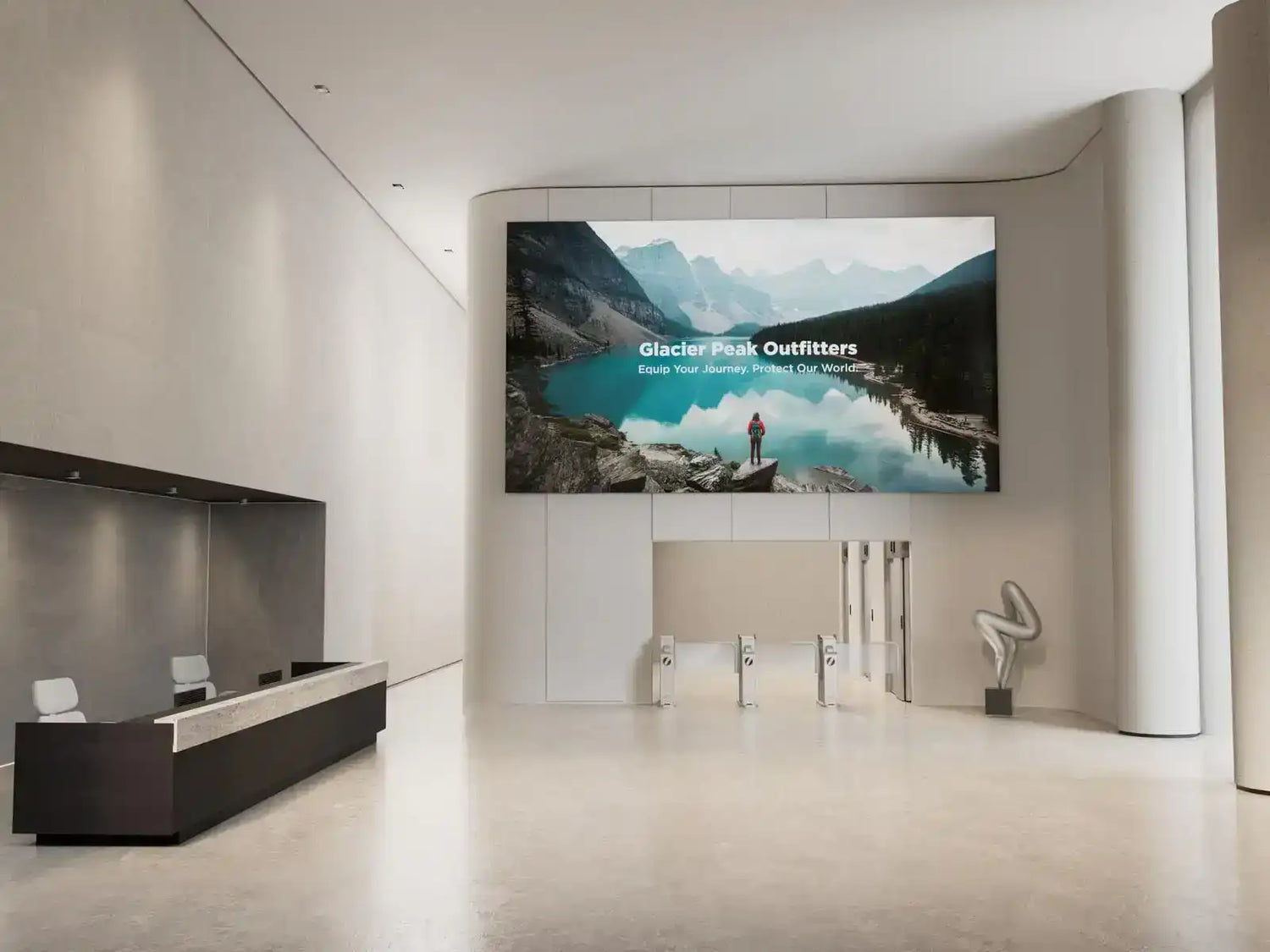

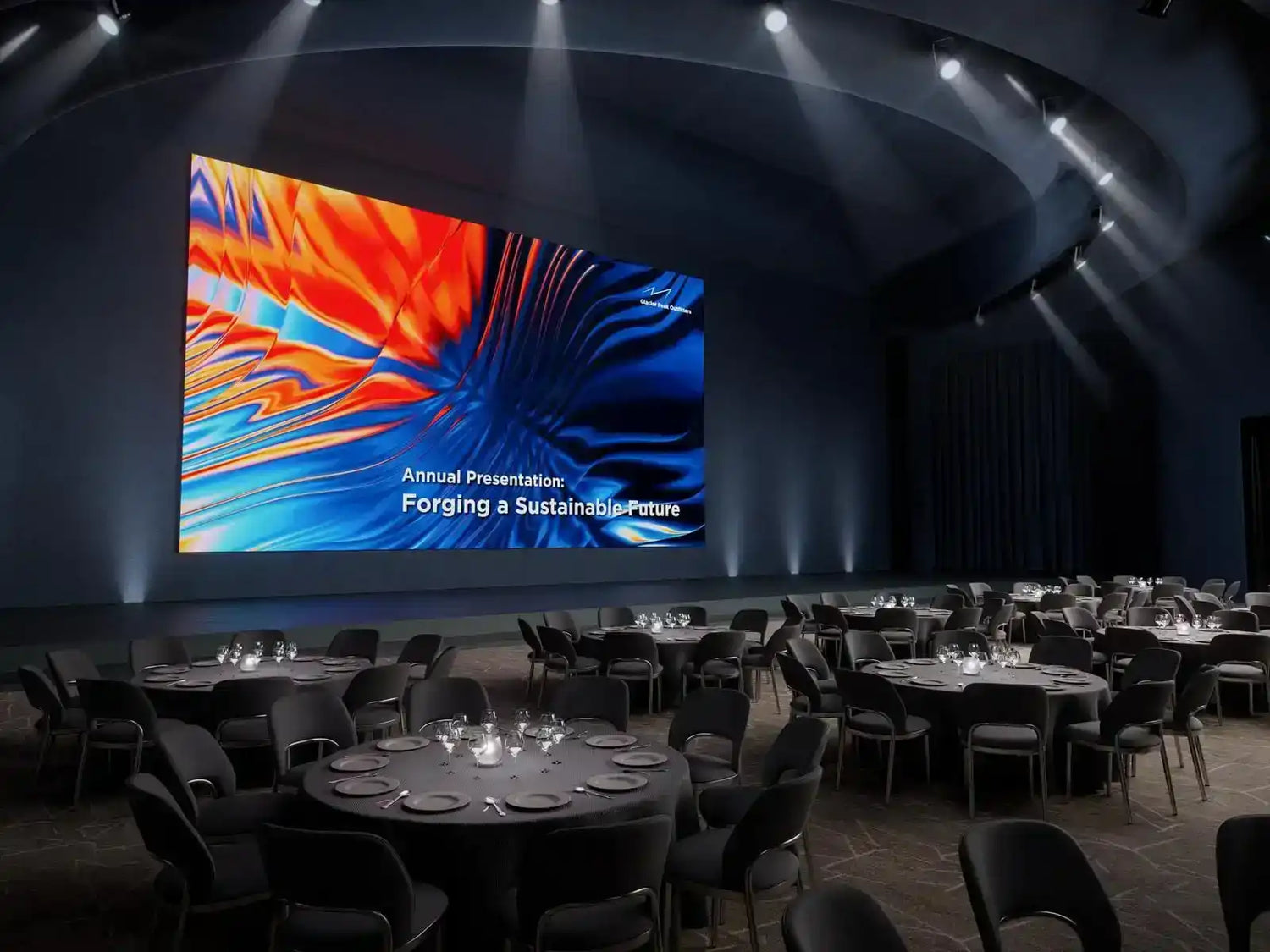

The ViewSonic LDP136-071C is a 136" enterprise-class All-in-One LED Display designed to elevate visual performance in premium corporate environments. Featuring 4K UHD resolution, Mini LED architecture, 600 nits of brightness and a 10,000:1 contrast ratio, it delivers sharp visuals and vibrant color with ultra-fine detail. Built with Chip-on-Board (COB) technology, the display ensures enhanced durability against impact, dust, and moisture, achieving IP54 and IK08 protection ratings. All-in-One integration simplifies installation by combining power, control, image stitching, and display, allowing two people to complete setup in under two hours. A 31mm ultra-slim profile and near bezel-free design create a premium aesthetic that complements any professional space. Powered by a common cathode LED design and smart driving ICs, the display reduces power consumption while supporting long-term energy efficiency. Designed for seamless collaboration, it features PIP/PBP screen-split modes, LAN control, and optional wireless content sharing via ViewShare (sold separately) and AirSync—making it a smart, future-ready LED video wall solution for high-end meeting spaces, training rooms, and executive boardrooms.

Features

• 4K UHD resolution with Mini LED delivers ultra-fine detail, vivid color, and deep contrast for premium visual impact
• Advanced COB technology ensures enhanced durability with water, dust, and impact resistance—ideal for high-traffic professional spaces
• All-in-One integration simplifies installation by combining power, control, image stitching, and display
• Energy-efficient design with common cathode LEDs and smart ICs reduces power consumption and supports sustainable operation
• Smart collaboration tools include PIP/PBP screen-split modes, LAN control, and wireless content sharing via ViewShare and AirSync

Datasheets

Specifications

Screen Size: 136″
Display Area (mm): 3000 (H) x 1687.5(V)
Native Resolution: 3840×2160
Panel Technology: Direct view LED
LED Package Type: Flip Chip COB
Pixel Pitch (mm): 0.78
Brightness (max.): 600 nits (100 levels adjustable)
Contrast Ratio (typ.): 10000:1
Orientation: Landscape
Viewing Angles (typ.): H = 170, V = 170
LED Lifetime (typ.): 100,000 Hours
Local Storage: Total 32GB
(26GB available storage)
Embedded OS: Android 9.0
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
Horizontal Frequency: 31K-94kHz
Vertical Scan Rate: 56-85Hz
Input
HDMI: 4
(HDMI 2.0/HDCP 2.2)
(internal x3, external x1)
USB Type A: 3
(USB3.0 x1, USB2.0 x2)
RJ45 Input: 3
(internet x2, control x1)
IR in (3.5mm): 1
Wi-Fi Input: 2.4G/5G Hz
USB Type C: 1
(data only)
Output
HDMI out: 1
(HDMI 2.0, HDCP 2.2)
(internal x1)
Speaker: 30Wx2
Audio out (3.5mm): 2
S/PDIF: 1
USB Type A (Power): Shared with USB A input
(USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
USB Type C (Power): Shared with USB Type C input
(5V/1A x1)
Control
RJ45 (LAN control): 1(shared with internet)
USB Type A (Services): 1(shared with USB A input)
RS232 (DB 9-pin female): 1
IR Receiver: 1
Others
Power Supply Voltage: 100-120V/20A ~ 50/60Hz or 220-240V/10A ~ 50Hz
(vary by country)
Power Consumption: 680W (typ), 2031W (max)
< 0.5W (Hibernate) Operating Temperature: 0~40℃ Total LED Module Quantity: 200 Ingress Protection Rating: IP54(Front) Impact Protection Rating: IK08(Front)

Net Weight: 372.58 lbs (169 kg) Gross Weight: 599.66 lbs (272kg)

Product Dimensions (WxHxD): 118.58 x 72.22 x 1.61 inches (3012 x 1834.5 x 41mm) Product Dimensions (WxHxD) with wall mount: 118.58 x 72.22 x 2.35 inches (3012 x 1834.5 x 59.8mm)

Packing Dimensions (WxHxD): 77.95 x 40.16 x 48.03 inches (1980 x 1020 x 1220mm) Standard Accessories Power Cord: 1 LAN Cable (Cat 5E): 1 IR Extender Cable: 1 Remote Control: 1 Installation Guide: 1 Wall Mount: 1 Spare Parts: LED module x14 Maintenance Tool: LD-MK-004 x1 LD-MK-006 x1

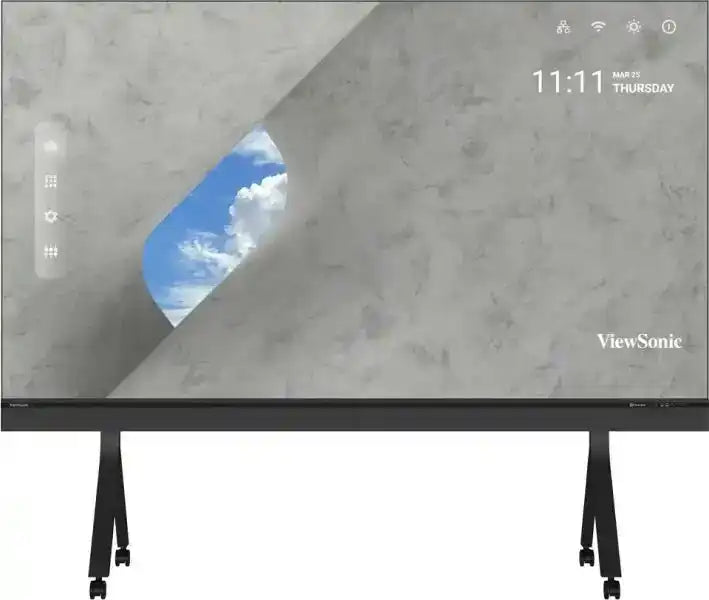

Optional Accessories Maintenance Tool: LD-MK-004 LD-MK-006 Floor Stand: LD-STND-009
