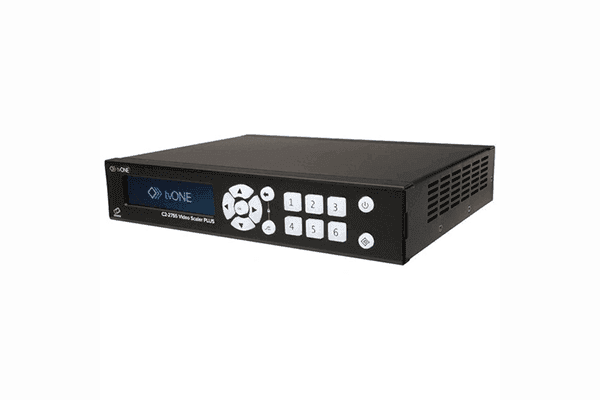

tvONE C2-2755 Video Scaler Plus
The C2-2755 Video Scaler PLUS is tvONE’s compact and easy to video scaler. Capable of transmitting a range of resolution outputs from 800x600 to 1920x1200 at 60 hz, it is ideal for most HDTV’s and PCs.

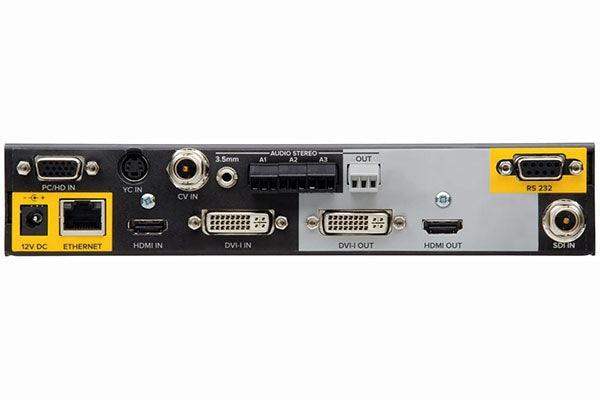

The C2-2755 is able to work with HDMI, DVIU, YC, YUV, YPbPr, and RGB inputs and HDMI and DVI outputs, along with a 4x1 audio switcher. With an easy to read color-split back, setting up the device becomes effortless.
The C2-2755 can store up to 5 still images as well as 5 logos, along with 12 user selectable presets; raging from basic video controls such as pausing to more advanced features such as keying and picture in picture.
All of this is achieved by using a new OLED display. Not only does this make the menu easier to navigate, it also makes on console control easier than it’s ever been. The new menu shows what features are currently being used on top of the screen, limiting potential technical glitches caused by forgotten settings.
Compact and easy to use, the C2-2755 controls the entire device using only 15 buttons. Supporting up to 12 inputs, the 6 channel controls function for 2 controls or presets each. With a simple push of a button, selections 1-6 become 7-12.
To make things more convenient for the user, the C2-2755 comes with software called CORIO Control. It is an exact digital replica of the physical scaler, displayed on your computer; ensuring that control remains the same no matter the layout of the room.
The defining feature of the C2 series is the auto switch function. This incredible time saving ability removes the aggravating process of finding and selecting input sources by doing it for you. It does this by scanning through its inputs until it detects one. Of course you still have the option to manually select inputs and the feature will not trigger if an input is currently in use.
As a bonus, the C2-2755 is capable of playing audio straight from the device itself, just in case audio is essential in an environment that does not support any.
Features
- Up / Down / Cross Conversion
- Frame Rate Conversion & Pulldown Support
- DVI, HDMI, Analog In / Out + SDI In
- Keying and Custom Resizing Possible
- Genlock for Seamless Video Switching
- Auto-Switching with Input Detection
- Audio Embedding / De-Embedding
- OSD, IP, and RS-232 Control Options
- Seamless Cut, Fade or Wipe Transitions
- Rack-Moutable with Optional Kit
Specification
TV One C2-2755 Specs
| Inputs | Video 1 x Composite on BNC 1 x S-video (Y/C) on 4-pin DIN 1 x HDMI 1 x 3G-SDI on BNC 1 x VGA 1 x DVI-U: Supports composite, component (YPbPr, YUV), HDMI, DVI, VGA (RGBHV, RGBS, RGsB) - adapters required Audio 3 x Unbalanced audio on terminal connectors 1 x Stereo 3.5 mm mini jack Note: HDMI, SDI, and DVI-U pass embedded audio |
| Outputs | Video 1 x Composite on BNC 1 x S-video (Y/C) on 4-pin DIN 1 x HDMI 1 x DVI-U: Supports composite, component (YPbPr, YUV), HDMI, DVI, VGA (RGBHV, RGBS, RGsB) - adapters required Audio 1 x Unbalanced audio on terminal connectors Note: HDMI and DVI-U pass embedded audio |
| Maximum Resolution | Analog Computer: 1920 x 1080 Analog Video: 1080p60 HDMI and DVI Computer: 1920 x 1200 HDMI and DVI Video: 1080p60 |
| Supported Resolutions | Video: NSTC, PAL, 720p,1080i,1080p Computer: 800 x 600 (SVGA) to 1920 x 1200 (WUXGA) |
| Supported Frame Rates | SD-SDI 525i (NTSC) 59.94 Hz 625i (PAL) 50 Hz HD-SDI 720p: 29.97, 30, 50, 59.94, 60 Hz 1080i: 50, 59.94, 60 Hz 1080p: 23.98, 24, 25, 29.97, 30 Hz 1080p: 50, 59.94, 60 Hz |
| Latency | 1 to 2 frames |
| Supported Standards | Analog Video NTSC, PAL, PAL-M, PAL-N, SECAM Component Video RGBHV, RGBS, RGsB, YPbPr, YUV HDMI and DVI DVI 1.0, HDCP; CEC pass-through SDI SMPTE259M-C (SD-SDI; 270 Mbps; 525/625Line) SMPTE292M (HD-SDI; 1.485/1.4835 Gbps: 720p, 1035i, 1080i, 1080p) SMPTE424M (3G-SDI) Audio De-embedding Support: 1 x Stereo pair at 32, 44.1, or 48 kHz from HDMI / 48 kHz from SDI Embedding Support: 1 x Stereo pair at 48 kHz |
| SDI Jitter | SD-SDI: < 0. 1 UI HD-SDI < 0.2 UI 3G-SDI: < 0.3 UI |
| SDI Cable Equalization | Input SMPTE259M-C (SD-SDI) 984.3' / 300 m (under optimal conditions) SMPTE292M (HD-SDI) 544.6' / 166 m (under optimal conditions) SMPTE424M (3G-SDI) 328.1' / 100 m (under optimal conditions) |
| Control Method | Local: Front Panel Buttons and OSD 1 x RS-232 on DB9 female 1 x Ethernet on RJ-45 connector |
| Power Requirements | External Power Supply: 12 VDC at 1.5 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C Humidity: 10 to 85%, non-condensing |
| Storage Temperature | 14 to 158°F / -10 to 70°C Humidity: 10 to 85%, non-condensing |
| Dimensions | 1.6 x 8.6 x 7.4" / 42 x 218 x 189 mm |
| Weight | 2.8 lb / 1.3 kg (excluding PSU) |
| Package Weight | 4.9 lb |
| Box Dimensions (LxWxH) | 13.5 x 12.9 x 3.9" |
