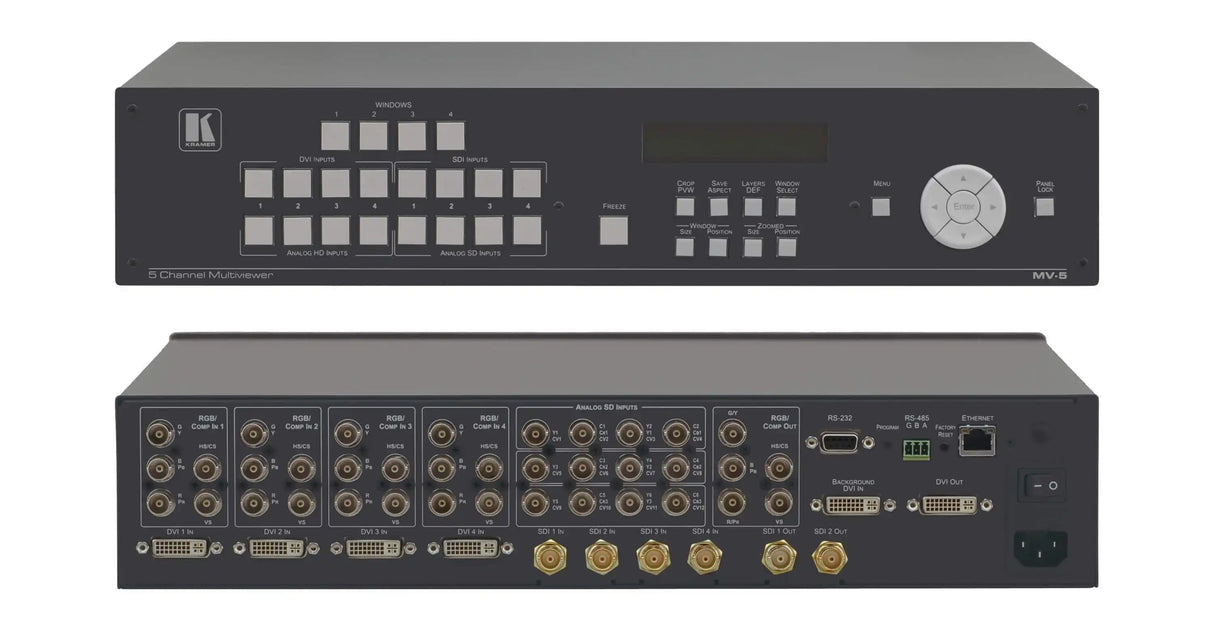

Kramer MV-5 5–Channel Multiviewer

The MV−5 is a versatile, high−performance video and graphic multi−window viewer for DVI signals, SD and HD analog signals up to 1920x1200@60Hz, and SDI signals up to 3G HD−SDI. The device can window up to four sources (plus a background) in any layout and output the image as SDI, DVI, component and composite video signals. Both preprogrammed and customizable screen division is supported.

•  Max. Input Data Rate — 3Gbps.
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
•  Multi–Video Output Formats — SD–SDI (259M), HD–SDI (292M) and 3G HD–SDI (SMPTE 424M), HDMI, HD, SD, analog and composite.
•  HDTV Compatible.
•  HDCP Support on DVI Inputs/Outputs.
•  Powerful Cross Conversion — Any format to any format, any standard to any standard.
•  Input Cable Equalization — Up to 350m (1150ft) for SD signals, 140m (459ft) for 1.5GHz HD signals, and 120m (394ft) for 3GHz HD signals.
•  Chroma–Key Engines — Four independent chroma–key engines for each image layer.
•  Window and Image Scaling — Zooming (up to 1000%) and aspect ratio control.
•  Independent Layer Transparency Control.
•  Image Controls — Brightness, contrast, color and sharpness.
•  Window or Input Label Insertion.
•  16 User–Definable Screen Layouts.
•  Screen Handling Buttons — Freeze, size, position.
•  Lock Button — To prevent unwanted tampering.
•  Flexible Control Options — Front panel with menu LCD, on–screen display (OSD), Ethernet and RS–232.
•  Worldwide Power Supply — 100–240V AC.
