Kramer 2 Input 4K HDMI/Analog Audio over HDBaseT Card (F16 - DTAXR-IN2-F16/STANDALONE
Kramer 2 Input 4K HDMI/Analog Audio over HDBaseT Card (F16 - DTAXR-IN2-F16/STANDALONE is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Kramer 2 Input 4K HDMI/Analog Audio over HDBaseT Card (F16 - DTAXR-...

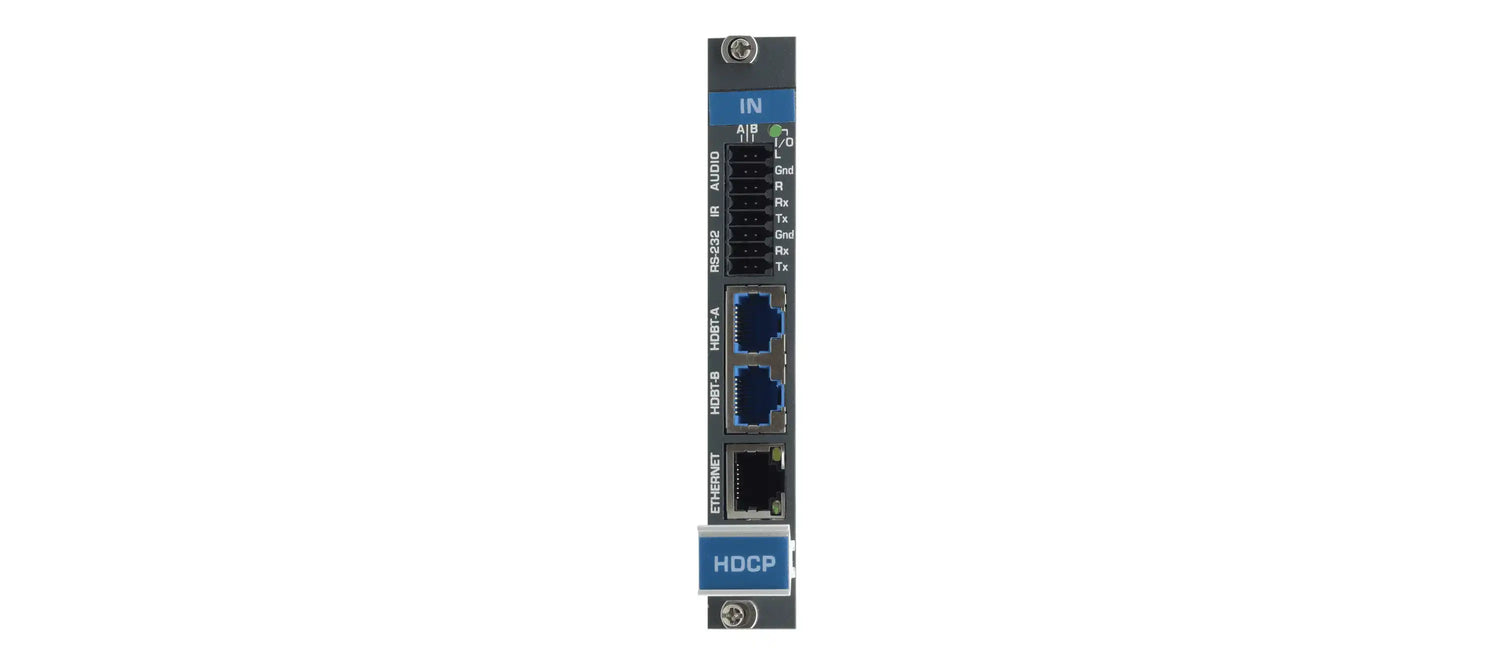

DTAxr−IN2−F16 is a 2−channel 4K60 4:2:0 HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. DTAxr−IN2−F16 inputs two extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis.
- Max. Data Rate — 10.2Gbps (3.4Gbps per graphics channel).
- Max. Resolution — 4K@60Hz (4:2:0).
- Analog Audio Embedding/De–embedding — On the same jack
- HDBaseT Technology — HDTV compatible, HDCP compliant.
- System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
- Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
- 3D Pass–Through.
