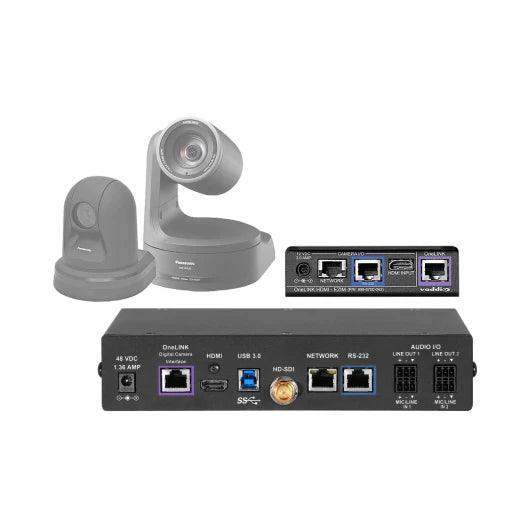

Vaddio- 999-9630-000 OneLINK Bridge Kit for Sony and Panasonic HE-Series Cameras

Brings your non-USB camera and non-USB audio components into your USB conferencing environment for traditional videoconferencing quality, without the traditional price tag. Extends power, video and control to your compatible Sony or Panasonic camera over a single category cable.

Packaged for Sony SRG and Panasonic HE series cameras.

Key Features:

• Simple, clutter-free camera extension with HDBaseT technology
• Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
• Bridges audio and video for easy soft-client conferencing
• Configurable audio matrix with AEC
• Simultaneous HDMI, USB 3.0, and HD-SDI outputs
• Up to 1080p/60 resolution available over uncompressed USB

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

Download the Deployment Tool >

For Sony SRG series and Panasonic HE series cameras.

More flexibility for room design and installation

Makes your camera a conferencing camera: OneLINK Bridge connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. You get traditional videoconferencing audio quality with soft-client connectivity – and without the traditional videoconferencing price tag.

Sounds complicated - but it's not. Tailored for Sony and Panasonic HE series cameras, this OneLINK Bridge kit simplifies installation by extending power, video and control to your camera over a single Cat-5e cable up to 328 ft (100m).

Benefits:

• More flexibility in camera placement
• HDBaseT interface extends power, video and control up to 328 ft (100 m)
• Delivers an uncompressed USB 3.0 media stream for high-definition cloud conferencing
• Connects to any cloud conferencing application, such as Google Hangouts, Skype for Business, WebEx, Zoom and others
• Plug and play usability for BYOD conferencing environments
• Intuitive browser-based user interface for configuration and system administration

This Package Includes:

• OneLINK Bridge Interface
• OneLINK HDMI EZIM with mounting screws
• Thin Profile Wall Mount (black) with mounting hardware**
• Quick-Start Guide
• 48V power supply with AC cord set(s)
• 4 qty 3-position phoenix-style connectors
• 1' (0.3m) cat-5 cable, black
• 1' (0.3m) HDMI cable
• 1' (0.3m) RJ-45 to 8-pin mini-din cable
• 1' (0.3m) EIAJ-04 to EIAJ-04 power cable for certain camera models
• 1' (0.3m) EIAJ-04 to 3mmx6.3mm power cable for certain camera models
• 6' (1.8m) USB 3.0 cable, type A to B

** If mounting the Panasonic AW-HE120 or AW-HE130 cameras the Thin Profile Wall Mount Bracket for Panasonic AW-HE130 should be used instead
