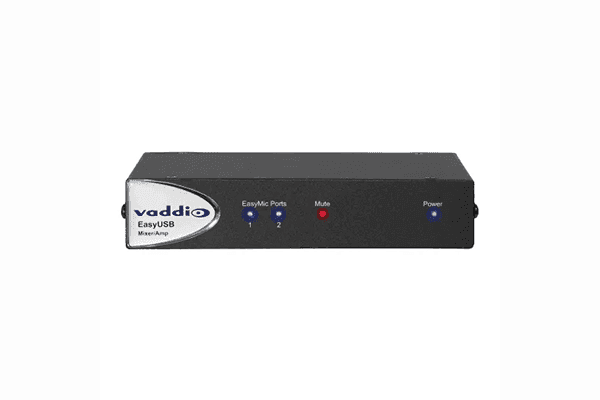

Vaddio- 999-8530-000 EasyUSB Mixer-AMP System

Integrated audio mixer and amplifier that connects to a PC as a single microphone and speaker channel.

The EasyUSB Mixer Amp supports up to two EasyTALK MicPOD microphones. In addition, analog line level I/O interfaces allow for integration with external AV equipment such as videoconferencing codecs, external amplifiers or LCD displays. The EasyUSB Mixer Amp also has a 2 x 20 watt integrated audio amplifier for connection to external 4/8-Ohm speakers.

The EasyTALK USB uses a standard UAC driver, based on the guidelines set by the USB Implementers Forum, so you do not need to download any additional software or drivers. Instead, you just plug in each device and they work automatically with any operating system – Windows, Mac, Linux – you name it. It’s completely driver-free. They are designed as a truly plug-and-play audio solution for software-based conferencing systems.

Vaddio EASY USB MIXER Features:

• Supports up to two EasyMic Devices (MicPOD or Ceiling MicPOD) using RJ-45& Cat. 5 for audio, control, and power (100 feet)
• 2 x 20 Watt Class-D amplifier with 2-Pin Euro Terminal
• Connects to PC as a USB sound device
• USB 2.0 Audio Class Device (UAC) / no drivers required
• Auxiliary Line Input and Output
• Unbalanced Line Input and Output (RCA)

Vaddio EASY USB MIXER Specifications:

• Audio Specifications Frequency Respones:20 HZ to 20KHZ, Dynamic Range:>90dB, THD + Noise: < .02%
• Analog Line Input Connector: RCA (Unbalanced), Impedance: 10Kohm, Nominal Level: -10dBu
• Analog Line Output Connector: RCA (Unbalanced), Impedance:10Kohm, NominalLevel: -10dBu
• Amplifier Connector: 2- Pin Molex Euro, Impendence: 8 ohm, AmplifierOutput: 2X20 Watts, THD + Noise: < .2% at 1/3 power
• USB Audio Interface Connector: Type-B, PC Audio Controls: Mute &Volume, PC HID Controls: On/Off Hook
• EasyMic Ports Connectors: Two (2)- RJ 45-F, Proprietary Interface, 100’(30.4m) Cat-5 Cable Distance Max
• Audio Processing Settings 8-Position Dip Switch- Mixing Modes, Compressor,Filter, Delay
• User Indicators Communications Status, Mute, Power
• Power Supply 18 VDC, 2.75 Amp
• Serial Control Protocol RS-232 (external control)
