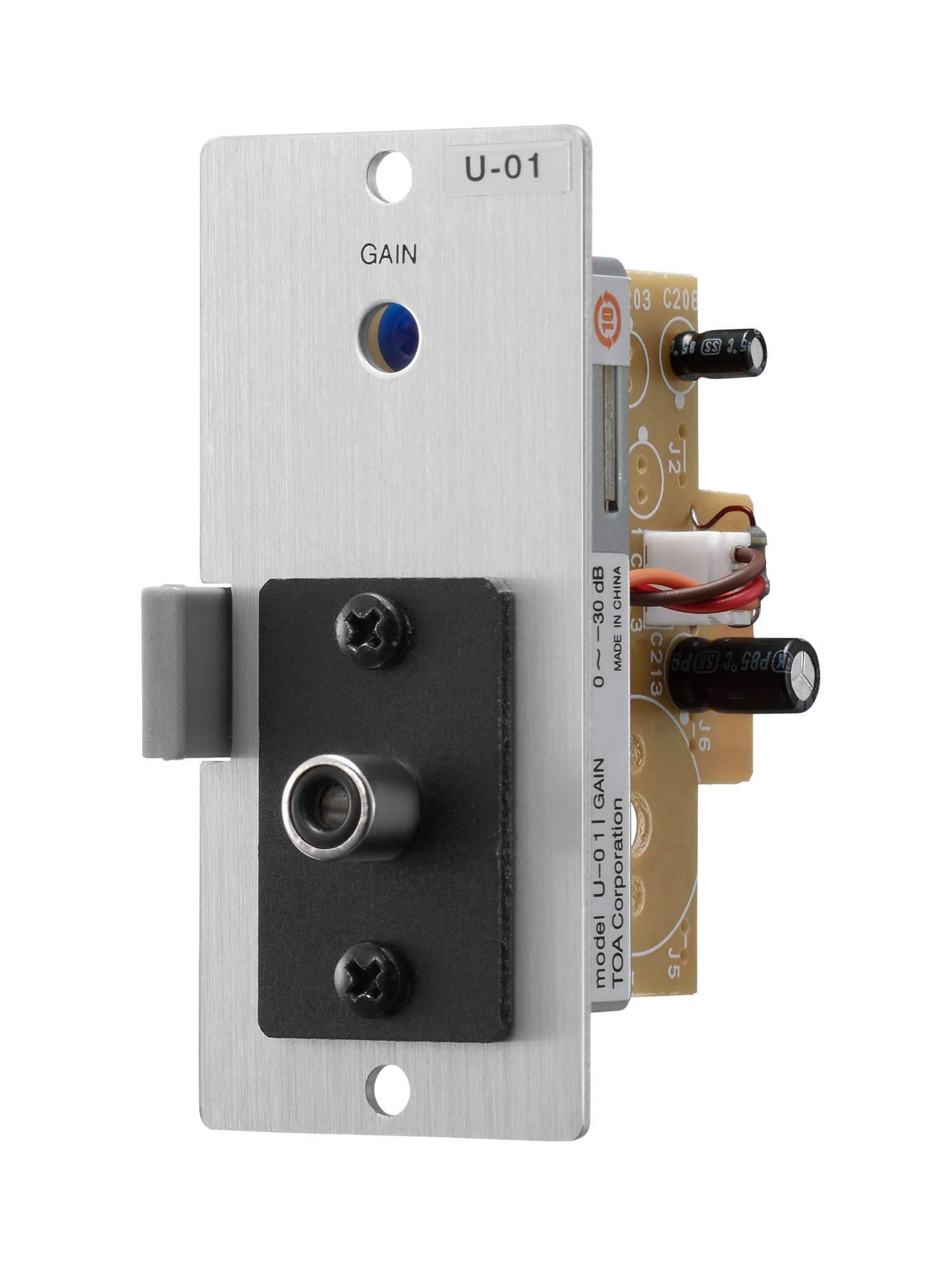

TOA Electronics Unbalanced Line Input (RCA) - U-01R

$78.00 $64.00

Shipping calculated at checkout.

TOA | SKU: U-01R

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The U-01R is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has an unbalanced line input with RCA pin jack connector, and gain control.

Features

For unbalanced, line level sources such as tuners, cassette decks, CD players, computer sound cards, jukeboxes, mixers and satellite receivers
Use for adjacent sources (less than 15ft from the host unit)
Connectors: RCA jack

Specs

Power Supply

24 V DC (supplied from the main frame)

Current Consumption

4 mA

Input Sensitivity

-20 dB* (rated output: -20 dB*), adjustable: -20 to +10 dB*

Input Impedance

220 kΩ, unbalanced

Frequency Response

20 Hz - 20 kHz ±1.0 dB

Distortion

0.05 % or less (1 kHz, output: 0 dB*)

Noise Level

-106 dB* (20 Hz - 20 kHz BPF)

Gain

-30 - 0 dB

Connector

RCA pin jack (1P)

Dimensions

35 (W) x 78 (H) x 88 (D) mm (1.38" x 3.07" x 3.46")

Weight

Max. 75 g (0.17 lb)
