TOA Electronics Type H Slim Line Array- Long/Straight 0 Degrees- 8/360W - SR-H3L

Regular price $1,103.00 Sale price $892.00
Shipping calculated at checkout.
TOA  |  SKU: SR-H3L

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

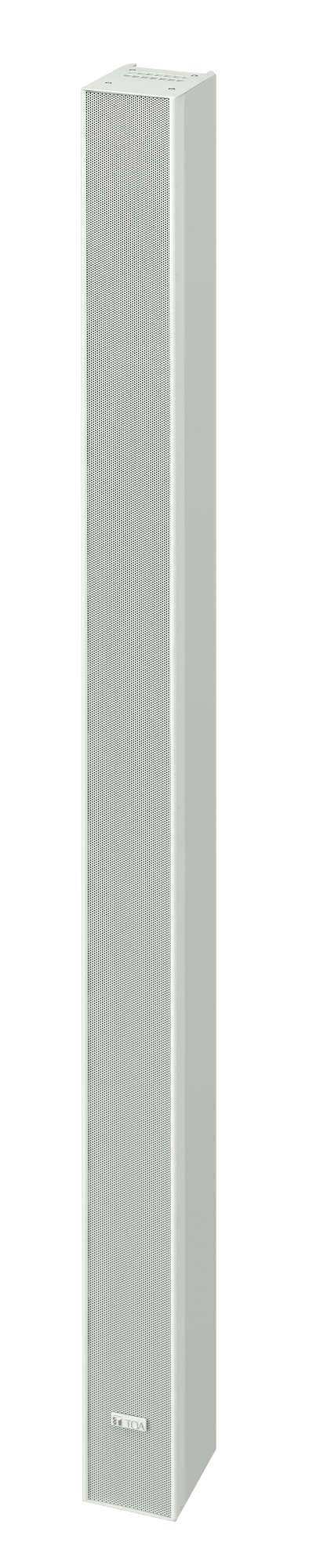

The SR-H3L Line array speaker forms a linear sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching transformer.

  • Slim line array with excellent directivity
  • Narrow 84 mm design allows speakers to fit in well with the interior decor of the venue
  • Sync-Drive technology creates ideal linear sound source
  • Clear sound with reduced attenuation over distance
  • Reflection-free and feedback resistant
Specs
Enclosure
Bass-reflex type
Power Handling
Continuous program: 360 W
Rated Impedance
8 Ω
Sensitivity
95 dB (1 W, 1 m equivalent, measured at 8 m)
Frequency Response
110 Hz - 18 kHz (when recommended parameters are applied by the optional DP-SP3)
Directivity Angle
Horizontal: 90°
Vertical: 0° (within the range of speaker height)
Speaker Component
7 cm (2.8) cone-type x 16"

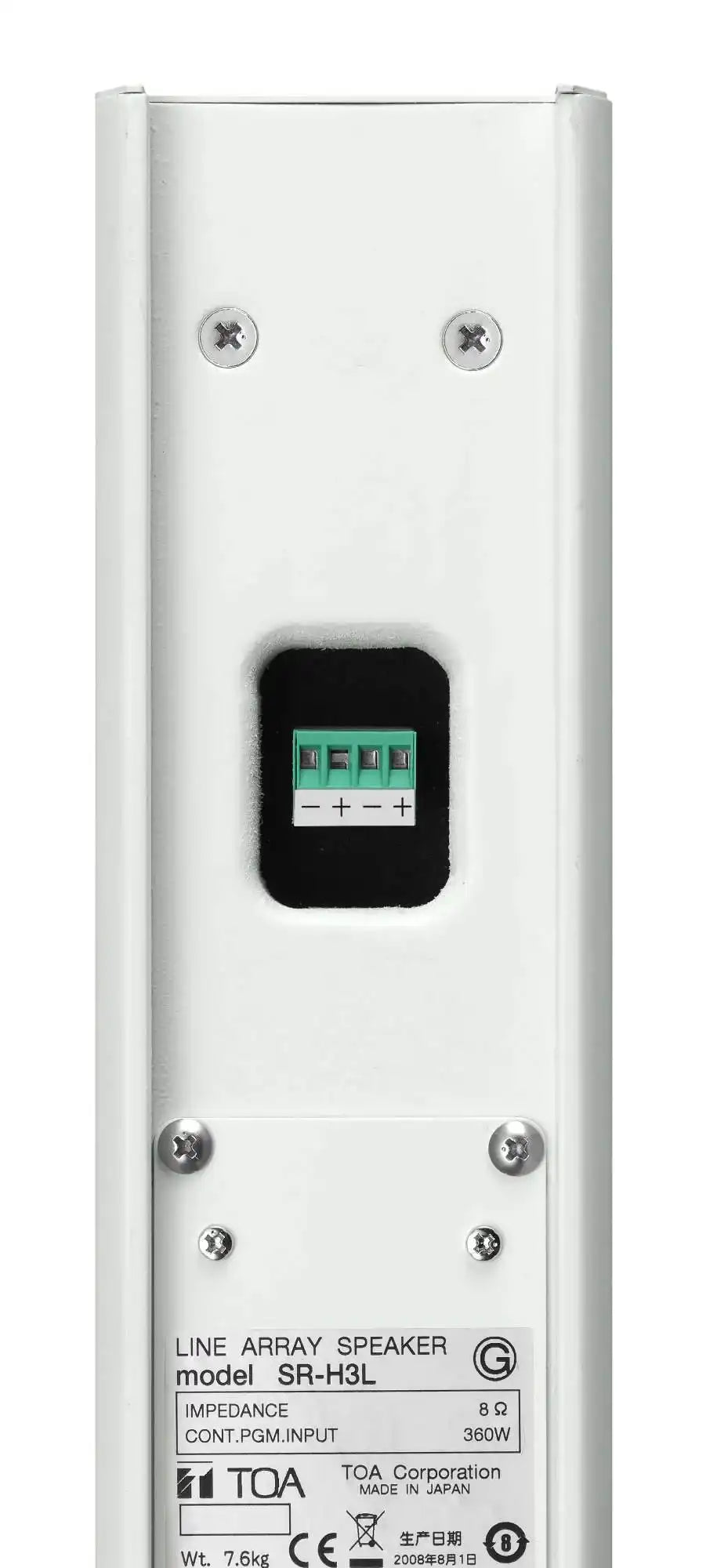

Input Terminal
Removable input connector
Finish
Enclosure: MDF, white, urethane paint
Front grille: Punched steel plate, white, acrylic paint
Dimensions
84 (W) x 1186.4 (H) x 115 (D) mm (3.31 x 46.71" x 4.53")
Weight
7.6 kg (16.75 lb)
Optional Accessories
Matching transformer: MT-S0301
