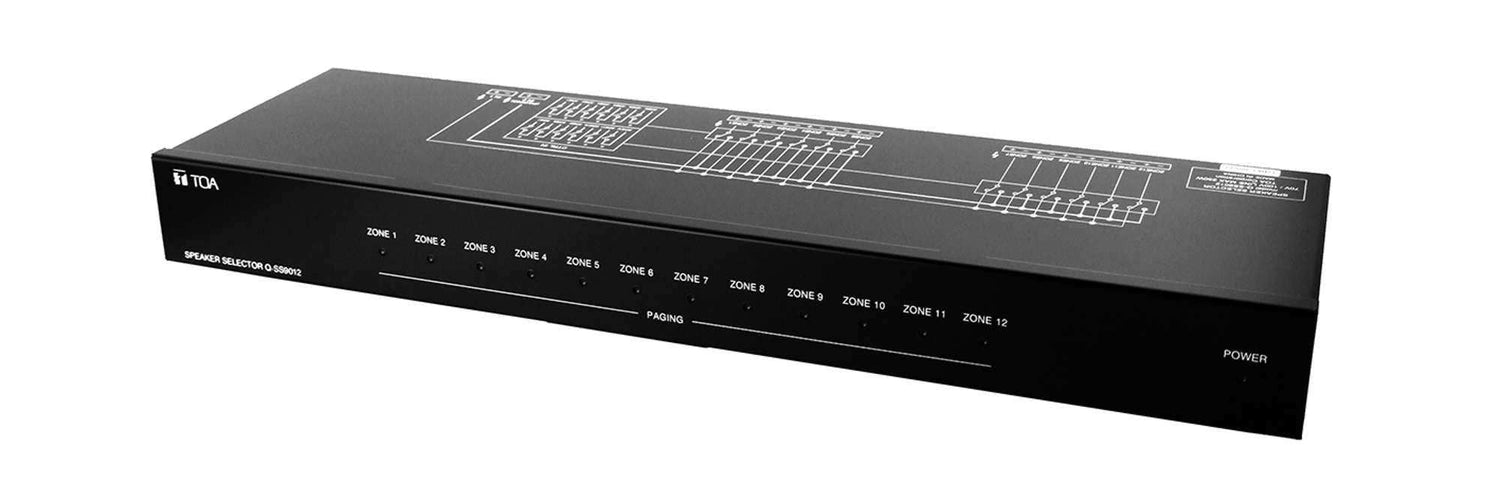

TOA Electronics Speaker Selector - Q-SS9012PS

Regular price $614.00 Sale price $497.00
Shipping calculated at checkout.
TOA  |  SKU: Q-SS9012PS

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Q-SS9012PS is a speaker selector used in conjunction with 9000M2 Series mixer amplifiers or other paging equipment. It selectively distributes each of 2 amplified inputs of the same 12 output zones by the status of corresponding contact closure input. 12 contact inputs and 12 speaker outputs. Power amp input is split into 12 zones with activation via contact closure. It requires DC 24V power supply (AC Adapter, AD-246)

Features
  • 12 contact inputs and 12 speaker outputs. Power amp input is split into 12 zones with activation via contact closure
  • Can facilitate paging over BGM by switching between BGM output (amp input 1) and Page output (amp input 2)
  • LED indicator for each selector
  • optional MB-15B, mounting rack
Specs
Power Source
24 V DC from AC adaptor AD-246 or equivalent
Current Consumption
400mA or less
Power Handling
250W or less (70V/100V line per channel (IN1, IN2)
Control Input
12 channels, dry (no voltage) contact closures, open voltage: 3.3V DC, short-circuit current: under 1 mA, removable terminal block (24 pins)
Speaker Terminal
Removable terminal block (2 pins, IN1, IN2, Zone 1-12)
Control Terminal
Removable terminal block (24 pins)
Operating Temperature
-10°C to +40°C (14°F to 104°F)
Finish
Case: Surface-treated steel plate, black
Dimensions
420 (W) x 44 (H) x 123 (D) mm (16.54" x 1.73" x 4.84")
Weight
1.6kg (3.52 lbs)
Included Accessories
Removable Terminal plug (2pins) Removable Terminal Plug (12 pins) Removable Terminal Plug (14 pins) AC adaptor: AD-246
Optional Accessories
Rack mount bracket: MB-15B, Wall mount bracket: YC-850 Interface board for connecting Q-SS9012PS & Q-RM9012PS: *IB-9012-AM *Please request at N/C when ordering these models together
