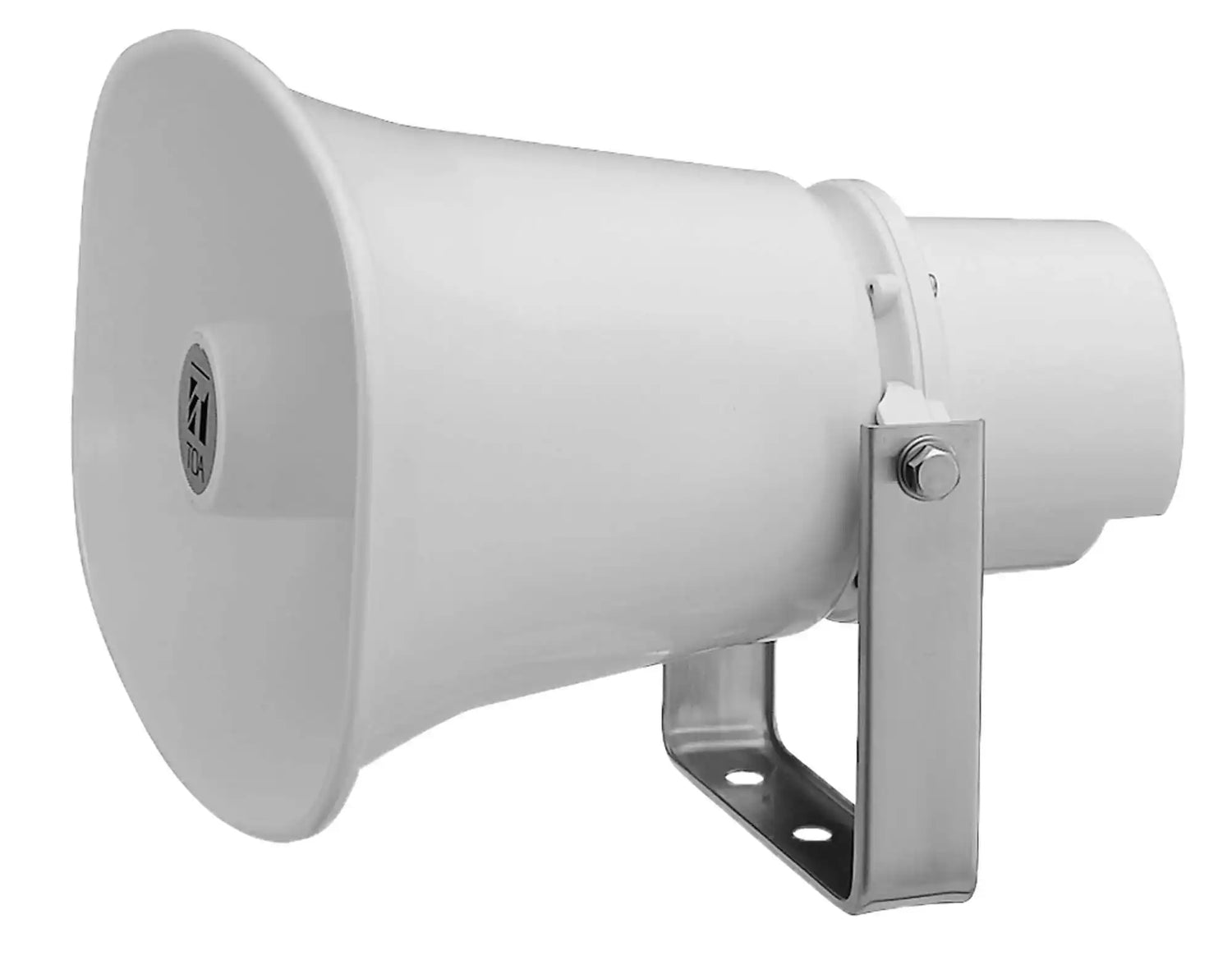

The Q-SC-P620 is a highly intelligible and compact horn speaker with a built-in 20W digital power amplifier, that provides public address announcement and remote paging for network video surveillance applications. This powered horn speaker can operate at extreme temperatures. It comes with powder-coated finish and stainless-steel screws to ensure its weatherproof capability. Ideal choice for indoor and outdoor applications in train stations, airports and many more.

Features
  • Integrated 20W power amplifier which utilizes latest Class D technology
  • Switchable Gain: 8dB, 16dB, 24dB and 32dB
  • Internal volume control to allow on-site tuning
  • Integration to CCTV systems possible with the majority of IP CCTV systems equipped with an audio line output
  • Weatherproof to IP65 rating
Specs
Power Source
12V DC, 2A ( DC Socket "+" Type A : 5.5 x 2.1mm )
Power Consumption
15W (1.25A) at Rated output , 25W ( 2.1 OA) at Maximum output
Input
0 dB*, 1 Ok 0, Unbalanced ( RCA plug)
Signal Gain
8, 16, 24 or 32db (Factory pre-set to 16db)
Volume Adjustment
Internal volume control (Factory pre-set to maximum position)
Sound Pressure Level
113dB ( 1 W, 1 m at 500Hz to 2.5KHz peak level) Max. SPL ( above 120dB)
Frequency Response
250 - 10,000 Hz
Dust/Water Protection
IP 65
Finish
Horn Flare: HIPS resin, white (RAL9010 equivalent) Reflector horn and case: ABS resin, white (RAL9010 equivalent) Bracket, screws & bolts: Stainless steel
Dimensions
292 (W) x 230 (H) x 280 (D) mm
Weight
1.8 kg
Optional Accessories
AD-5000-2 (LTE24E-S2-1) AC Adapter
