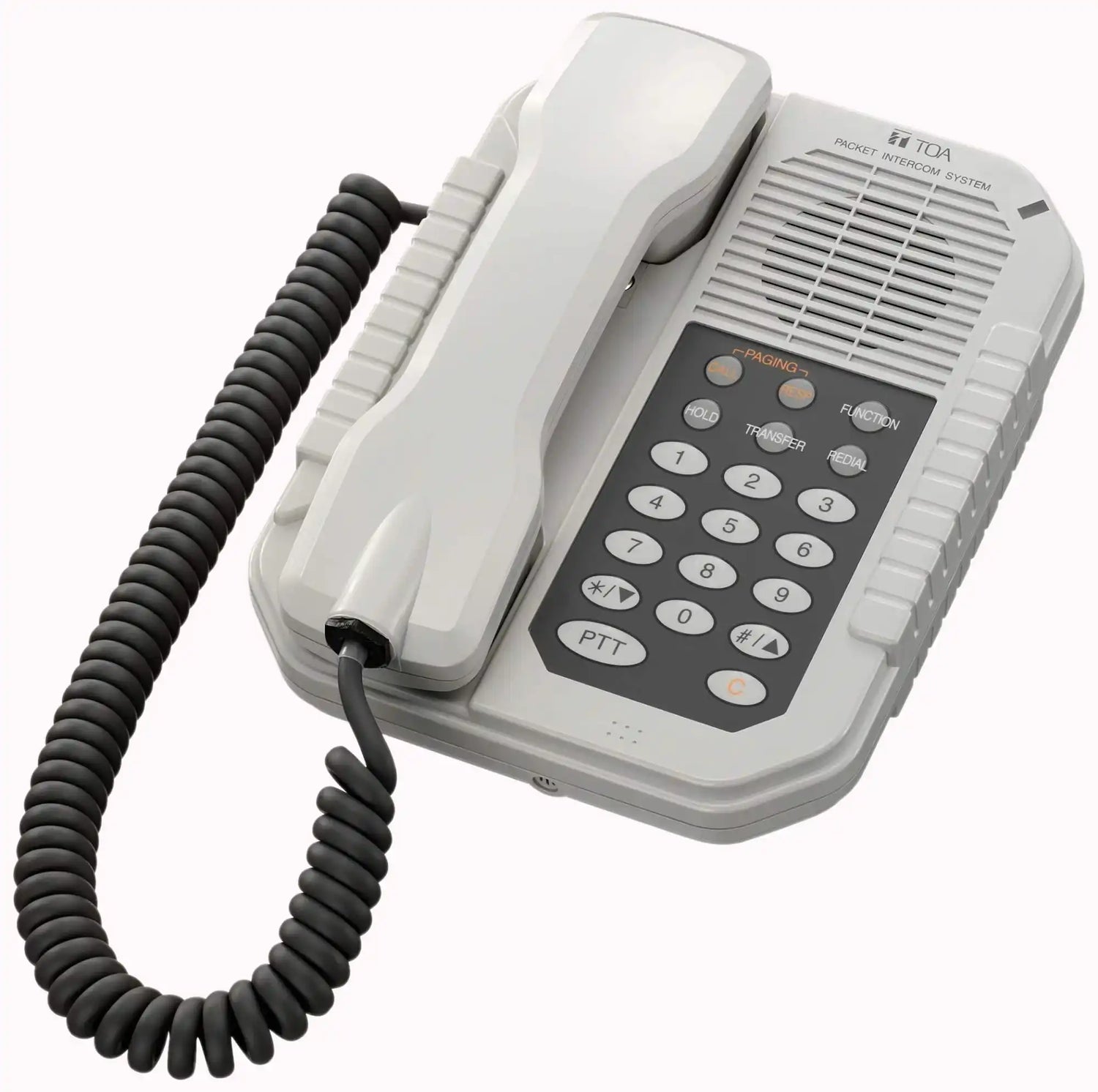

TOA Electronics Industrial-Use Master Station - N-8020MS Y

Regular price $978.00 Sale price $791.00
Shipping calculated at checkout.
TOA  |  SKU: N-8020MS Y

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free or handset conversation of high sound quality. It features dustproof and waterproof construction, and can be used in locations exposed to ambient temperatures ranging from -10 °C to +50 °C. In addition to the functions of the standard Master Station, the Industrial-Use Station permits connection of external speakers, and can take out control signal for dial-in indicator from its contact output. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.

Features
  • Industrial use Master Station
  • Dustproof and waterproof construction IP54
  • Wide ambient temperature range
  • Connection of external speaker
  • Status LED
Specs
Power Source
48 V DC (supplied from the IP intercom exchange (option)
Power Consumption
1.8 W (at rated), 2.4 W (max.)
Wiring Method
1 set of twisted pair cable
Transmission System
2 wire 160 kbps echo canceller transmission system
Signal Level
Under 0 dB*
Speech Method
Hands-free or handset conversation
Audio Frequency Range
300 Hz - 7 kHz
Transmission Range
Max. 1500 m (Φ0.65 mm, Loop resistance 170 Ω)
Hands-free
Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Handset
Receive path: Dynamic type, Send path: Electret condenser microphone
Dial-in Contact Output
Open collector output (polarized), withstand voltage: Max. 30 V DC,
control current: Max. 50 mA, screwless connector (2 pins)
Indicator
Status lamp
External Speaker Terminal
0.6 W, 8 Ω, screwless connector (2 pins)
Line Connecting Terminal
RJ11 modular jack
Installation Method
Desk/Surface mounted master station
(When mounting to the wall, use the optional YC-280.)
Operating Temperature
-10 °C to +50 °C
Operating Humidity
Under 90 % RH (no condensation)
Dust/Water Protection
IP54
Finish
Body, Handset: ABS resin, gray
Dimensions
170 (W) x 220 (H) x 97.8 (D) mm (excluding a curl cord and projection sections)
Weight
1 kg
Included Accessories
Rubber cap …2
Optional Accessories
Wall mounting bracket: YC-280
