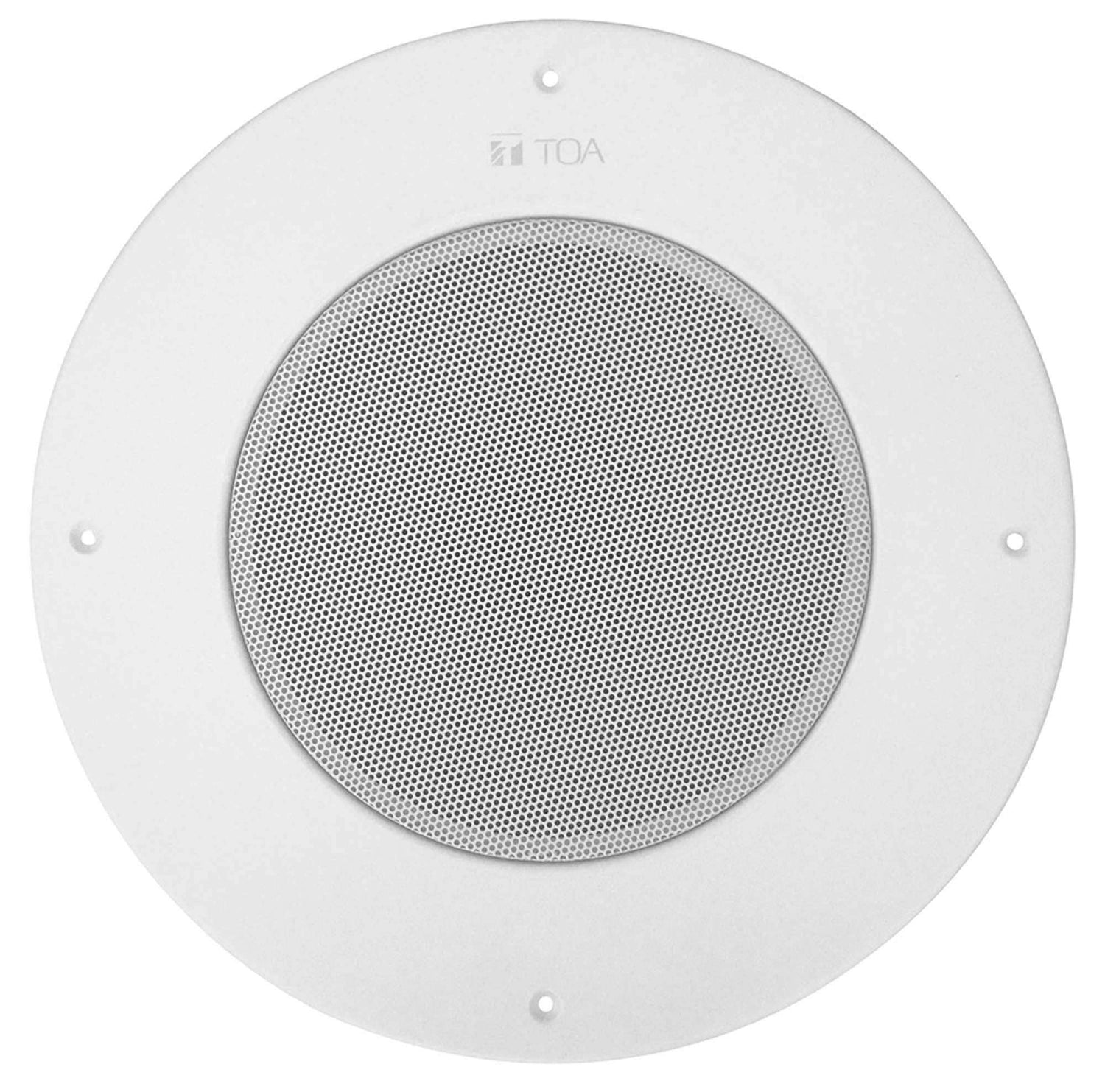

TOA Electronics 8" In-Ceiling Speaker with Potentiometer - PC-580RVU AM

Regular price $68.00 Sale price $54.00
Shipping calculated at checkout.
TOA  |  SKU: PC-580RVU AM

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The PC-580RVU is designed to fill the need for a high-performance, cost effective ceiling speaker for use in Mass Notification Systems, Voice Evacuation, Emergency Paging, and everyday Paging and Background Music requirements. The PC-580RVU speaker meets UL 2572 (ULC S541, UL 1480 UUMW) (Fire Alarm Signaling) and UL 2043 (use in air handling spaces) standards when using the HY-BC580U AM Back Can.

Features
  • 8” in-ceiling speaker for high-quality paging applications
  • Center-grille volume adjustment potentiometer
  • Cost effective design
  • 25V & 70V transformer taps up to 5W
  • Fits standard ceiling-speaker template
  • ULC S541, UL 1480 UUMW and UL 2043 standards
  • Unique “monocoque” design provides better structural integrity
  • Optional UL-rated HY-BC580U AM
Specs
Rated Input
5W ( 70.7 V line and 25 V line)
Rated Impedance
70.7 V line: 1 kΩ (5 W), 2 kΩ (2.5 W), 5 kΩ (1 W), 8.3 kΩ (0.6 W), 16.6 kΩ (0.3 W) 25 V line: 125 Ω (5 W), 250 Ω (2.5 W), 625 Ω (1 W), 1 kΩ (0.6 W), 2 kΩ (0.3 W)
Sensitivity (1W, 1m)
97 dB ( 1 W, 1 m)
Frequency Response
50 Hz - 16.5 kHz
Speaker Component
200 mm ( 8") Dual cone-type
Mounting Hole
ø228.6±3 mm ( 9" ±0.12")
Speaker Mounting Method
Mounting screw M5 X 38
Connected Cable
Solid wire: ø0.8 - ø1.6 (AWG 20-12)
Connection
Push wire connection ( Bridging terminal-2 branch type)
Operating Temperature
-10 ·c to +50 ·c (14 'F to 122 'F)
Finish
Panel: Steel plate, white, paint Grille: Steel plate, white
Dimensions
ø324 x 103(D) mm (12.76" x 4.05")
Weight
1.65 kg (3.64 lbs)
Optional Accessories
HY-BC580U AM Back Can (sold separately); For other installations: Q-HY-TB2 (2 required) Mounting Rail; LBS8-R1 AM Tile Bridge
Other Feature
ULC S541, UL 1480 UUMW and UL 2043 when used with HY-BC580U
