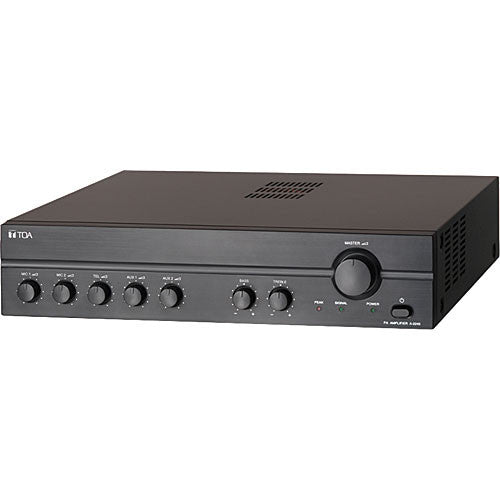

TOA Electronics 240W 5-Channel Modular Mixer/Amplifier - A-2240 CU

$709.00 $877.00

Shipping calculated at checkout.

TOA | SKU: A-2240 CU

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The A-2240 240 5 Channel Mixer/Amplifier from TOA Electronics is ideal for use in commercial audio systems in schools, offices, restaurants, shops, factories, houses of worship, and large meeting rooms. This high performance mixer/amp has wide frequency response, low noise and superior output regulation. The A-2240 is flexible with multiple input options including balanced microphone inputs with phantom power for line 1, auxiliary and inputs for telephone paging systems. This amp/mixer comes housed in a sturdy chassis with a scratch and fingerprint resistant finish and easy to use controls.

Features

Cost effective and durable mixer power amplifier
User friendly front panel allows easy operation
2 electronically balanced microphone inputs, 2 AUX inputs and recording output.
Phantom power at MIC 1
Wide tone-control adjustment range of -/+ 10 dB for both bass and treble
70V / 25V line or 4Ω speaker outputs

Specs

Power Source

120 V AC

Rated Output

240 W

Power Consumption

238 W (EN60065), 520 W (AC operation at rated output)

Frequency Response

50 - 20,000 Hz (±3 dB)

Distortion

1% or less at 1 kHz, 1/3 rated power

Signal to Noise Ratio

60 dB or more

Input

MIC 1, 2: -60 dB*, 600 Ω, balanced, M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
TEL: -10 dB*, 10 kΩ, balanced, M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack

Output

Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
High impedance: 21 Ω (70 V), 2.6 Ω (25 V)
Low impedance: 4 Ω (31 V)
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack

Phantom Power

DC +21 V (MIC 1)

Tone Control

Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz

Muting

MIC 1, MIC 2, and TEL have a priority function to attenuate AUX1 and AUX 2 input signals by 30 dB. (Sensitivity level for MIC 1, MIC 2, and TEL adjustable)
Priority level among MIC 1, MIC 2, and TEL is the same.

Finish

Panel: ABS resin, black
Case: Steel plate, black

Dimensions

420 (W) x 100.9 (H) x 360.3 (D) mm (16.54" x 3.97" x 14.19")

Weight

15.5 kg (34.17 lb)
