TOA Electronics 2-Way Interior Design Speaker - H-1 EX

Regular price $235.00 Sale price $190.00
Shipping calculated at checkout.
TOA  |  SKU: H-1 EX

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

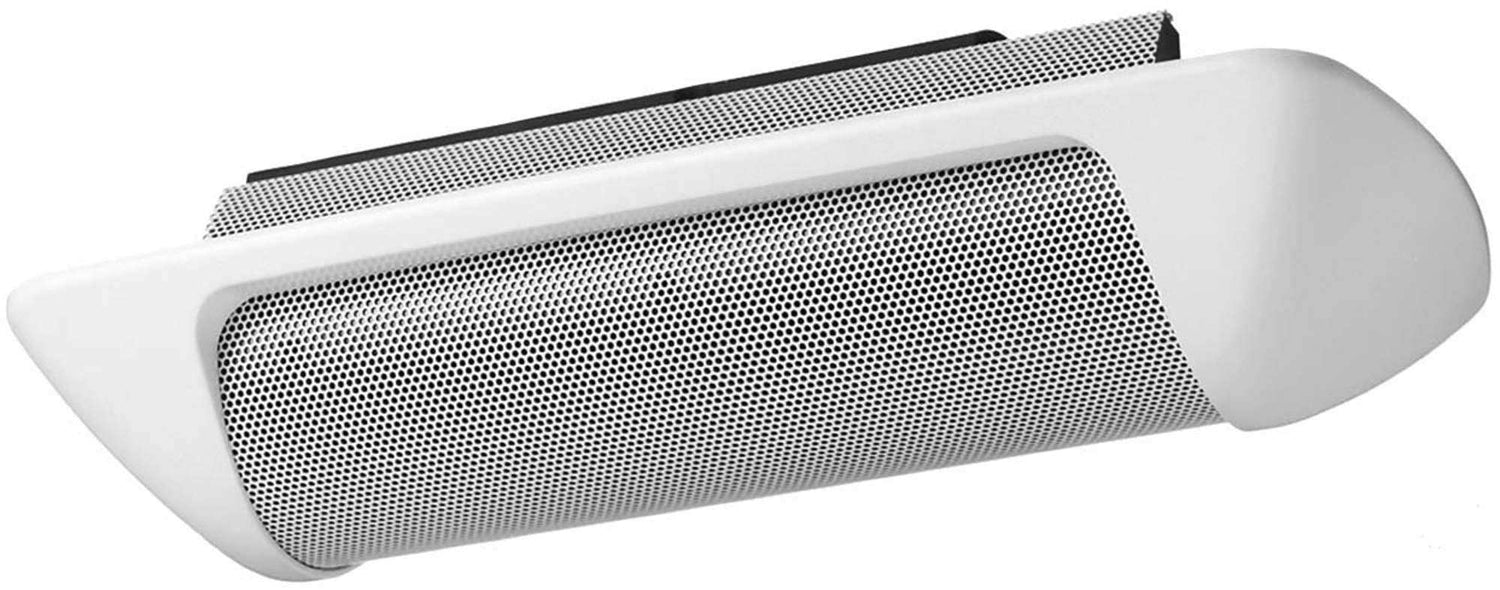

The H-1 is a cylinder-shaped, small flush-mount 2-way speaker that ensures quality sound reproduction. The mounting angle for its enclosure can be adjusted for up to 90 degrees.

Features
  • Sleek and attractive 2-way design speaker
  • Ferrofluid-cooled balanced dome tweeters and neodymium magnet cone woofers
  • Narrow coverage area allows a controlled sound
  • Sound direction can be adjusted within 90°
  • Built-in transformer allows both high and low impedance
  • High power handling
  • Easy installation in standard electrical gang boxes
  • Fire-rated ABS enclosure (UL 94-V0)
Specs
Active or Passive
Passive
Frequency Response
120Hz-20kHz
Power Capacity
Continuous Program: 90W (4 ohms)
Continuous Pink Noise: 30W (4 ohms)
Maximum Sound Pressure Level (SPL)
85 dB (1W, 1 m)
Nominal Sensitivity
85 dB
Impedance
Direct: 4 ohms
70.7V line: 12W (420 ohms)
100V line: 12W (830 ohms)
Crossover
5kHz
Shielded
Not Specified By Manufacturer
Low Frequency Driver
3 x 2" Cone Woofer
High Frequency Driver
1" Balanced-Dome Tweeter
Enclosure Material
Steel and ABS Resin
Input Connections
Removable Terminal Block w/Screw Terminals, 2 Pairs of +/-
Environmental
Not Specified By Manufacturer
Dimensions
12.3 x 5.0 x 3.5" (312 x 126 x 90mm)
Weight
3.3 lbs (1.5 kg)
Specialties
Not Specified By Manufacturer
