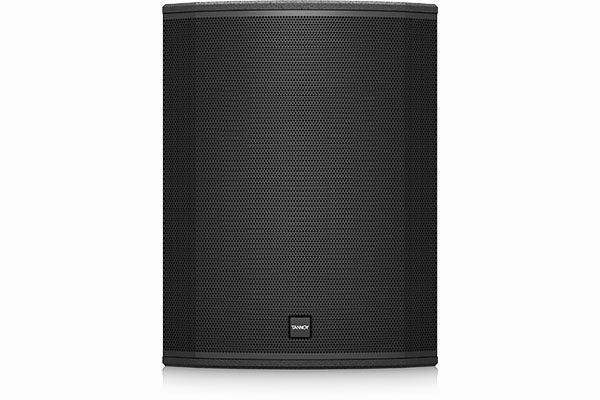

Tannoy VXP 15HP-UL 15" PowerDual Powered Sound Reinforcement Loudspeaker (Black) - TA-VXP15HP-BK
Tannoy VXP 15HP-UL 15" PowerDual Powered Sound Reinforcement Loudspeaker (Black) - TA-VXP15HP-BK is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy VXP 15HP-UL 15" PowerDual Powered Sound Reinforcement L...
VXP 15HP
The 1,600-Watt VXP 15HP is built around a single 380 mm (15") PowerDual driver mounted within a compact, rugged plywood cabinet, and renowned for its exceptional performance and versatility. The latest high power-handling version of TANNOY’s exclusive point source, VXP 15HP’s constant directivity PowerDual technology and LAB GRUPPEN IDEEA Class-D amplification ensure high power output with high sensitivity and exceptional efficiency. The point source driver technology allows this unique configuration to deliver exceptionally smooth beam-width characteristics resulting in an even coverage pattern aiding predictable system design. Symmetrical dispersion characteristics enhance speaker placement flexibility, allowing vertical or horizontal mounting of single or multi-cabinet arrays without any compromise in sound quality. The VXP 15HP is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Features
-
Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
-
1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification
-
15" PowerDual full range driver for point source phase coherence
-
Tightly controlled 75° dispersion for optimum coverage and forward projection
-
Ideal for FOH, floor monitor and side fill applications
-
Switchable full range or high pass filter operation
-
Vented and internally braced plywood enclosure
-
Finished with hard wearing semi matt black paint
-
Rugged powder coated perforated steel mesh grille
-
Blanking plate for optional VTH pole mount
-
Versatile mounting via optional custom designed hardware
-

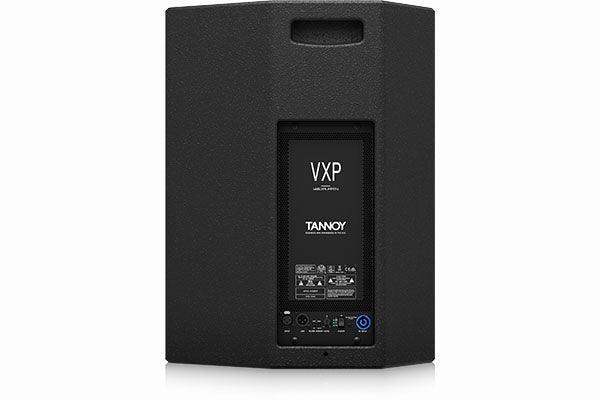

Fully balanced input and link output on Neutrik* XLR connectors
-
Neutrik powerCON* for a secure locking mains power connection
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
System
| Frequency response (Full range mode) |
60 Hz - 25 kHz ±3 dB |
| Frequency response (Hi-pass mode) |
100 Hz - 25 kHz ±3 dB |
| Nominal dispersion |
75° conical @ -6dB point |
| Directivity factor (Q) |
9.7 |
| Directivity index (DI) |
9.9 |
| Dynamic range |
106 dB |
| Maximum SPL |
131 dB peak |
| Crossover type |
Passive 1.3 kHz |
| Transducers |
380 mm (1 x 15'') |
Amplifier
| Maximum output power* |
1600 W |
| Type |
Class-D |
| Protection |
Output current limiter, clip limiter,brownout protection andrecovery, thermal |
Connectors
| Input |
1 x XLR, balanced |
| Input impedance |
10 kO unbalanced,20 kO balanced |
| Maximum input level for clip |
+4.5 dBu (hard clip at |
| Link |
1 x XLR |
| Mains Supply |
Neutrik powerCON 20A† |
Controls
| Level |
Recessed potentiometer |
| Filter |
Hi-pass (HPF)/ full range (FR), switchable |
| Power mode |
Manual (MAN)/ auto (AUTO), switchable |
Power Supply
| Type |
Switch-mode autorange power supply |
| Mains voltage |
100-240 V~, 50/60 Hz |
| Power consumption |
150 W @ 1/8 max power |
Enclosure
| Dimensions (H x W x D) |
591 x 451 x 421 mm ('23.3 x 17.8 x 16.6') |
| Net weight |
27.3 kg (60.1 lbs) |
| Construction |
18 mm (¾ '') plywood, vented andinternally braced |
| Finish |
Semi matt black paint (white optional) |
| Grille |
Powder coated perforated steel |
| Flying hardware |
8 x M10 corner flying inserts 8 x M10 yoke bracket inserts 1 x Integrip carrying handles Blanking plate for optional VTH pole mount |
