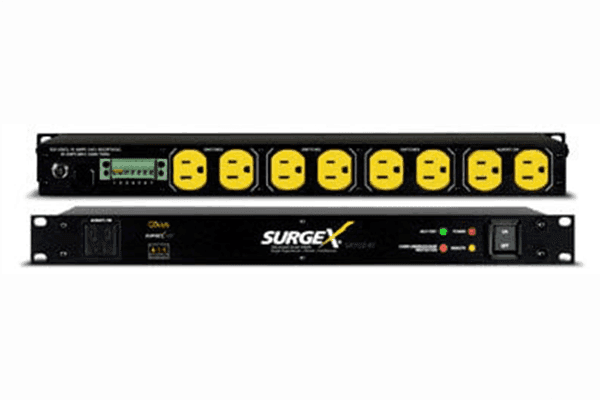

SurgeX SX-1120-RT 8-Outlet Rackmount Surge Suppressor - Power Conditioner
SurgeX SX-1120-RT 8-Outlet Rackmount Surge Suppressor - Power Conditioner is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Description
The SX1120-RT provides guaranteed surge protection and power conditioning for audio, video and computer equipment. The units are 20-amp load-capable and have 8 standard grounded AC receptacles (6 switched, 2 always on) plus a front-panel courtesy outlet.
SurgeX Advanced Series Mode surge suppression technology is superior to conventional MOV circuitry and MOV-hybrid designs. It has zero let-through voltage, provides reliable protection, and stops multiple surges of up to 6,000 volts and unlimited surge current without producing ground contamination or common-mode disturbances.
The units also feature advanced Impedance Tolerant EMI/RFI filtering circuitry for additional power conditioning, and COUVS catastrophic over/ under-voltage shutdown circuitry to prevent damage from brownouts and line-fault events.
The SX1120-RT meets the most demanding government purchase specifications for branch circuit surge suppressors. Its A-1-1 rating means dependable protection from destructive spikes, surges and inductive transients.
Features:
- Made in U.S.A.
- Magnetic shielding steel enclosure
- 9' grounded 3-wire #12 line cord
- 8 grounded AC outlets on rear panel (6 switched, 2 always on)
- Front panel courtesy outlet
- Advanced Series Mode surge protection
- Advanced Impedance Tolerant EMI/RFI filtering
- SurgeX ICE inrush current elimination technology
- COUVS catastrophic over/under-voltage shutdown
- Remote turn-on
- Thermal circuit breaker overload protection
- Self-test circuit with visual indicator
Specifications:
- Load Rating: 20 amps @ 120 volts
- Power Requirement (no load): 15 watts
- Surge Let-Through Voltage (6000-volt surge): 0 volts
- UL 1449 Adjunct Classification Test Results: 1000surges, 6000 volts, 3000 amps, B3 pulse. Measured suppressed voltage: 170 volts, no failures
- Federal Guidelines: Grade A, Class 1, Mode 1 (CIDA-A-55818)
- EMI/RFI Filter, Normal Mode (50-ohm load): 40 dB @100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz
- EMI/RFI Filter, Common Mode (50-ohm load): 18 dB @300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz
- Maximum Applied Surge Voltage: 6000 volts
- Maximum Applied Surge Current: Unlimited, due to current limiting
- Maximum Applied Surge Energy: Unlimited, due to current limiting
- Endurance (C62.41-1991 Category B3 pulses): 1kV>500,000; 3 kV>10,000; 6 kV>1000
- Undervoltage Shutdown: 90 volts (resume at 100 v)
- Overvoltage Shutdown: 145 volts (resume at 135 v)
- Maximum Load Inrush Current During Power-up: 1000 Joules
- Remote Turn-on Applied Voltage Range: 5 to 30 voltsDC
- Remote Turn-on Current Draw:
- * Contact Closure: 3mA
- * 5 V DC Applied Voltage: 1 mA
- * 12 V DC Applied Voltage: 2.5 mA
- * 24 V DC Applied Voltage: 5 mA
- Auxiliary Relay Contact Rating: 30 Volts at 1 Amp
- LED Output: 12 volts DC, maximum 20 mA (resistor required)
- Temperature Range: 5º to 35º C
- Humidity Range: 5% to 95% r.h., non-condensing
- Agency Listings: ETL (UL 1449-2)
- Dimensions (H x W x D): 1.75" x 19" x 10.5" (4.5 x 48.3 x 26.7 cm)
- Weight: 11 lbs. (5 kg)
