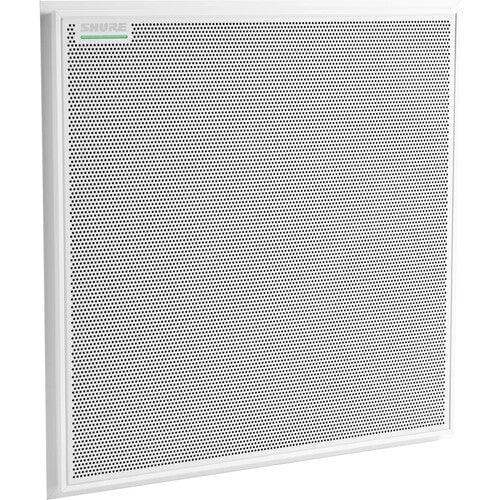

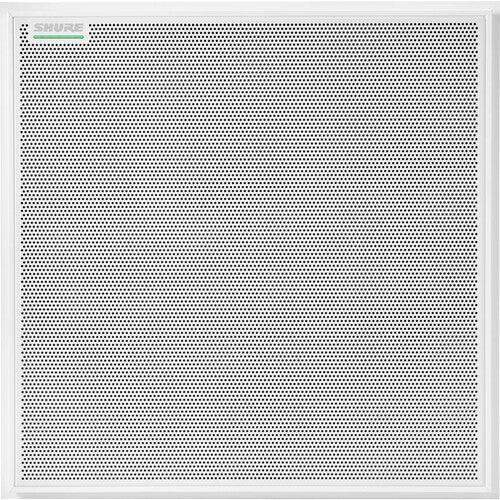

Shure MXA902W-S-60CM-TA Microflex Advance Ceiling Array Microphone & Loudspeaker (60cm, White) (TAA-Compliant)

Shipping calculated at checkout.
Shure  |  SKU: MXA902W-S-60CM-TA

Shipping Now*

Free Ground Shipping on Orders Over $250.00

Please call or email our sales for team for pricing, consultation, and more info

The 60cm, square, white MXA902 from Shure combines a microphone array and loudspeaker in one elegant solution—ready for ceiling installation in boardrooms, meeting spaces, and similar environments. The mic and speaker are designed to cover a 20 x 20' area right out of the box, and the unit requires only a single network connecting cable for power, control data, and encrypted audio.

*The TAA-compliant models are made-to-order with a typical delivery time of 2 to 4 weeks. The additional cost of producing separate model variations is reflected in higher pricing compared to standard SKUs.

Features
  • For Conferencing & Meeting Applications
  • Microphone & Loudspeaker in One Unit
  • Single-Zone Coverage of 20 x 20' Area
  • 1 Cable for Power (PoE+), Audio & Data
  • Supports Dante and AES67
  • Speaker Optimized for Voice Reproduction
  • IntelliMix DSP for Clear, Natural Speech
  • Configurable LED Status Bar, Encryption
  • Fits Standard 60cm Euro Ceiling Tiles

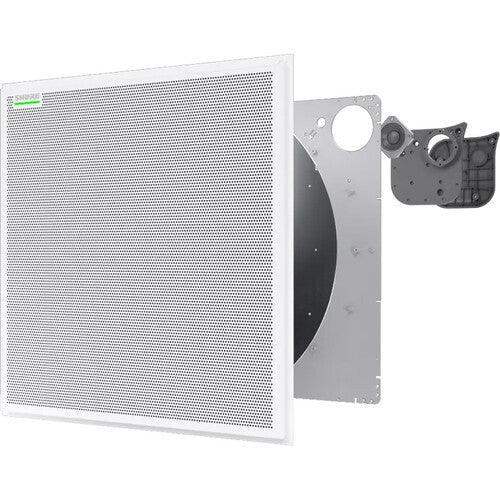

  • Ceiling, Pole, or Wire Rope Suspension
Specs
General
Compatibility
Shure Microflex Advance
Coverage
Coverage Area Size: 20 x 20" / 6.1 x 6.1 m
Microphone
Frequency Response: 125 Hz to 20 kHz
Sensitivity: −1.74 dBFS/Pa (at 1 kHz)
Maximum SPL: 95.74 dB SPL (Relative to 0 dBFS Overload)
Signal-to-Noise Ratio: 75.76 dB A-Weighted (Ref. 94 dB SPL at 1 kHz)
Latency: 26.6 ms (Does Not Include Dante Latency)
Self Noise: 18.24 dB SPL-A
Dynamic Range: 77.5 dB
DSP: Automatic Mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)
Acoustic Echo Cancellation Tail Length: Up to 250 ms
Speaker
Frequency Range (−10 dB): 120 Hz to 20 kHz
Maximum Output Level at 3.3' / 1 m
Pink Noise: 86 dB SPL
1 kHz Sine Tone: 88 dB SPL
Coverage Angle: 80° (Average of 1 Octave Band Centered on 4 kHz)
DSP: Delay, Compressor, Signal Generator, Equalizer (4-Band Parametric)
Latency: 6.3 ms (Not Including Dante Latency)
Inputs / Outputs
Audio I/O
1x RJ45 Input/Output
Digital
Microphone
AES67 or Dante Digital Output
Channel Count: 1 Output Channel
Sampling Rate: 48 kHz
Loudspeaker
AES67 or Dante Digital Input
Channel Count:2 Input Channels
Bit Depth: 24
Power
Power Source
PoE
Power Consumption
24 W (Maximum)
Environmental
Certifications
REACH, FCC, WEEE, CE, UKCA, ICES-003, PlenumUL2043
Operating Temperature
20 to 104°F / -6 to 40°C
Storage Temperature
-20 to 165°F / -28 to 73°C
Physical
Color
White
Dimensions
23.4 x 2.21" / 593.8 x 56.04 mm
Weight
12.7 lb / 5.8 kg
